- Page 1 K-Systems ® Warming Plate T45/T47 User Manual +45 46 79 02 02 | sales@coopersurgical.com | fertility.coopersurgical.com 1639 CooperSurgical, Inc. 95 Corporate Drive, Trumbull, CT 06611, USA Document K33083(2) | DRF 5384 | 10 November 2020...
-
Page 3: Table Of Contents
CooperSurgical, Inc. Contents CONTENTS SECTION 1 – PREFACE Copyright SECTION 2 - SAFETY WARNINGS Glossary of Safety/Information Symbols SECTION 3 - PRODUCT OVERVIEW Unpacking and Inspection Accessories Optional Equipment Intended Use General Description SECTION 4 - BASIC OPERATION Features and Operation... - Page 4 Contents CooperSurgical, Inc. CONTENTS St.St Heat A-ST Hour Rest SECTION 6 - CARE AND MAINTENANCE Cleaning Preparation at the Point of Use Periodic Cleaning Disinfection Drying Calibration Disposal of electrical and electronic equipment. SECTION 7 - TROUBLESHOOTING SECTION 8 - TECHNICAL DATA...
-
Page 5: Section 1 - Preface
CooperSurgical, Inc. Users of K-SYSTEMS CooperSurgical, Inc products should not hesitate to contact us if there are any unclear points or ambiguities in this manual. -
Page 6: Section 2 - Safety Warnings
In accordance with Low Voltage Directive 2014-35-EU CooperSurgical.com 0120 Consult instructions for use - coopersurgical.com Hard copies available on request Indicates the need for the user to consult the instructions for use for important cautionary information such as warnings and precautions that cannot, for a variety of reasons, be presented on the medical device itself. -
Page 7: Section 3 - Product Overview
Mains Cable Order code: 1212807 Optional Equipment Optional equipment consists of a range of warming blocks. Please contact your local CooperSurgical distributor or CooperSurgical, Inc. for details about the full range of warming blocks. Examples of different types of warming blocks... -
Page 8: Intended Use

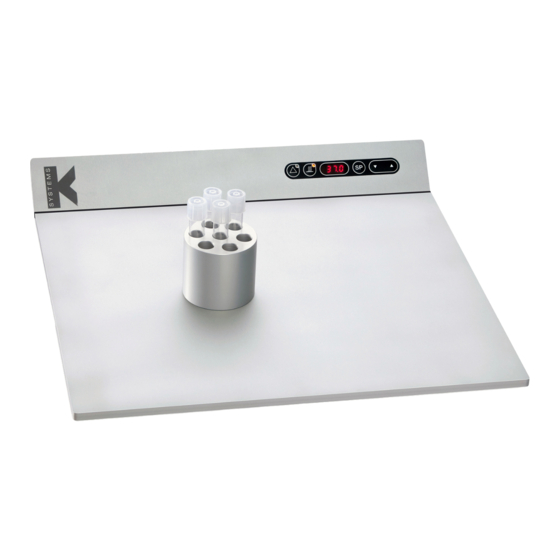

Product Overview CooperSurgical, Inc. Intended Use The K-SYSTEMS CooperSurgical, Inc. T45/T47 Warming Plate is designed to maintaining a stable temperature of test tube/syringe, warming blocks or similar, or for warming media. General Description The anodized aluminium surface maintains a set-point temperature in the range ambient to 42.0°C. -
Page 9: Section 4 - Basic Operation
Features and Operation Assembling the T45/T47 No assembly needed. Just follow directions below and the unit is ready for use. The warming plate has been adjusted and calibrated to 37°C by CooperSurgical. See enclosed certificate. Connection to the Mains The mains voltage is automatically regulated to the correct level by the main adapter (PSU). -
Page 10: Temperature Setting And Control
Section 4 Basic Operation CooperSurgical, Inc. Temperature Setting and Control The display indicates the average temperature of the surface. Action Press set-point key until set temperature is reached. Press and hold set-point key. While holding the set-point key in, press either the arrow UP or arrow DOWN key to raise or lower the set temperature. -
Page 11: Warming Up
Section 4 CooperSurgical, Inc. Basic Operation Warming Up Warming up from 20.0°C to set point takes under normal conditions less than 30 minutes. When a cold item is placed on the heated area, it may need up to 40 minutes to stabilize, depending on the thermal mass of the object and the initial temperature. -
Page 12: Section 5 - Menu Function
Section 5 Menu Function CooperSurgical, Inc. SECTION 5 - MENU FUNCTION The user can access a number of advanced functions via the menu. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. The first option “UNIT” will appear in the display. -
Page 13: Overview Of Options
Section 5 CooperSurgical, Inc. Menu Function Overview of Options ˚C Send UNIT Version 3 ˚F RS232 Off +0.05 TUNE -0.05 Calib. value +0.1 INT.T -0.1 M + 1 Ti.St H + 1 M + 1 St.St H + 1 HEAT Off... -
Page 14: Unit
Section 5 Menu Function CooperSurgical, Inc. Unit In the UNIT option the displayed temperature unit can be set to either degrees Celsius or Fahrenheit. Follow these steps to navigate in the UNIT option. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. -
Page 15: Rs232
Section 5 CooperSurgical, Inc. Menu Function RS232 The RS232 output was intended for data-logging and third-party monitoring, but is no longer supported by CSI. The steps below are provided for reference only. Follow these steps to navigate in the RS232 option. -
Page 16: Tune
Note: Any change in the factory set calibration should always be based on very certain temperature measurements. CooperSurgical only recommends the use of a high quality PT-100 sensor that is calibrated with the precision instrument used for measuring according to the manufacturers specifications. -
Page 17: Ti.st
Section 5 CooperSurgical, Inc. Menu Function TI.St The Ti.St (Time Set) option is for setting the time. Follow these steps to navigate in the Ti.St option. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. -
Page 18: St.st
Section 5 Menu Function CooperSurgical, Inc. St.St The St.St (Start Set) option is the timer function for the heat. By using this option, time can be saved as the T45/T47 can be ready for use before procedures start in the morning. -
Page 19: Heat
Section 5 CooperSurgical, Inc. Menu Function Heat The HEAT option is used for the heater to turn on at a certain time. Note: This function only works in conjunction with St.St. If St.St is set to 8.00 and heat function is on, the heater will automatically turn on at 8.00 using 24 hour clock. -
Page 20: A-St
Section 5 Menu Function CooperSurgical, Inc. A-ST The A-St (Automatic Start) option is used to repeat the timer (St.St) function every day of the week. Note: This function works in conjunction with St.St and HEAT. If St.St.is set to 8.00 and heat function is on, the heater will automatically turn on at 8.00 every day. -
Page 21: Hour
Section 5 CooperSurgical, Inc. Menu Function Hour The HOUR option gives the opportunity to show the time on the display when the heat is off. Follow these steps to navigate in the HOUR option. Action Display Press and hold UP+DOWN key for 3 seconds to enter the menu. -
Page 22: Rest
Section 5 Menu Function CooperSurgical, Inc. Rest The REST function will restore all factory set values. Any changes made to the displayed temperature, unit readings and controller value will be reset. Note: Calibration value in the TUNE option will remain and not be reset. -
Page 23: Section 6 - Care And Maintenance
Repeating drying steps if any moisture is visible. Note: If water gets inside the equipment, contact your CooperSurgical representative to check electrical safety. Calibration For optimal performance the unit should be calibrated once a year by authorized CooperSurgical Service provider. -
Page 24: Disposal Of Electrical And Electronic Equipment
Care and Maintenance CooperSurgical, Inc. Disposal of electrical and electronic equipment. CooperSurgical have taken the necessary steps to comply with the EC directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Environmental implications: WEEE contains materials that are potentially hazardous to the environment and to human health. Therefore, when this instrument has reached its end of life it must be collected and recycled separately from other waste according to national requirements. -
Page 25: Section 7 - Troubleshooting
Section 7 CooperSurgical, Inc. The use of tubes or dishes SECTION 7 - TROUBLESHOOTING Symptom Cause Action Temperature more than ±0.5°C Check the set temperature. Wait Temperature alarm is on. from set temperature. for the temperature to stabilize. No heating. -
Page 26: Section 8 - Technical Data
Section 8 Technical Data CooperSurgical, Inc. SECTION 8 - TECHNICAL DATA Material Aluminium Aluminium Weight (without PSU and BLOCK) 2,4Kg 5,2Kg Overall dimensions (WxDxH) 356 x 282 x 62mm 470 x 460 x 62mm Warmed surface area (WxD) 356 x 220mm... -
Page 27: Section 9 - Warranty Information And Limits On Liability
CooperSurgical warrants that the T45/T47 will be free from defects in materials and workmanship for one year from the date of initial purchase. If CooperSurgical determines that a workstation fails to conform to that warranty during the one-year warranty period, CooperSurgical will, as the sole remedy for that failure to conform, repair or replace that workstation, at CooperSurgical’s... -
Page 28: Section 10 - Returning Product
Section 10 Returning Product CooperSurgical, Inc. SECTION 10 - RETURNING PRODUCT Please refer to the ‘Troubleshooting’ section in this manual before returning product to CSI. If the problem continues, please follow these instructions: Returned Goods Policy Goods will be accepted for return for the following reasons: •... -
Page 29: Customer Service Contact Details
Section 10 CooperSurgical, Inc. Returning Product Customer Service Contact Details: Tel: +45 46 79 02 02 Fax: +45 46 79 03 02 E-mail: sales@coopersurgical.com fertility.coopersurgical.com US Only Customers Contact Details: Tel: 800-243-2974 Fax: 800-262-0105 fertility.coopersurgical.com... -
Page 30: Section 1 1 - Customer Service Contact Information
Section 11 Customer Service Contact Information CooperSurgical, Inc. SECTION 1 1 - CUSTOMER SERVICE CONTACT INFORMATION European Service Representatives ORIGIO a/s Knardrupvej 2 2760 Måløv Denmark Tel: +45 46 79 02 02 Fax: +45 46 79 03 02 New Purchases: E-mail: sales@coopersurgical.com...
