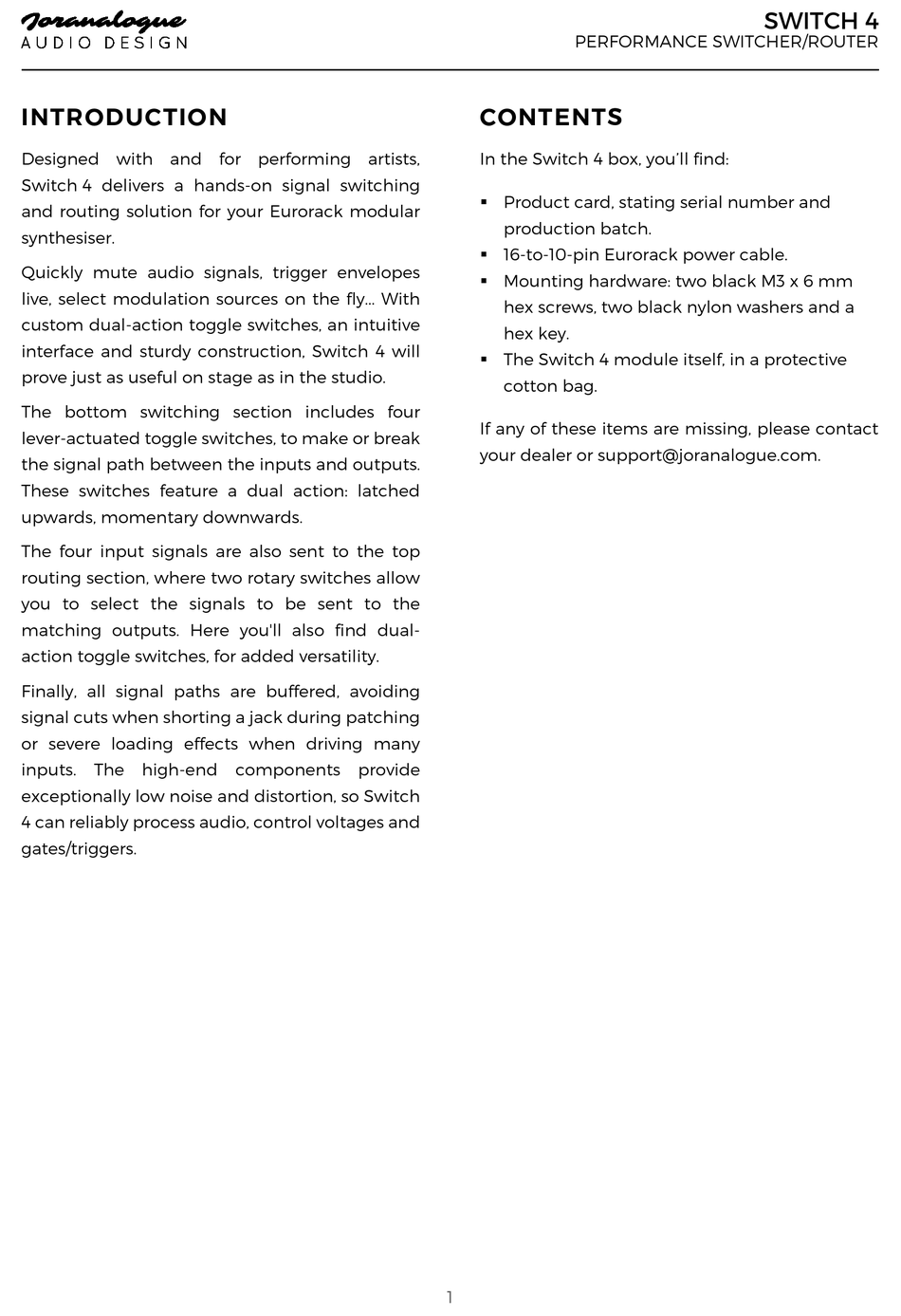

Joranalogue Switch 4 Manual

INTRODUCTION
Designed with and for performing artists,
Switch 4 delivers a hands-on signal switching
and routing solution for your Eurorack modular
synthesiser.
Quickly mute audio signals, trigger envelopes
live, select modulation sources on the fly... With
custom dual-action toggle switches, an intuitive
interface and sturdy construction, Switch 4 will
prove just as useful on stage as in the studio.

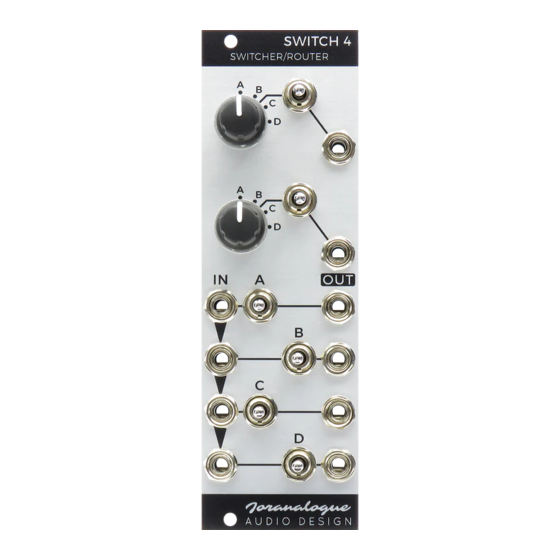

The bottom switching section includes four
lever-actuated toggle switches, to make or break
the signal path between the inputs and outputs.
These switches feature a dual action: latched
upwards, momentary downwards.
The four input signals are also sent to the top
routing section, where two rotary switches allow
you to select the signals to be sent to the
matching outputs. Here you'll also find dual-
action toggle switches, for added versatility.
Finally, all signal paths are buffered, avoiding
signal cuts when shorting a jack during patching
or severe loading effects when driving many
inputs. The high-end
exceptionally low noise and distortion, so Switch
4 can reliably process audio, control voltages and
gates/triggers.
components provide
PERFORMANCE SWITCHER/ROUTER
CONTENTS
In the Switch 4 box, you'll find:
 Product card, stating serial number and
production batch.
 16-to-10-pin Eurorack power cable.
 Mounting hardware: two black M3 x 6 mm
hex screws, two black nylon washers and a
hex key.
 The Switch 4 module itself, in a protective
cotton bag.
