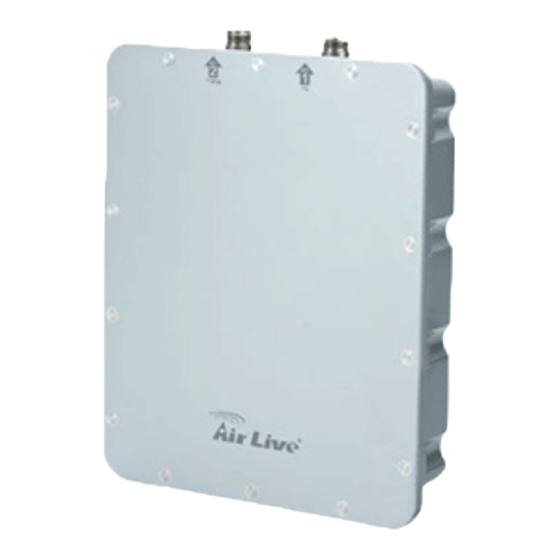

AirMax DUO PPPoE Server Configuration Example
In this exercise, we will setup 2 PPPoE Server Accounts in AirMax DUO

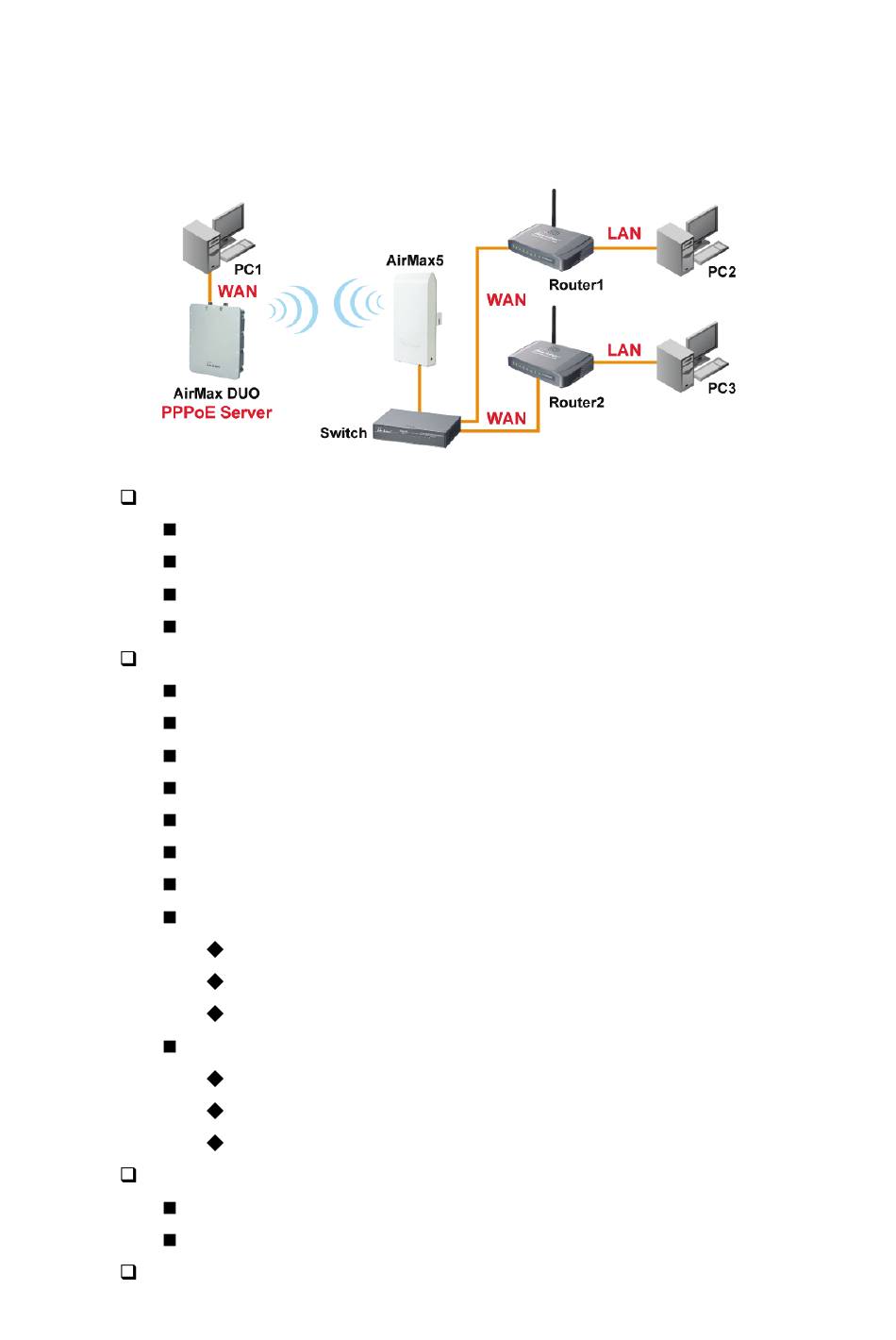

according to the Topology Diagram below.
PC1
IP address: 192.168.20
Subnet mask: 255.255.255.0
Default gateway: 192.168.20.1
DNS server: 192.168.20.1
AirMax DUO
SSID: pppoe
WAN IP address: 192.168.20.1
LAN IP address: 192.168.1.20
PPPoE Server Local IP Address: 192.168.1.20
PPPoE Server Remote Starting IP: 192.168.1.100
PPPoE Server Remote End IP: 192.168.1.200
PPPoE Server One User Per Account: Disable
PPPoE Account1
PPPoE Account2
AirMax5
Bridge Infrastructure Mode
IP: 192.168.1.50
Router1
Username: user1
Password: user1
Assign IP: 0.0.0.0
Username: user2
Password: user2
Assign IP: 192.168.1.30
