Channel Vision VC-302 Instructions Manual page 2

The VC-302 is an impedance matching volume control with an IR receiver
knockout. The knockout allows Channel Vision's IR-2400 to be
integrated with the volume control for applications that require IR
repeating. The VC-302 comes with white, ivory, and almond knobs and
face plates to easily match other wall plates in the room.
Features:
Protects your amplifier against low impedance loads
!
Knockout for mounting Channel Vision's IR-2400
!
Supports up to 8 pairs of speakers
!
Fits in a single-gang low-voltage ring or open-back j-box
!
! Supports 14 - 20 AWG speaker wire
Input... Speaker wire connections
from your amplifier
Output... Speaker wire
connections to your speakers
2

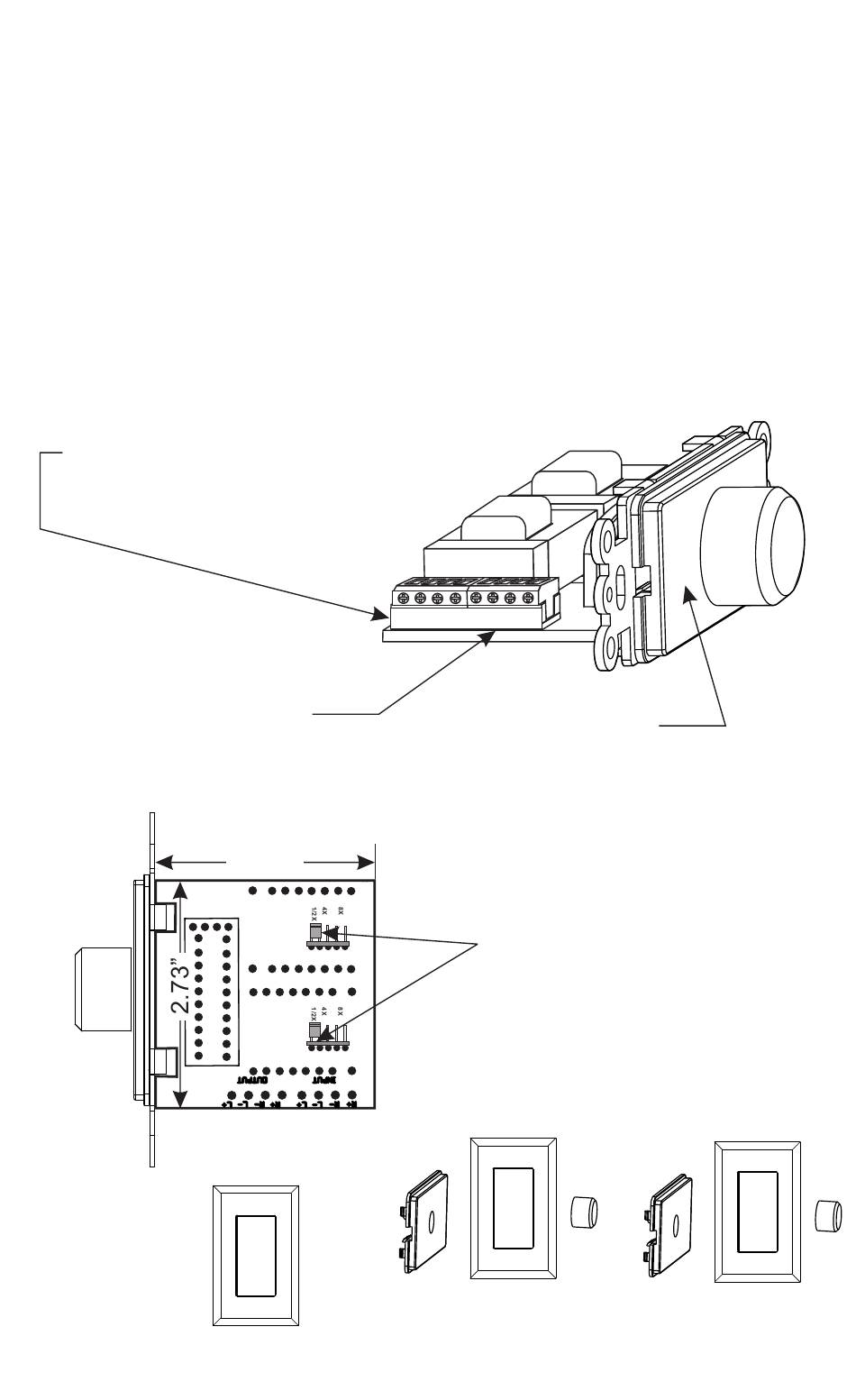

Side View
2.63"
White (included)
R+ R- L- L+ R+ R- L- L+
INPUT OUTPUT
IR knockout...
Not visible from the front
Note: This product must be installed in
either an open ring or an extra-deep box.
Impedance Matching Jumpers
Accessories
Ivory & Almond conversion
kits sold separately
Ivory
VC-3IV
Bottom View
Almond
VC-3AL
