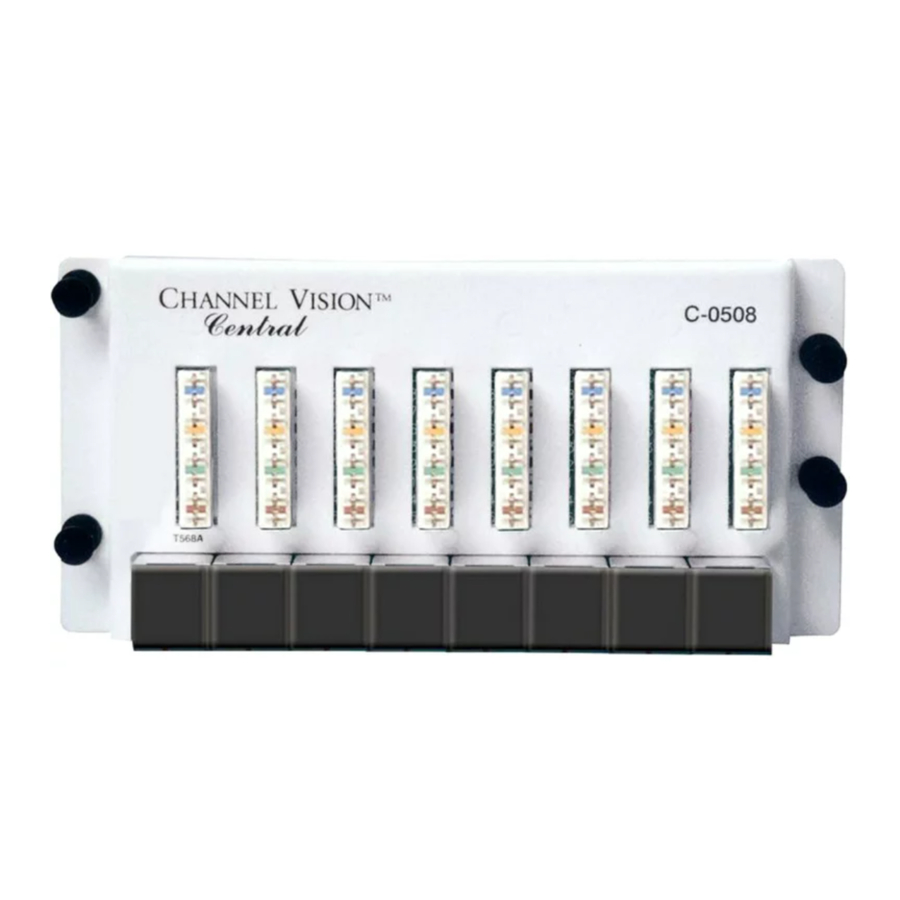

Channel Vision Central, C-0508 - Data Termination Module Manual
Installation
- Use RJ45 jumper cables to connect your data router or switch to the C-0508.
- Punch down as many as 8 Cat5 data lines on the 110 punch down connectors.
- Connect the data wall plates in each room (see diagram).
- Connect computer(s) to wall plate(s).
Features
Compact Design
Simple connections
Provides 8 data terminations
Specifications
| 110 connectors: | 8 |
| RJ45 connectors: | 8 |
| Dimensions: | 3.0"L x 6.38" W x 1.75" D |
234 FISCHER AVENUE
COSTA MESA, CA 92626
(714) 424-6500 • (800) 840-0288
(714) 424-6510 fax
www.channelvision.com
email: sales@channelvision.com
