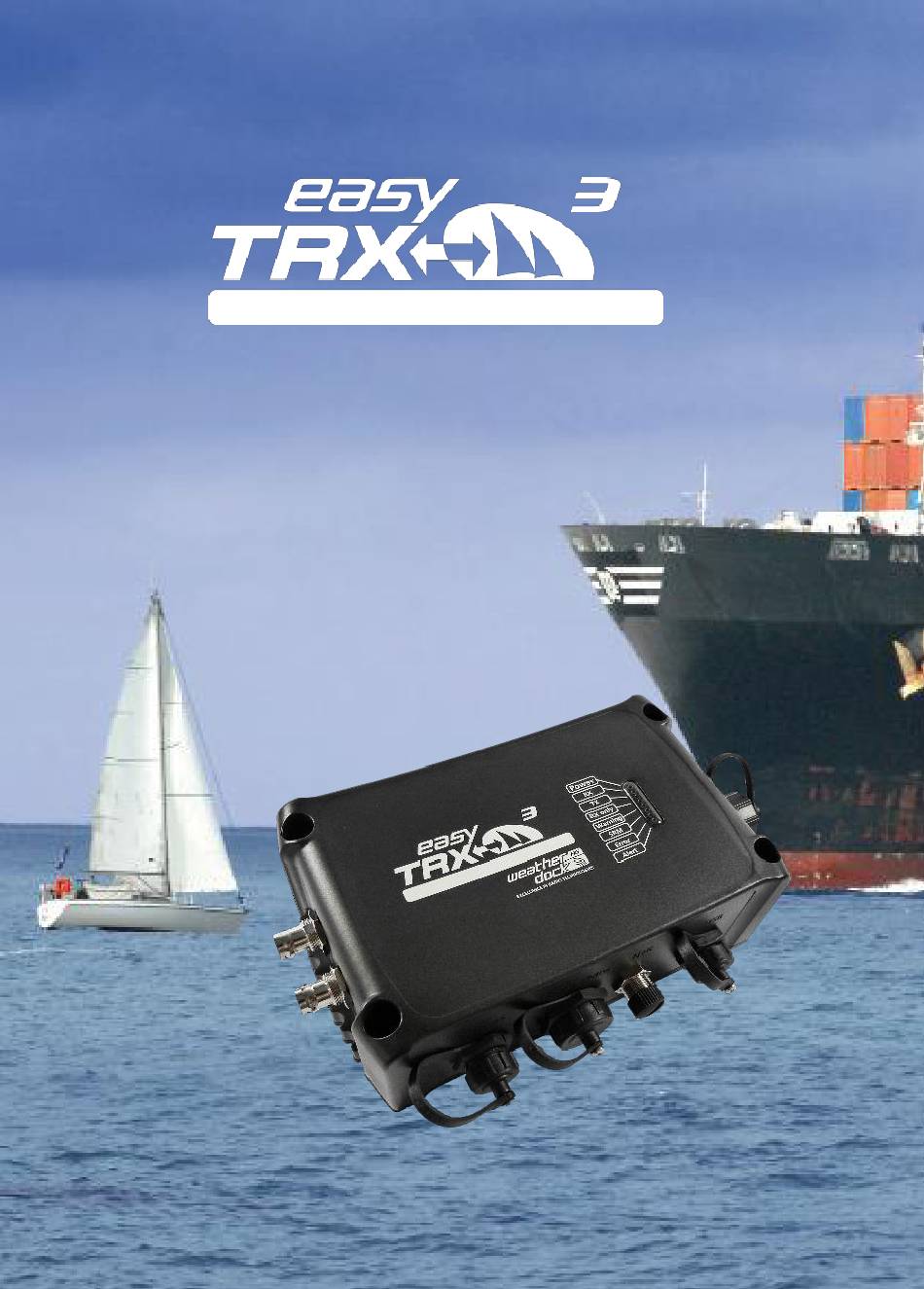

- Page 1 AIS Class B SOTDMA Quick Instruction V 1.2 English...
-
Page 2: General Information
By mistaken conduct of the operator of a ship equipped with a device from the easyTRX3 product line if the operator does pay undivided attention to operation and surrounding condition damage or personal injury may be caused in the event of an accident. -
Page 3: Scope Of Delivery
2 Scope of Delivery easyTRX3 – AIS Class B Connection Cable 18 pins / Power Connection Cable easyTRX3 to VHF Radio USB-Cable Quick Instruction WiFi-Antenna (optional) Screws for mounting Weatherdock AG Page 3... -
Page 4: Initial Operation
Start Software and connect to easyTRX3 (Host IP and Port on back side label of easyTRX3) 3. Program vessel data into easyTRX3 (MMSI, call sign, etc. …) Via WiFi connection to mobile device: Connect power Supply (12/24V DC) to easyTRX3 Download App “easyTRX3-Manager”... - Page 5 5 Mounting • In case of inside mounting the easyTRX3 has to be mounted above sea level • Due to the protection class IP68 the easyTRX3 can also be mounted outside • The safety distance of min. 40cm shall be kept to other technical devices and compass •...
- Page 6 6 Connectors (Standard & optional) Weatherdock AG Page 6 www.easyAIS.com...
- Page 7 The included 18 pin cable harness is ready for: For more description of functionality: see User Manual Further Connections: VHF Antenna (SO239) Connection Plug for VHF Antenna or AIS Antenna VHF Radio (TNC) Connection Plug for VHF Radio Weatherdock AG Page 7 www.easyAIS.com...
- Page 8 GPS source is not needed with GRP or wooden fuselage vessels By using external GPS antenna: Passive antenna, immediate plugged to the easyTRX3 GPS data forwarded in NMEA0183 from chart plotter is not capable for AIS data reception – can’t be...
-
Page 9: Led Status Indication
7 LED status indication Green Power Supply “POWER“ Green AIS Reception Green AIS Transmission Yellow RX only “Silent Mode“ Yellow Warning Yellow Safety Related Messages Error Yellow SART Alert Weatherdock AG Page 9 www.easyAIS.com... -
Page 10: Technical Data
3x NMEA0183 IN Interfaces 3x NMEA0183 OUT NMEA2000 18 pin plug NMEA2000 socket Connections (standard version) external GPS antenna (BNC) VHF antenna connection (SO239) VHF connection (TNC) Data type NMEA output Options WiFi, DVB-T2, DAB+ Weatherdock AG Page 10 www.easyAIS.com... - Page 11 -114dBm 25kHz (<20% PER) Co-channel rejection 10dB Adjacent channel rejection 70dB Intermodulation 65dB Blocking 84dB Certifications AIS Standards IEC 62287-2:2017 Environmental IEC 60945:2002 + Corr.1:2018 GPS Performance IEC 61108-1:2003 EN 60950-1:2006 Product Safety ITU-R M.1371-5 BSH approval BSH/4542/001/4323246/18 Weatherdock AG Page 11 www.easyAIS.com...
- Page 12 Emmericher Strasse 17 90411 Nürnberg – Germany +49 (0)911 – 37663830 info@weatherdock.de support@weatherdock.de www.easyais.com Weatherdock AG Page 12 www.easyAIS.com...
