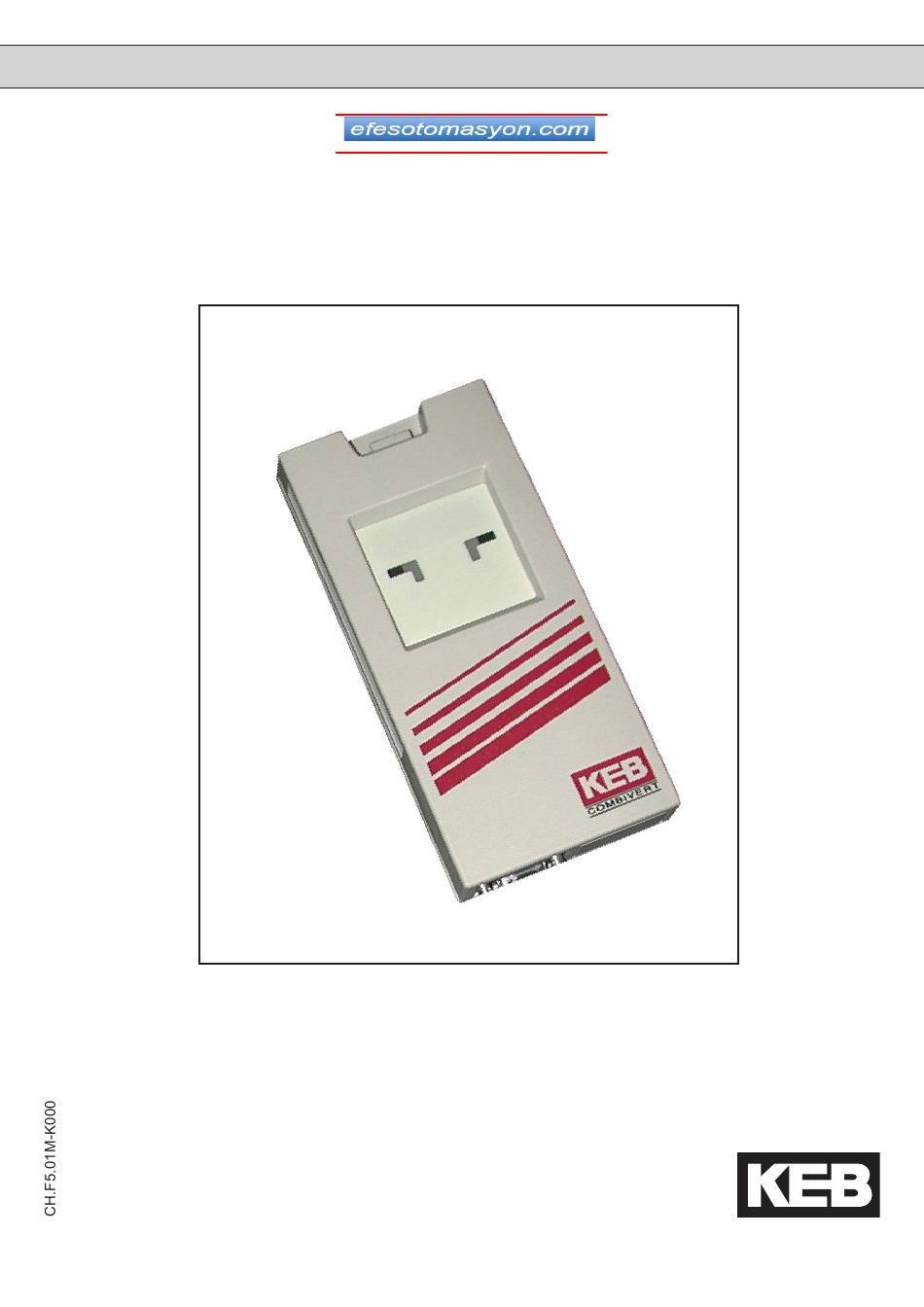

- Page 1 BETRIEBSANLEITUNG INSTRUCTION MANUAL KEB COMBICOM HSP5/485-Operator 1/2004...
- Page 2 Seite D - 3 ..D - 6 Seite GB - 3 ..GB - 6...
- Page 3 HSP5/485 Operator Content Summary ..............4 Plug-in Version ............4 Screw-in Version ............5 Mounting Dimension ........... 6...
-
Page 4: Summary
The HSP5/485 operator serves for cable extension between a F5 inverter/servo and any apart mounted F5 standard or field bus operator. The signals in the HSP5/485 operator are converted to a reliable RS485 level and transported with the corresponding cable up to maximal 100 meters.The other side of the cable contains the necessary... -
Page 5: Screw-In Version
HSP5/485 Operator Screw-in Version The screw-in variant consists of the HSP5/485 operator 00.F5.060-9001 and a cable 00.F5.0C0-3xxx. HSP5 interface HSP5 operator of the operator 00.F5.060-9001 Special cable with converter in the plug connector! Cable color Terminal Standard or white fieldbus operator brown Cable: 00.F5.0C0-3xxx... -
Page 6: Mounting Dimension
HSP5/485 Operator Mounting dimension The following cutouts and drillings are necessary for the installation of the standard/ field bus operator in a control cabinet door:... - Page 8 Karl E. Brinkmann GmbH Försterweg 36-38 • D-32683 Barntrup fon: +49 5263 401-0 • fax: +49 5263 401-116 net: www.keb.de • mail: info@keb.de KEB Antriebstechnik GmbH & Co. KG KEB - YAMAKYU Ltd. Wildbacher Str. 5 • D–08289 Schneeberg 15–16, 2–Chome, Takanawa Minato-ku fon: +49 3772 67-0 •...
