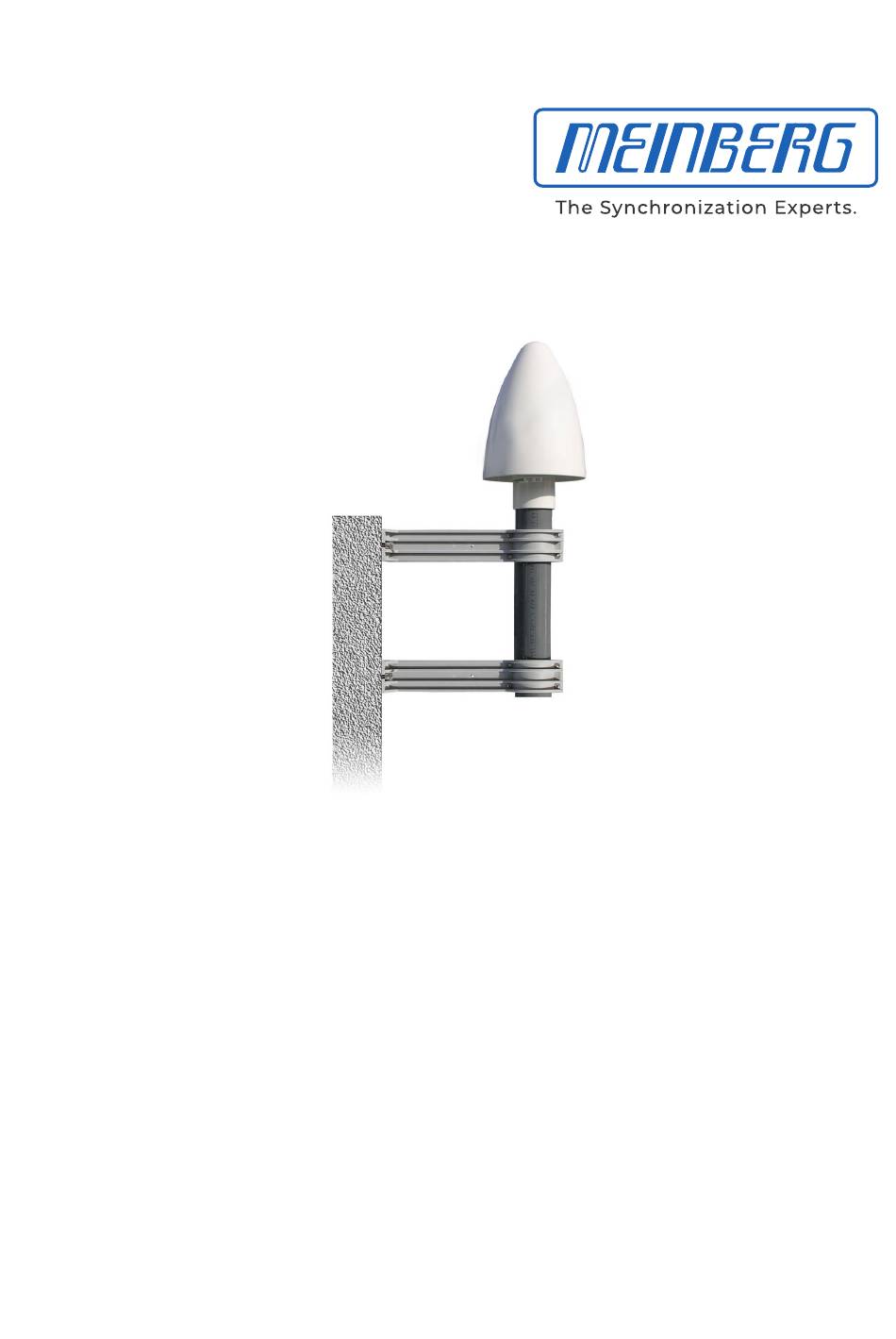

- Page 1 MANUAL GPS Antenna Antenna / Converter Unit 12th June 2020 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
Table of Contents 1 Imprint 2 Safety Hints Antenna 3 Before you start Scope of delivery ..........Disposal of Packaging Materials . -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Safety Hints Antenna
2 Safety Hints Antenna WARNING! DANGER TO LIFE BY ELECTRICAL SHOCK! Make sure to comply with the occupational health and safety standards when installing the antenna. Never work without a proper fall protection device! Do not carry out any installation or maintenance work on the antenna system or cabling when there is a potential risk of lightning. -
Page 6: Before You Start
Carefully unpack the system and all accessories and put them aside. Check the scope of delivery with the pack- ing list to ensure that no parts are missing. If any of the listed contents are missing, please contact Meinberg Funkuhren. -
Page 7: Disposal Of Packaging Materials
3.2 Disposal of Packaging Materials The packaging materials we use are fully recyclable: Material Use for Disposal ———————————————————————————————————————— Polystyrol packaging frame/filling material Recycling Depot (polystyrene peanuts, bubble wrap) PE-LD accessories packaging Recycling Depot Polyethylene low density Cardboard shipping packaging, Paper recycling accessories packaging ————————————————————————————————————————... -
Page 8: Installation Gps Antenna
4 Installation GPS Antenna 4 Installation GPS Antenna WARNING! Antenna mounting without effective anti-fall protection Danger to life due to fall! - Pay attention to effective working safety when installing antennas! - Never work without an effective anti-fall equipment! WARNING! Working on the antenna system during thunderstorms Danger to life due to electrical shock! - Do not carry out any work on the antenna system or the antenna cable... - Page 9 Antenna Mounting Mount the antenna at a distance of 50 cm from other Free view to the sky! antennas to a vertical pole up to 60 mm outer diameter or on a wall with the mounting kit included in the scope of delivery.
- Page 10 4 Installation GPS Antenna Earth cable to PE rail To ground the antenna cable, connect the surge Cable circa 1,5 mm Ø protection with a grounding cable to a equipotential attached to the surge protection bonding rail (see figure). After installation, connect the other end of the as short as possible antenna cable to the socket of the surge protection.
- Page 11 Antenna splitter option Several receivers can be connected to one antenna via the antenna splitter. Make sure, that the total length of a route going from the antenna via the splitter to the receiver, does not exceed the maximum cable length. The splitter may be installed at any position between the surge protector and the receiver.
-
Page 12: Technical Specifications Gps Antenna
5 Technical Specifications GPS Antenna 5 Technical Specifications GPS Antenna Physical Dimensions: GPS Antenna Date: 12th June 2020... - Page 13 Specifications: Power supply: 15 V, 100 mA (provided via antenna cable) Receive frequency: 1575.42 MHz Bandwidth: 9 MHz Frequencies: Mixed frequency 10 MHz IF frequency: 35.4 MHz Connector: N-Norm female connector Form factor: ABS plastic case for outdoor installation Protection class: IP66 Humidity: Temperature range:...
-
Page 14: Antenna Cable
5 Technical Specifications GPS Antenna 5.1 Antenna Cable: Cable type Cable (mm/in) Attenuation at 100 MHz max. Cable lenght (m/ft) used for receiver type (db)/100m/328ft RG58/CU 5/0.2 300/984 GPS/GNS-UC/PZF RG213 10,3/0.41 700/2297 GPS/GNS-UC H155 5,4/0,21 70/230 GNM/GNS H2010 Ultraflex 7,3/0,29 150/492 GNM/GNS Further values can be found in the data sheet of the cable used. -
Page 15: Mbg S-Pro - Technical Specifications
5.3 MBG S-PRO - Technical Specifications Attachment plug with replaceable gas discharge tube for coaxial signal interfaces. Connection: N connector female/female. The MBG S-PRO set includes a surge voltage protector (Phoenix CN-UB-280DC-BB), a pre- assembled coax cable and a mounting bracket. The surge voltage protector for coaxial lines has to be installed in the antenna line. - Page 16 5 Technical Specifications GPS Antenna Max. discharge current (8/20) s maximum (Core-Shield) 20 kA Nominal pulse current (10/1000) s (Core-Shield) 100 A Impulse discharge current (10/350) s, peak value I 2,5 kA Output voltage limitation at 1 kV/ s (Core-Earth) spike 900 V at 1 kV/ s (Core-Earth) spike 900 V...
-
Page 17: Mbg S-Pro - Physical Dimensions
5.3.1 MBG S-PRO - Physical Dimensions 15,8 5.3.2 Installation and Grounding Date: 12th June 2020 GPS Antenna... -
Page 18: Eu Declaration Of Conformity
6 EU Declaration of Conformity 6 EU Declaration of Conformity Konformitätserklärung Doc ID: GPSANT - GPS Antenna/Converter Unit-2020-06-04 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
