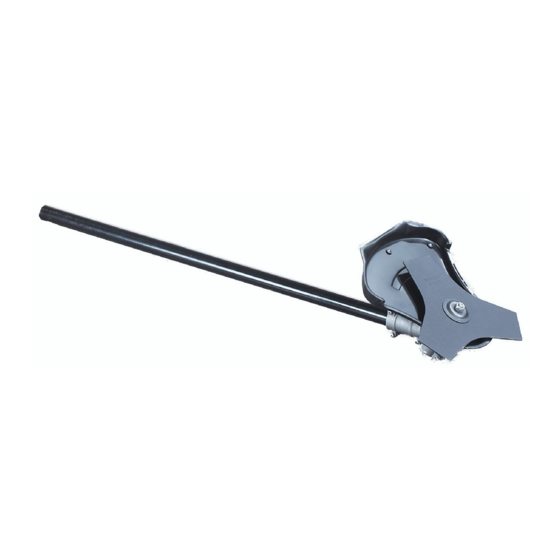

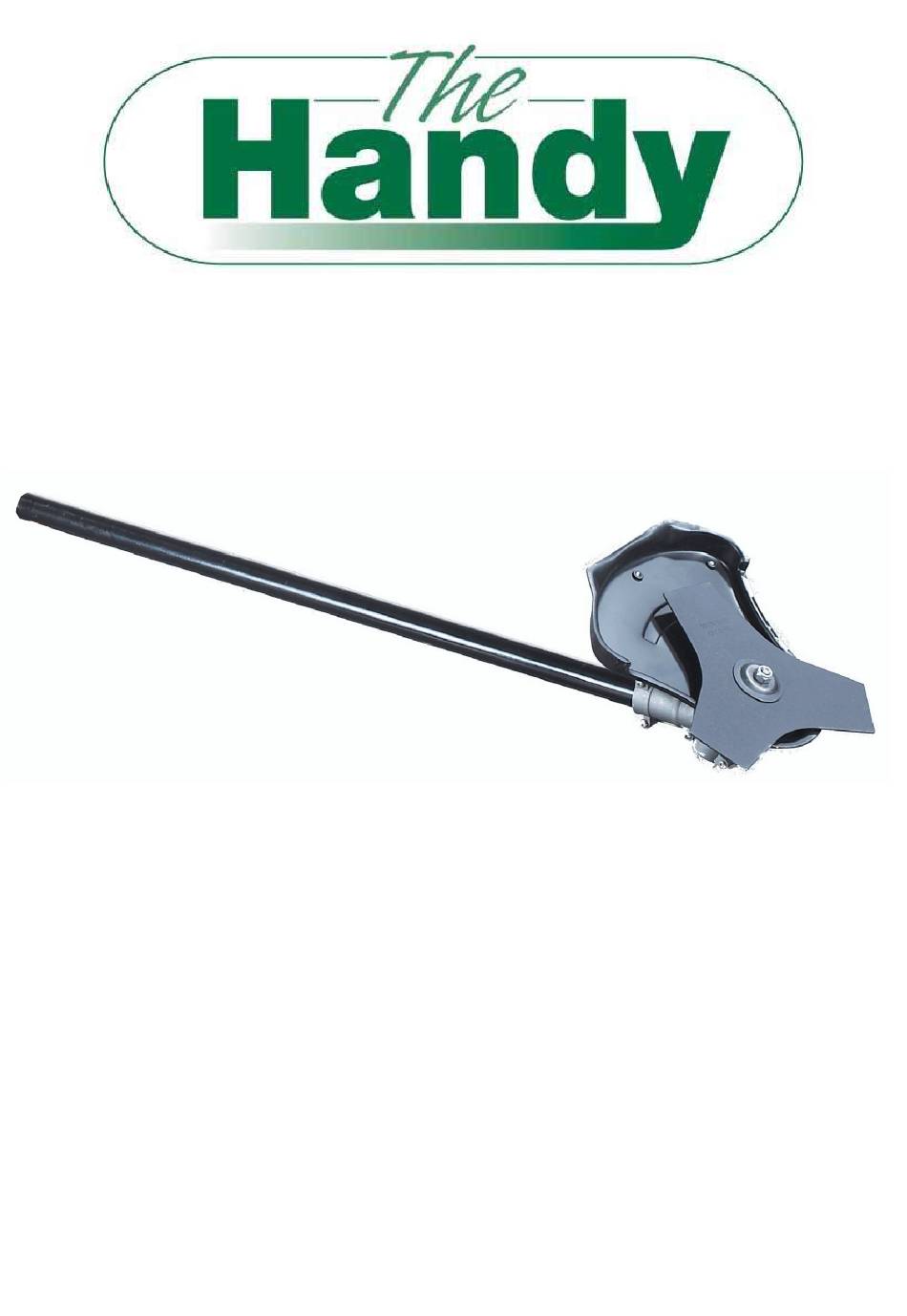

- Page 1 OPERATOR’S MANUAL AND PARTS LIST BRUSHCUTTER ATTACHMENT FOR MULTI TOOL - THBCATT Spares & Support: 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 24/07/2013...
- Page 2 SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. • Use sturdy footwear and a helmet with eye and ear protection. Protect exposed parts of your body.
- Page 3 PARTS DIAGRAM AND LIST - BRUSHCUTTER (THBCATT) Part No Description TH130-1 Shield TH130-2 Flat Washer TH130-3 Spring Washer TH130-4 Screw TH130-5 Blade Boss Outer TH130-6 Nut Cover TH130-7 Lock Nut (Left Hand) TH130-8 Blade Boss Inner Page 3...
- Page 4 ASSEMBLY Brushcutter Attachment: Fig. 1 Remove the Blade Nut, this nut has a left hand thread so should be turned clockwise to undo it. Fig. 2 Remove the Cupped Washer, Clamp Washer and Flanged Washer. Fig. 3 Remove the 3 Blade Guard Screws with the Allen key. Fig.
- Page 5 OPERATION Operating the Brushcutter: • Operate the throttle trigger with your right hand and hold the barrier handle with your left hand. • Always keep a firm grip with both hands during operation. • The brushcutter should be held at a comfortable position with the trigger handle about hip height.
- Page 6 ALSO AVAILABLE FROM HANDY THPATT Pruner Attachment Easily attachable to your existing power unit, giving you a long reach pruner • that is perfect for those out of the way pruning jobs on trees or shrubs. Will fit Handy, Mowerland, Ryobi, Flymo, McCulloch and Partner machines. •...
- Page 7 GUARANTEE This product is guaranteed against manufacturing defects for a period of 12 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations.
- Page 8 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
