ASROCK athena A2 Quick Installation Manual

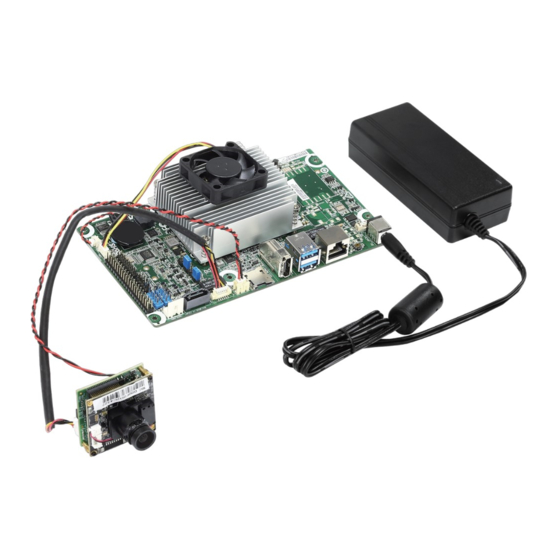

athena A2 Kit

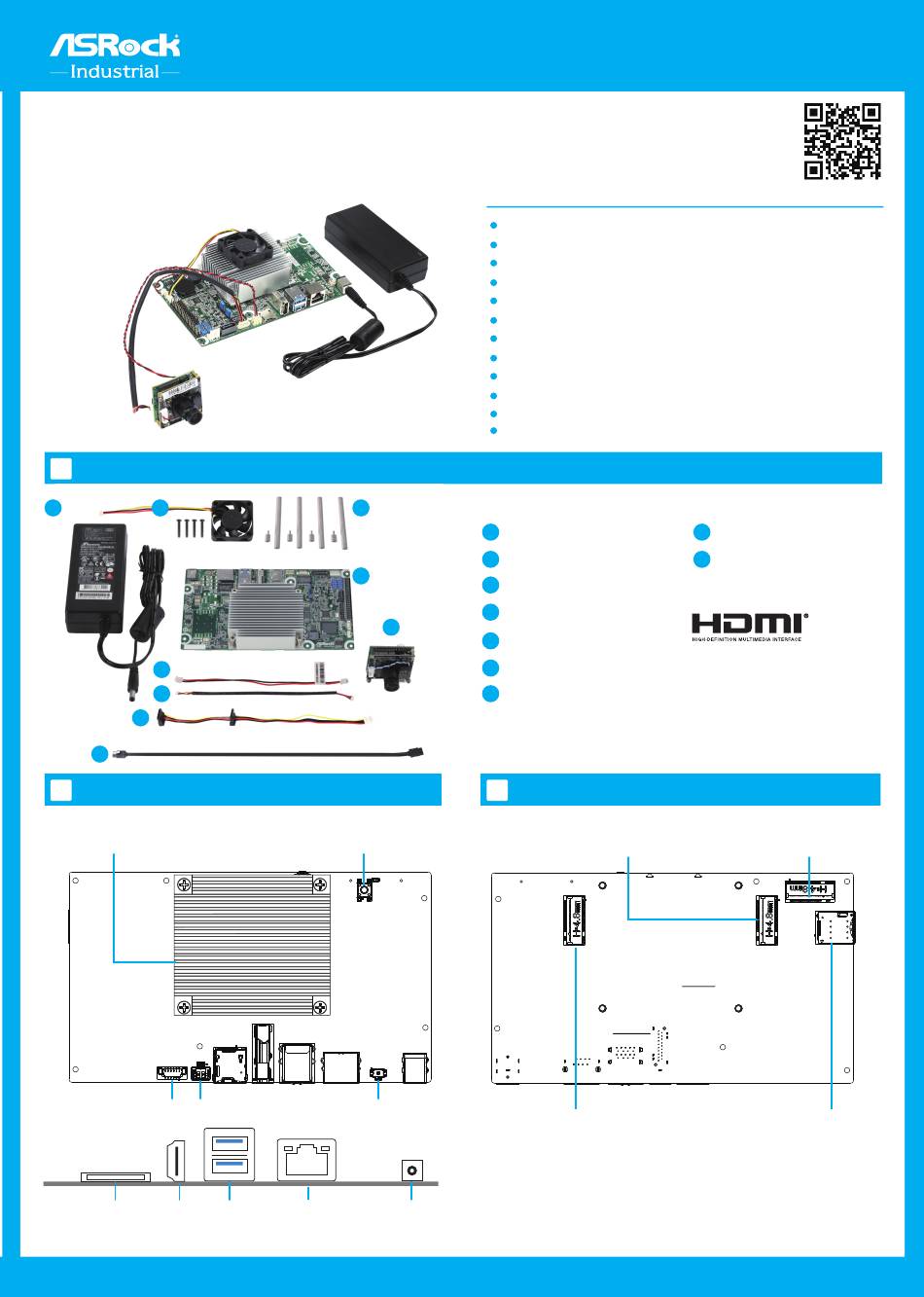

Quick Installation Guide
A
Package Contents
1 2
6
7
8
9
B Top View
Intel® Atom
Apollo Lake Processor
CAM1 CAM_PWR1
USB 3.2
Micro SD HDMI 1.4b
Gen1
Card Slot
3
4
5
Power Button
RESET1
RJ-45 LAN 12V DC-in
(PoE, PD 25.5W, Optional)
Key Features
I
ntel® Apollo Lake J3455 Processor
1 x IP camera (2MP, 1080P@30fps, H.264)
1 x Movidius Myriad X/Keem Bay (Optional)
Supports LPDDR4 2400MHz 4GB, up to 8GB
2 x USB 3.2 Gen1, 1 x M.2 Key B, 1 x M.2 Key M, 1 x M.2 Key E
2 x Realtek Gigabit LAN
1 x HDMI 1.4b
1 x micro SD card slot
1 x 32GB eMMC
1 x micro SIM socket
TPM 2.0 onboard IC
12V DC-In/ PoE (PD) with 25.5W (Optional)
Power Adapter
1
Heatsink Fan
2
Standoffs
3
athena A2 Motherboard
4
IP Camera
5
IP Camera Power Cable
6
IP Camera Signal Cable
7
C Bottom View
1 x M.2
( M.2 Key M 2280)
1 x M.2 (Key E, 2230)
*15G06M096000AI*
VIDEO TUTORIAL
SATA Data Cable
8
SATA Power Cable
9
The terms HDMI® and HDMI High-Defini�on
Mul�media Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
1 x M.2
(M.2 Key B 3042 / 3052)
1 x SIM Socket
P/N: 15G06M096000AI
