Iron logic Matrix III NET User Manual

MATRIX III NET
Matrix III NET network (RS-485) controller
with built-in Mifare (13,56 MHz) reader

1. GENERAL INFORMATION

Matrix III NET device is designed to read Mifare keys (cards, key fobs, etc. as per ISO 14443-
A), and to read and write protected memory sectors of Mifare 1K, 4K and Ultralight.
To increase
the built-in beeper
volume, please remove
the paper sticker.
Jumper layout
for this model.

2. OPERATION MODES:

2.1 ACS Reader.
The device is connected to ACS (Access Control Systems) controllers via iButton (Dallas Touch
Memory), Wiegand-26 or Wiegand-34 protocols.
Mode 2.1.1. The device transmits UID (Serial Number) of all cards (keys).
Mode 2.1.2. The device transmits UID (Serial number) of only those cards (keys) that have
authorised (obtained access) to a certain sector.
Mode 2.1.3. The device transmits the code from protected memory sector of a Mifare key.
(To configure 2.1.2 and 2.1.3 modes, download and use free software from M3NConf.zip archive at
http://www.ironlogic.me
2.2 PC Reader.
The Reader is connected to a PC through a converter, via RS-485 protocol.
Mode 2.2.1. The reader reads and writes protected memory sectors of Mifare keys.
To work with the reader in this mode, use the SDK Z-2 USB MF libraries at
http://www.ironlogic.me
To configure 2.1.2 and 2.1.3 modes, and to work in 2.2.1 mode, a Z-397 converter is necessary
(http://www.ironlogic.me
The reader is connected via point-to-point RS-485 (not a network connection).
User Manual

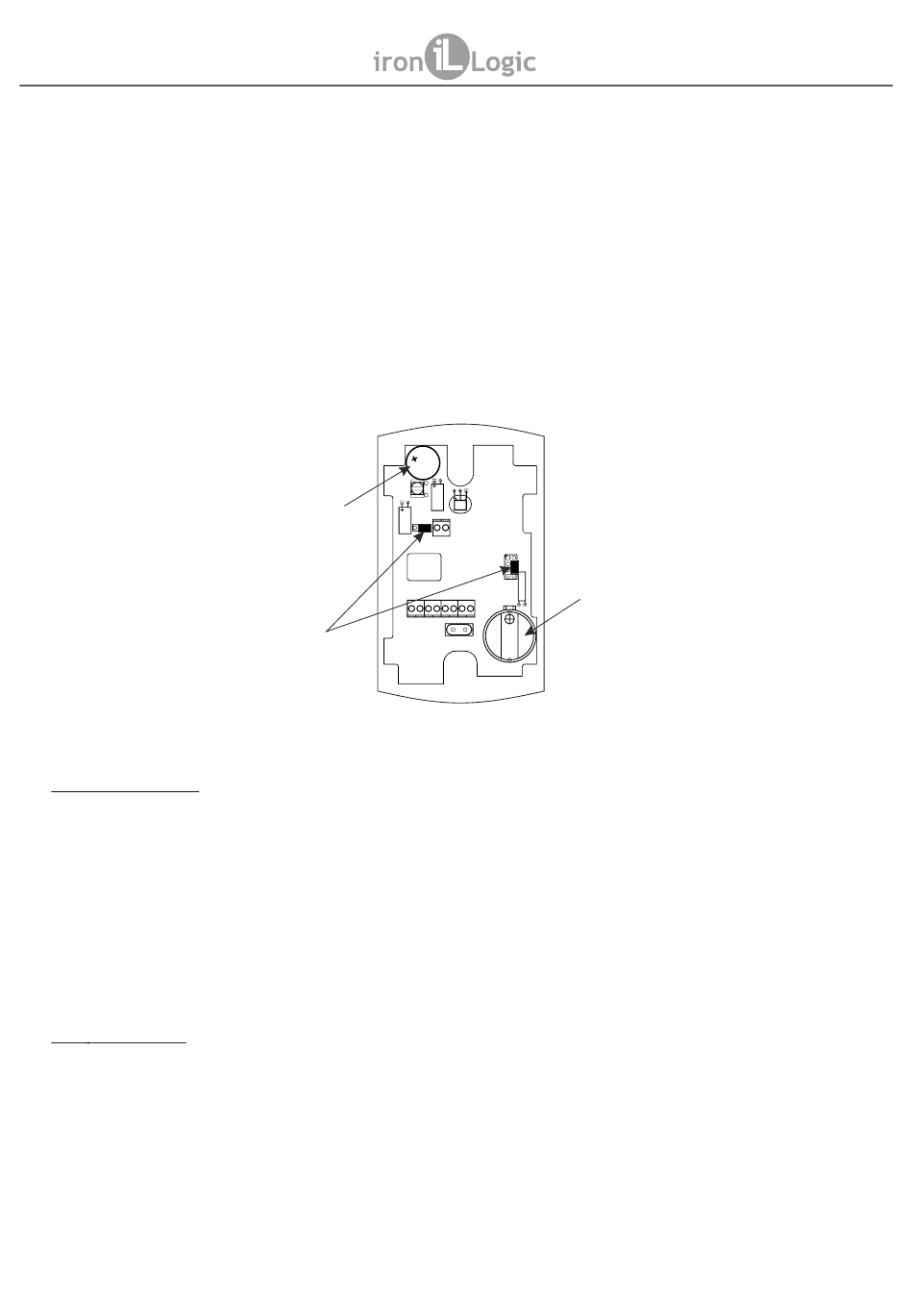

Figure 1. Elements layout.
www.ironlogic.me
Lithium battery socket
(not used in this model).
