MATRIX III 220
www.ironlogic.me
Matrix III 220
Standalone power saving controller
with built-in EM-Marine reader and 500 keys memory
User Manual
1. OVERVIEW

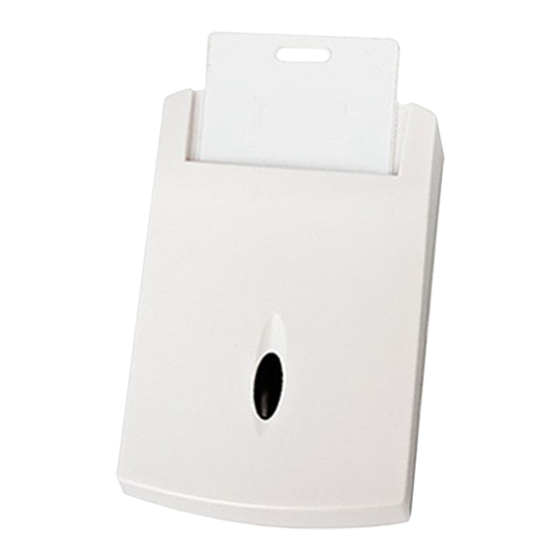

Matrix III 220 Reader is a power relay controlled by contactless cards. The device is a combo
EM-Marine contactless cards reader, and controller with memory up to 500 cards.
The device has a waterproof casing with 2 outgoing cables: 2-wire power supply cable (220 V,
35 mA) and a 3-wire power relay control cable (250 V, 6 A). Also supplied with the device is an
interchangeable pocket accessory that can be attached to the device, to secure the card in
reader working zone.
The device can be used to control power supply in hotel rooms, hostels and dormitories,
outbuildings, business premises, in events planning and property maintenance and decoration
works etc.
Master cards are used to program the device.
Access cards are used to operate the device.
A card becomes a Master card or an Access card during its programming.
2. SPECIFICATIONS
Supply voltage: .............................................................................. 220 V
Consumption current: ...................................................................35 mA
Power relay circuit current: .........................................................max 6 A
Power relay circuit voltage: .....................................................max 250 V
Reader working frequency: ........................................................125 kHz
Cards standard: .....................................................................EM-Marine
Reader working distance: .................................................................6 cm
Maximum cards number: ...................................................................500
Operation mode indication: ...........................................Audial and visual
Casing material: ....................................................................ABS plastic
Dimensions, mm: .................................................................115 x 75 x 27

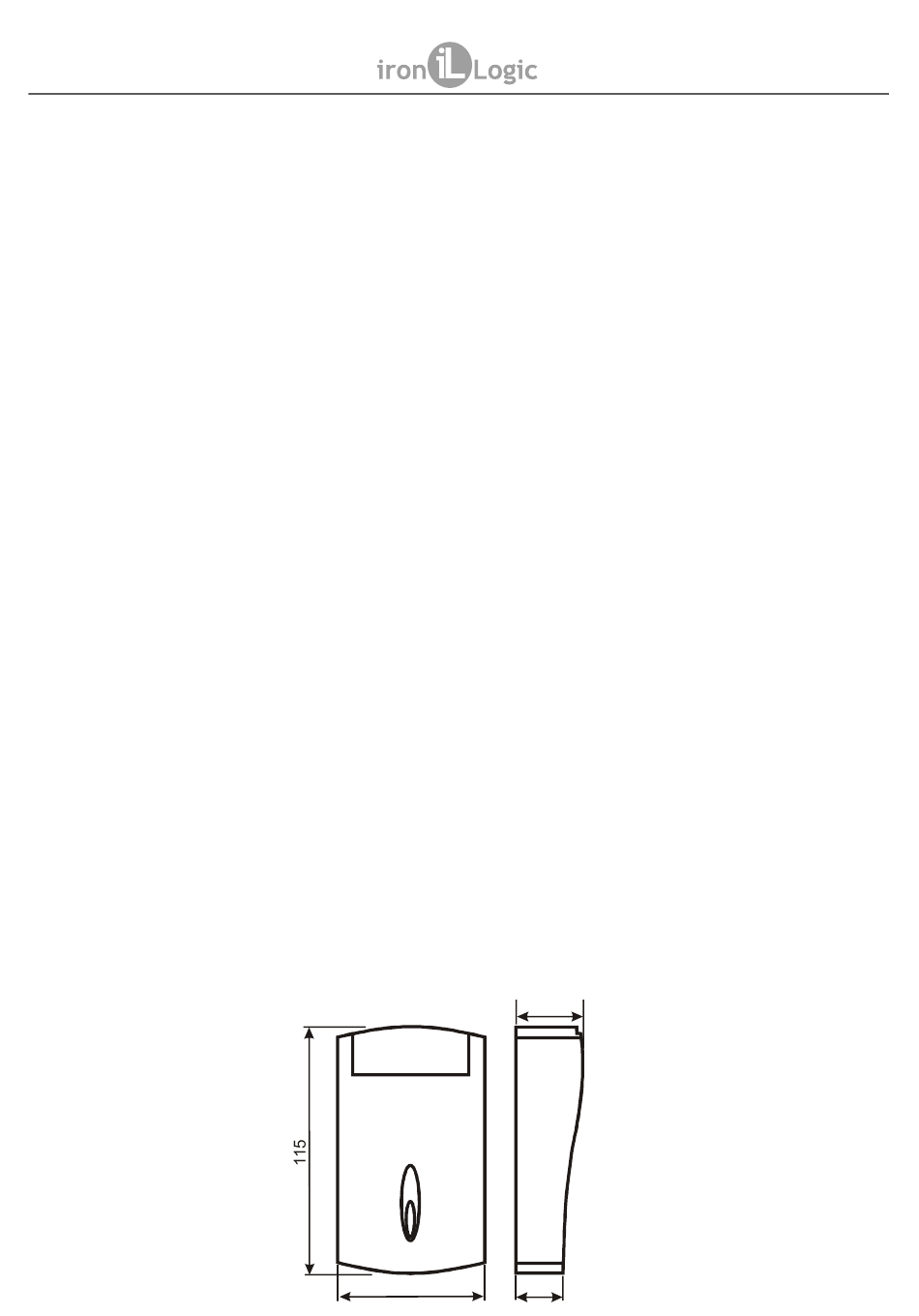

Device dimensions with the pocket accessory clipped on are illustrated in the Fig.:
27
page 1
22
75
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Iron logic Matrix III 220
Summary of Contents for Iron logic Matrix III 220
- Page 1 User Manual 1. OVERVIEW Matrix III 220 Reader is a power relay controlled by contactless cards. The device is a combo EM-Marine contactless cards reader, and controller with memory up to 500 cards. The device has a waterproof casing with 2 outgoing cables: 2-wire power supply cable (220 V, 35 mA) and a 3-wire power relay control cable (250 V, 6 A).
- Page 2 MATRIX III 220 www.ironlogic.me 3. OPERATION MODES Switch (green LED). Each touch by an Access card toggles the relay contacts state. Energy pocket (yellow LED). The relay contacts are closed while a card is located within reader working zone. Timed (red LED). Each touch by an Access card toggles the relay contacts state. However, the contacts are closed no longer than the Release Interval programmed with a Master card.
- Page 3 MATRIX III 220 www.ironlogic.me 5. MOUNTING AND CONNECTION The device should be mounted on a flat surface in the location allowing unobstructed access with cards. To mount the device using mounting kit, perform the following steps: 1. Unscrew the mounting screw and remove the top device casing lid.
- Page 4 MATRIX III 220 www.ironlogic.me To go forward with the erase, touch and hold the Master card: the LED will slowly blink red, then will flash green once, to acknowledge that all cards, including the Master card, have been erased. After that, the device will revert into normal operation and indicate its current operation mode by solid indication of one of three LED colours.
- Page 5 MATRIX III 220 www.ironlogic.me 8. PACKAGE CONTENTS Reader Matrix III 220 ......1 Matrix III Pocket Accessory ....1 Master Card (coloured) ......1 Access Card (white) ......5 Mounting Kit ........1 9. OPERATING CONDITIONS Ambient temperature limits: 5…40°C. Humidity: no more than 80% at 25°C.
- Page 6 MATRIX III 220 www.ironlogic.me 11. IRONLOGIC CONTACTS Headquarters: RF Enabled ID Limited 34 Ely Place, London, EC1N 6TD, UK E-mail: marketing@rfenabled.com Development and production: AVS LLC 7, Bobruiskaya street, Saint-Petersburg, 195009, Russian Federation E-mail: marketing@rfenabled.com Phone: +78122411853; +78125421185 www.ironlogic.ru Authorized representative in the European Union:...
