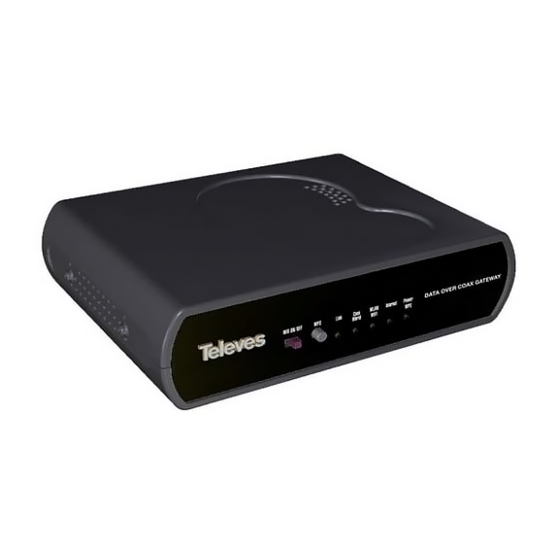

Data over coax gateway
Hide thumbs Also See for 769301:

Advertisement

Quick Links

Ref. 769301, 769302

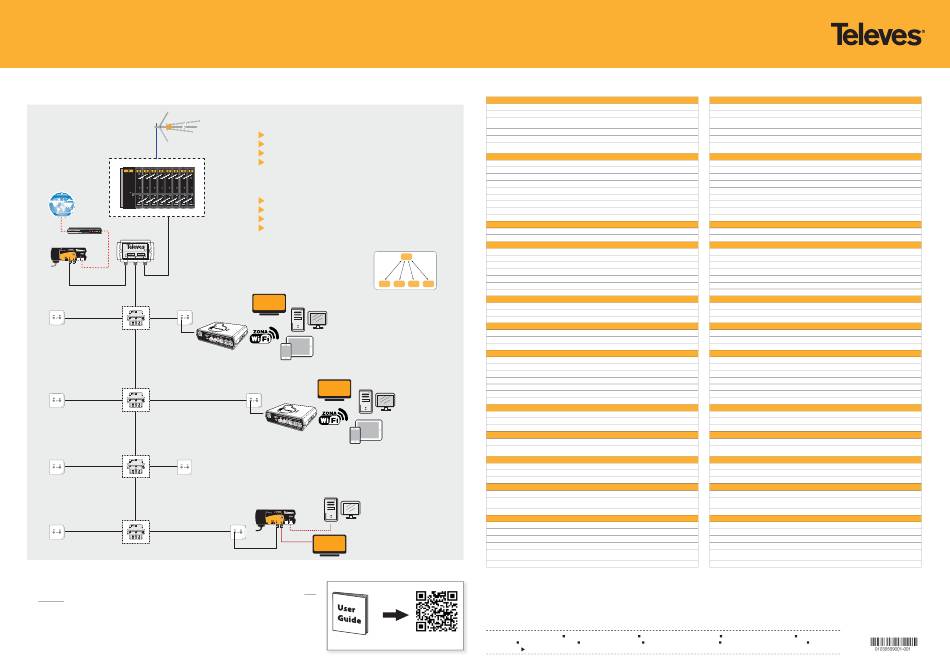

Distribución coaxial / Coaxial distribution
Internet
Router
Diplexer
TV + Data
Master
FILTRO DIPLEXOR COAXDATA 2E/1S
769220
2 MHz
68 MHz
87MHz
2150 Mhz
Nota: Más información del adaptador Data Over Coax Gateway accesible vía web: www.televes.com.
Existencia de software profesional hacia instalaciones complejas, CoaxManagerPro, AccessControl para la gestión (SNMP) y
parametrización compleja (QoS). Para poder obtenerlo, póngase en contacto con el departamento comercial de Televés (cial@
televes.com).
Note: More information about the Data Over Coax Gateway adapter, is accessible via the web: www.televes.com.
Existence of professional software to complex installations CoaxManagerPro, AccessControl management (SNMP) and complex
parameterization (QoS). To obtain it, contact the Televés sales department (cial@televes.com).
2016 © Copyright, Televés S.A.
Instalaciones en las que se comparte el acceso a un ISP.
Especialmente indicadas en:
Grandes distribuciones MATV/SMATV
CATVs
HFC (Redes híbridas fi bra/coaxial)
Instalaciones singulares como hoteles, residencias, hospitales, etc.
Installations sharing the access to an ISP.
Speccially indicated in:
MATV/SMATV large distributions
CATVs
HFC (hybrid fi ber/coaxial networks)
Special applications like hotels, residential homes, hospitals, etc.
slave
slave
MDU/MTU (MXU)
Slave
Slave
Slave
Características técnicas
Interfaz WiFi
Interfaz WiFi 802.11bgn con MIMO 2x2. Velocidades de hasta 300 Mbps en la banda de 2.4GHz
Tasa máxima de 144Mbps para un canal de 20MHz y de 300Mbps para uno de 40MHz dentro del 802.11n
Selección del potencia de la señal WiFi mediante el Switch frontal, permitiendo deshabilitar la WiFi o seleccionando un
modo Low Power
Potencia de Transmisión máxima 17dBm. Modo Low Power 3 dBm
Botón WPS (Wireless protected setup) para una fácil conexión evitando la introducción de contraseñas
Estándares de encriptación y autenticación WiFi incluyendo, WEP, WPA/WPA2 y 802.1x para el establecimiento de una
conexión privada y segura
Interfaz Coaxial/Eléctrica
Modos HomeNetworking y MDU/MTU.
Hasta 253 dispositivos por maestro en Modo MDU/MTU
Rango de Frecuencias Datos: 2-67,5 MHz
Rango de Frecuencias TV: 87-2150MHz
Máxima Atenuación: 85 dB
Señal de Salida: 130 dbμV
Densidad espectral de potencia: –50dBm/Hz
Mínima densidad espectral de Potencia: -135dBm/Hz
Rango de Temperaturas: -5ºC a 45ºC
Alcance
Cable Coaxial: 1,2Km
Red eléctrica: 300 m
Información LED
5 LED frontales para indicar el estado del dispositivo
master
Power Led: Encendido y operativo. Cargando Firmware. Error
Internet Led: Acceso a Internet. Modo bridge. Sin Red
Wifi Led: Potencia normal, Baja potencia y WiFi apagada
Medium: Detección del medio Coaxial/Híbrido
slave
slave
LINK: Establecimiento de Enlace y Actividad.
100/10Mbps: Enlace y Actividad sobre Ethernet
Estándares
IEEE 802.11 b/g/n
IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
HomePlugAV IEEE P1901
Modulación y Codifi cación de Canal
Adaptación Dinámica a las condiciones del canal y sincronización con la frecuencia de la red PLC 50/60Hz
OFDM 2880 portadoras, QAM 4096/1024/256/ 64/16/8, QPSK, BPSK y modo ROBO
Corrección automática de errores basado en FEC (forward error correction) y en TCC (Turbo Convolutional Codes)

QoS

Soporta Multicast. IGMP snooping. MLDv2/IGMPv3/ IGMPv2.
Cuatro colas de transmisión priorizadas.
Priorización por VLAN IEEE 802.1p
Tipo de Servicio (ToS) y CoS (Class of Service)
Clasifi cación por Dirección Origen/Destino MAC.
Clasifi cación por puerto IP Origen/Destino.
Otros Filtros clasifi cadores ajustables.
Corriente Alterna y Consumo
108V-254V~ 50/60Hz
Otros Filtros clasifi cadores ajustables.
Modo bajo consumo (Advanced Power Management) Max 1.8Wats
Modos de Transmisión
HomeNetworking: Modo Asíncrono basado en CSMA/CA con bajas latencias.
MxU: Modo síncrono basado en token (Hidden Node) que sincroniza las transmisiones de los esclavos y soporta largas
distancias.
Seguridad
Establecimiento de redes privadas mediante clave de red (NPW, Network Password key)
Privacidad de las comunicaciones mediante una encriptación AES-128 (NEK, Network Encrytion key)
Protección de la confi guración en los dispositivos mediante clave de acceso (NVAK, Non-Volatile Access key)
Conectores
Cable eléctrico EURO. Fuente eléctrica incorporada en el producto
2 x conectores "F" 75 Ohm, filtro paso bajo para los datos (2-67,5Mhz) y filtro paso alto para los Servicios de TV (87Mhz-
2150Mhz).
3 x RJ45 Ethernet 100/10Mbps. Auto MDI/MDIX.
Normativa
Diseño compacto, robusto y apantallado que cumple toda la normativa aplicable.
UNE-EN 60950-1:2007/AC:2012: seguridad del producto
UNE-EN 55022:2008 perturbaciones radioeléctricas
UNE-EN 55024:2011 requisitos de inmunidad
UNE-EN 50412-2-1:2006 requisitos de inmunidad en instalaciones de baja tensión para equipos de comunicación sobre
línea eléctrica.
EN 300 328 V1.7.1, EN 62311:2008: Espectro Electromagnético
Garantía
Televés S.A. ofrece una garantía de dos años calculados a partir de la fecha de compra para los países de
la UE. En los países no miembros de la UE se aplica la garantía legal que está en vigor en el momento de la
venta. Conserve la factura de compra para determinar esta fecha.
Durante el período de garantía, Televés S.A. se hace cargo de los fallos producidos por defecto del material o
de fabricación. Televés S.A. cumple la garantía reparando o sustituyendo el equipo defectuoso.
No están incluidos en la garantía los daños provocados por uso indebido, desgaste, manipulación por terce-
ros, catástrofes o cualquier causa ajena al control de Televés S.A.
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
www.televes.net/A00308
CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ
https://doc.televes.com
СООТВЕТСТВИЯ
Technical features

WiFi interface

Interface 802.11bgn WiFi with 2x2 MIMO. Speeds up to 300 Mbps in the 2.4GHz band
Maximum rate of 144Mbps for 20MHz channels and 300Mbps for one 40MHz within 802.11n
Selection of the WiFi signal strength using the front switch, allowing disable WiFi or selecting a Low Power mode
Maximum Transmission Power 17dBm. Low Power Mode 3 dBm
Button WPS (Wireless Protected Setup) for easy connection avoiding the introduction of passwords
Encryption standards including WiFi authentication, WEP, WPA/WPA2 and 802.1x for establishing a secure and private
connection

General

Modes HomeNetworking and MDU / MTU.
Up to 253 devices per master in Mode MDU / MTU.
Data Frequency Range: 2 to 67,5 MHz
TV Frequency range: 87-2150MHz
Maximum Attenuation: 85 dB
Output Signal: 130 dBuV
Power spectral density: -50dBm/Hz
Low Power spectral density: -135dBm/Hz
Temperature range: -5 ° C to 45 ° C

Distance

Coax Cable: 1.2Km
PowerLine: 300 m

LEDs

5 front LED to indicate device status
Power LED: On and operational. Loading Firmware. Error
Internet LED: Internet access. Bridge mode. No Network
WiFi LED: Normal power, Low power and WiFi off
Medium: Detection Coaxial / Hybrid
LINK: Link Establishment and activity
100/10Mbps: Ethernet link and activity on

Standards

IEEE 802.11 b/g/n
IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
HomePlugAV IEEE P1901

Modulation and Channel Coding

Dynamic adaptation to channel conditions and frequency synchronization with the PLC network 50/60Hz
2880 OFDM carriers, QAM 4096/1024/256 / 64/16/8, QPSK, BPSK and ROBO mode.
Automatic error correction based on FEC (forward error correction) and TCC (Turbo Convolutional Codes)
QoS
Supports Multicast. IGMP snooping. MLDv2/IGMPv3 / IGMPv2.
Four transmission queues prioritized.
VLAN IEEE 802.1p prioritization
Type of Service (ToS) and COS (Class of Service)
Source/Destination MAC Address Classifi er.
Source / Destination IP Address Classifi er.
Other adjustable classifi ers fi lters.

AC and Consumption

108V-254V~ 50/60Hz
Consumption: Max 6Watts
Low Power Mode (Advanced Power Management) Max 1.8Watts

Transmit Modes

HomeNetworking: Asynchronous mode based on CSMA / CA with low latencies.
MxU: Token-based synchronous mode (Hidden Node) which synchronizes slave transmissions and supports long distances.

Security

Establishment of private networks using network key (NPW, Network Password key)
Privacy of communications using AES-128 encryption (NEK, Network encrytion key)
Privacy settings on devices using AES-128 access key (NVAK, Non-Volatile Access key)

Connectors

Electric cable EURO. Electric supply built into the product
2 x "F" Connectors 75 Ohm, low pass fi lter to the data (2 to 67.5 MHz) and high-pass fi lter for TV Services (87MHz-
2150MHz).
3 x RJ45 Ethernet 100/10Mbps. Auto MDI/MDIX.
Normativa
Compact Design, robust and shielded that meets all applicable regulations.
UNE-EN 60950-1:2007 / AC: 2012: product safety
UNE-EN 55022:2008 Radio Interference
UNE-EN 55024:2011 immunity requirements
UNE-EN 50412-2-1:2006 Immunity requirements for low voltage installations for communications equipment over
powerline.
EN 300 328 V1.7.1, EN 62311:2008: Electromagnetic Spectrum

Guarantee

Televés S.A. off ers a two year guarantee, beginning from the date of purchase for countries in the EU. For
countries that are not part of the EU, the legal guarantee that is in force at the time of purchase is applied.
Keep the purchase invoice to determine this date.
During the guarantee period, Televés S.A. complies with the guarantee by repairing or substituting the
faulty equipment.
The harm produced by improper usage, wear and tear, manipulation by a third party, catastrophes or any
other cause beyond the control of Televés S.A. is not included in the guarantee.
DECLARAÇÃO DE CONFORMIDADE
DECLARATION DE CONFORMITE
DICHIARAZIONE DI
