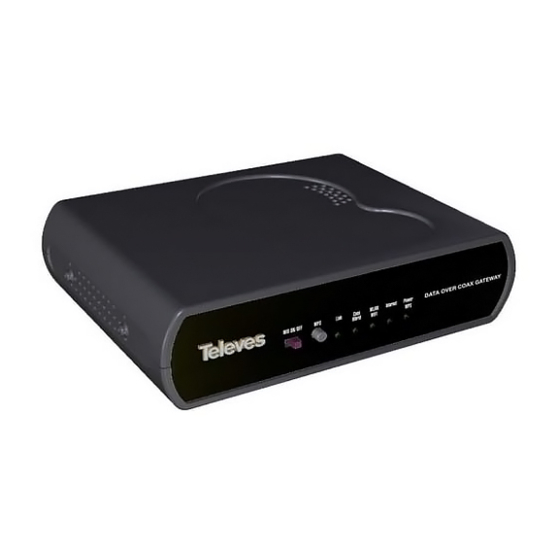

- Page 1 Ref.769301 Data Over Coax Gateway...
-
Page 2: Table Of Contents
Stting up the time on the system ......................22 Advanced NAT Configuration........................24 Changing the password ..........................25 Gestión del dispositivo..........................25 Installing the CoaxData Home WiFi 1Gps...................27 Setting up of the Master on the system.....................29 Connection of the Master device.......................30 Instalation of Ref. 769301 in the TV outlets.....................30 Specifications............................33... -
Page 4: Important Safety Information
Data Over Coax Gateway Ref.769301 Important safety information Main installation considerations Please read this manual carefully before installing the product. To reduce risk of fire or electrical shock do not expose the equipment to rain or dampness. ... -
Page 5: Introduction
Easy settting up procedure without the need of installing new hardware and/or software drivers. (Ref.769301) 100 BASE-TX/10 BASE-T to allow the connection of multiple devices 3xEthernet such as PC's, Set to boxes, video game consoles, etc. ... -
Page 6: System Requierements
Data Over Coax Gateway Ref.769301 Working bandwidth on the coaxial network is supporting a maximum attenuation of 2-67,5 MHz dB. There is no limit of minimum attenuation. It can support up to 1,2 Km of coaxial cable. 5 front LED’s show equipment status, Internet access, WiFi status, coaxial network status. -
Page 7: Package Content
Data Over Coax Gateway Ref.769301 Package content Ref.769301 Data Over Coax Gateway User guide 75 Ohm Coaxial load CoaxDATA Home Setup guide 75Ohm load Wifi 1Gbps www.televes.es... -
Page 8: Coaxdata Range Of Products
Data Over Coax Gateway Ref.769301 CoaxData range of products Ref.769301 is a part of a comprehensive range of products: • Ref.769201 CoaxData™ 1Gbps-HDTV • Ref.769202 CoaxData™ 1Gbps-HDTV with SFP • Ref.769203 CoaxData™ 1Gbps-HDTV 1XEth Ref.769220 CoaxData™ Diplex filter TV-Data 2-68 Mhz / 87-2150 MHz •... -
Page 9: Device Connections
Data Over Coax Gateway Ref.769301 Getting to know the Data Over Coax Gateway Device connections Ethernet ports 3 x RJ-45 ports IEEE 802.3 100 BASE-TX/10 BASE-T compliant. These ports allow the connection of the CoaxData 1Gbps-HDTV to computers, VOIP telephones, Set Top Boxes, connected TV’s,etc. They support speed autonegotiation and Auto-MDIX for ease and optimal working conditions. - Page 10 Data Over Coax Gateway Ref.769301 Signal will always be present on the coaxial network. The Medium LED on the front panel will bright green (Coaxial mode) or orange (Hybrid mode). WPS Button (Wireless protected setup) allows the easy configuration of a wireless secure connection with other devices supporting the WPS protocol.
-
Page 11: Front & Rear Pannel Leds
Data Over Coax Gateway Ref.769301 Front & rear pannel LEDs The product has 5 LED’s on its front pannel show different working conditions of the device. Furthermore 3 LED’s on the rear pannel show status and activity of the ethernet ports. -
Page 12: Setting Up Of The Product
Data Over Coax Gateway Ref.769301 Setting up the CoaxData Home WiFi Setting up of the product The configuration of the device has to be carried out by means of a web browser. Connect a device with a web browser to the CoaxData Home Wifi and access the IP adress : http://172.16.0.1... - Page 13 Data Over Coax Gateway Ref.769301 • : In this mode the option shows information related to the conection stablished by Router mode the ISP’s router. In this mode there is a WAN interface (Coaxial/PLC) and interfaces for the LAN network Ethernet & WiFi.
- Page 14 Data Over Coax Gateway Ref.769301 Packets counters for the WAN Interface supply information about the activity on this interface. Information is supplied on the LAN interfaces and status of the WiFi interface, • User Information: working mode and packets counters.
-
Page 15: Setting Up Of The Working Mode
Data Over Coax Gateway Ref.769301 Setting up of the working mode The working mode hast to be set through the Web interface on the The produt has Network Settings. two operation modes deppending on the type of network bein deployed. - Page 16 Data Over Coax Gateway Ref.769301 Allows the Static Configuration: manual configuration parameters of the WAN interface. IP Address/Subnet Mask: Gateway: IP Adress of the router connected to the Master device. IP Adress of the Domain DNS: Names Server ...
-
Page 17: Lan Interface Set Up
Data Over Coax Gateway Ref.769301 LAN interface set up. The product includes a LAN interface to stablish connection between the local devices and the internet and to build a bridge between the ethernet ports and the WiFi network. Settings: This options configures the IP adress and mask of the LAN. -
Page 18: Wifi Interface Set Up
Data Over Coax Gateway Ref.769301 WiFi interface set up The configuration of this interface hast two different elements: La configuración de la antena WiFi es dividida en dos partes fundamentales configuration: In this part the RF parameters of the network can be configured. Operation •... - Page 19 Data Over Coax Gateway Ref.769301 80211ng20 80211ng40minus 80211ng40minus (20Mhz) 40MHz above 40MHz below Primary Frequency channel (MHz) Blocks Center Blocks Center Blocks 2412 1–3 1–7 Not Available 2417 1–4 1–8 Not Available 2422 1–5 1–9 Not Available 2427 2–6 2–10...
-
Page 20: Wifi Access Points Configuration
Data Over Coax Gateway Ref.769301 WiFi Access points configuration Configuration of the access point is done through the definition of one or more VAPS (Virtual access points). For each of the interfaces it es needed to specify: Defines a new WiFi VAP. -
Page 21: Security Configuration Od The Wifi Network
Data Over Coax Gateway Ref.769301 Security configuration od the WiFi network The device supports four security levels on the WiFi network. NONE: WiFi network is open. There is no access restriction. WEP: (Wired equivalent privacy), legacy WiFi security protocol with low robustness. Its use is not recommended but for compatibility reasons. -
Page 22: Advanced Configuration Of The Device
Data Over Coax Gateway Ref.769301 ◦ AES: Encryption method for WPA/WPA2. This is the most robust encyption method and the recommended option. Autentificación WiFi Security level NONE No access restriction WEP 64-bit VERY LOW WEP 128-bit WPA/PSK AVERAGE WPA2/PSK AVERAGE... -
Page 23: Stting Up The Time On The System
Data Over Coax Gateway Ref.769301 Setting up the time on the system Time on the system can be set by configuring the NTP (network time protocol) and defining the servers that will set the time. It has to be defined the Time Zone. GMT+0 is the default option. -
Page 24: Advanced Nat Configuration
Data Over Coax Gateway Ref.769301 Advanced NAT Configuration When the product is working in Router mode the NAT option will be automatically activated. Should this option not be required, just unselect. Should the NAT option be activated, the following options will be available: ... -
Page 25: Changing The Password
Data Over Coax Gateway Ref.769301 Changing the password This option allows the change of the username and password to access the web interface of the product. It is strongly recommended to change de default user and password to increase security of the ... -
Page 26: Device Management
This option will load a new firmware to the device. This file can only be Firmware supplied by Televes. The upgrade process might take up to 3 minutes and the product should not be powered off during this process as it might face permanent malfunction. -
Page 27: Installing The Coaxdata Home Wifi 1Gps
The Data Over Coax Gateway is preconfigured as an MxU slave, Coaxial, Mask 3[Coax 7,5-65MHz] to be able perform a plug and play installation. This configuration assumes that there is a Televes mxU Master (769201, 769202 or 769203) connected to a gateway with internet access. Ref 769301 performs as an slave on the access points of the coaxial network. -
Page 28: Setting Up Of The Master On The System
Data Over Coax Gateway Ref.769301 Setting up of the Master on the system To guarantee the performance of the system it is necessary to install a Master device on the headend. To configure the Master the CoaxManager application has to be used. -
Page 29: Instalation Of Ref. 769301 In The Tv Outlets
TV socket to your computer or wired device. Please note that there is no need for additional hardware or software drivers. Master/Slave: Ref. 769301 is configured to MxSlave mode. Therefore it will Working mode automatically connect to the system Master device. Please note that all other devices on the network must be set to MxU Slave mode using the CoaxManager Software. - Page 30 Data Over Coax Gateway Ref.769301 You can also access the device through the WiFi network. There are two possibilities to connect to the wireless network: Search on the device for WiFi Network with the following name:: CoaxData-DoC-Wifi. • Default password (WPA2-PSK) is:...
-
Page 31: Specifications
CoaxData 1Gbps-HDTV Ref.7692 Specifications WiFi Interface Range WiFi 802.11bgn with 2x2 MIMO. Coax Cable: 1.2Km • • Maximum througput 144Mbps for a 20MHz Channel PowerLine: 300 m • • and 300Mbps for a 40MHz channel within 802.11n Protocols WiFi power selection by means of a front pannel •...
