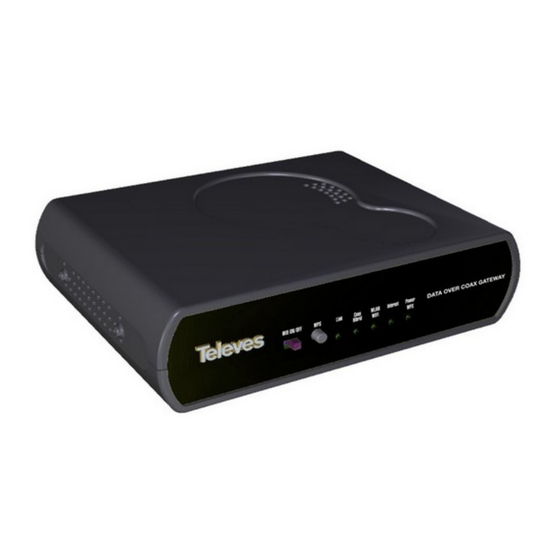

Televes 769301 Manual

Data over coax gateway
Hide thumbs Also See for 769301:
Table of Contents

Advertisement

Quick Links

Download this manual
Ref.769301
Data Over Coax Gateway

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 769301 and is the answer not in the manual?

Questions and answers

Related Manuals for Televes 769301

Summary of Contents for Televes 769301

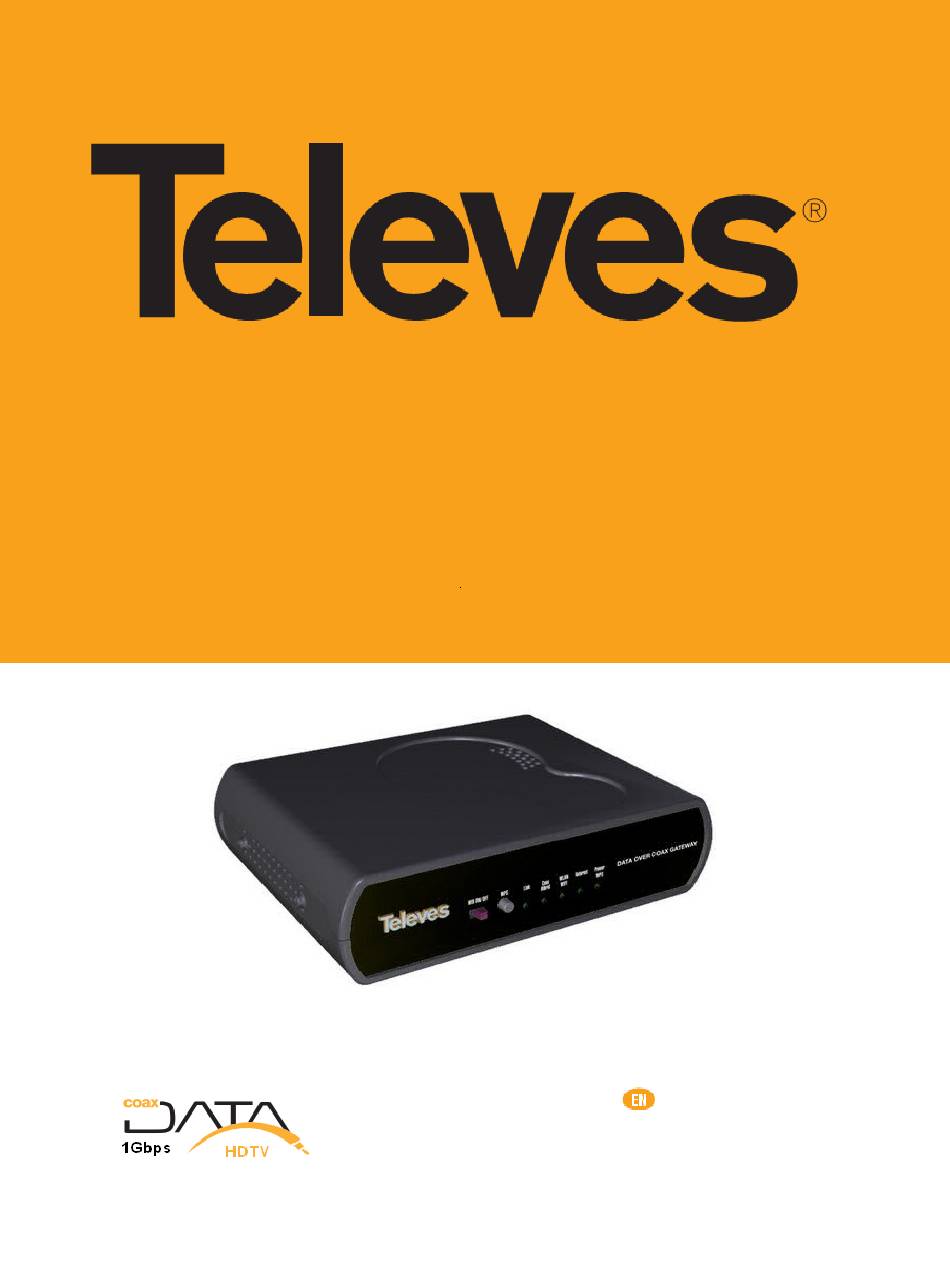

  • Page 1 Ref.769301 Data Over Coax Gateway...

  • Page 2: Table Of Contents

    Content Index Important safety information........................4 Main installation considerations........................4 Safe operation..............................4 Electric security markings..........................4 Introduction............................... 5 Data Over Coax Gateway..........................5 Main Specifications............................5 System requierements ..........................6 Package content ............................7 CoaxData range of products........................8 Getting to know the Data Over Coax Gateway..................9 Device connections............................
  • Page 3 Advanced NAT Configuration........................35 Changing account password ........................37 Device Management..........................38 Log Management............................39 User Web account............................. 40 Installing Data Over Coax Gateway....................... 41 Setting up Coaxdata Master........................42 Connecting CoaxData Master........................42 Install 769301 Slave on TV outlets......................43 Specifications............................45...

  • Page 4: Important Safety Information

    Data Over Coax Gateway Ref.769301 Important safety information Main installation considerations  Please read this manual carefully before installing the product.  To reduce risk of fire or electrical schock do not expose the equipment to rain or dampness. ...

  • Page 5: Introduction

    Easy settting up procedure without the need of installing new hardware and/or software drivers.  3xEthernet (Ref.769301) 100 BASE-TX/10 BASE-T to allow the connection of multiple devices such as PC's, Set to boxes, video game consoles, etc.  WiFi 802.11bgn interface with 2x2 MIMO in the 2.4GHz band supporting up to 144 Mbps for 20MHz channels and up to 300 Mbps for 40MHz channels.

  • Page 6: System Requierements

    Data Over Coax Gateway Ref.769301  Dynamic signal adjustment based on channel conditions and powerful coding algorythm based on FEC & TCC (turbo convolutional codes) technique allowing communication with just 3dB of SNR.  Advanced Encryption algorithm (AES-128) guaranteeing secure communications.

  • Page 7: Package Content

    Televes ® Package content Ref.769301 Data Over Coax Gateway  User guide  75 Ohm Coaxial load  Euro Power Cord  Data Over Setup guide 75Ohm load Coax Gateway Power Cable www.televes.es...

  • Page 8: Coaxdata Range Of Products

    Data Over Coax Gateway Ref.769301 CoaxData range of products Ref.769301 is a part of a comprehensive range of products: • Ref.769201 CoaxData™ 1Gbps-HDTV • Ref.769202 CoaxData™ 1Gbps-HDTV with SFP • Ref.769203 CoaxData™ 1Gbps-HDTV 1XEth • Ref.769220 CoaxData™ Diplex filter TV-Data 2-68 Mhz / 87-2150 MHz •...

  • Page 9: Getting To Know The Data Over Coax Gateway

    Televes ® Getting to know the Data Over Coax Gateway Device connections Ethernet ports 3 x RJ-45 ports IEEE 802.3 100 BASE-TX/10 BASE-T compliant. These ports allow the connection of the CoaxData 1Gbps-HDTV to computers, VOIP telephones, Set Top Boxes, connected TV’s,etc. Each RJ45 support speed autonegotation and Auto-MDIX for ease and optimal working conditions.
  • Page 10 Data Over Coax Gateway Ref.769301 WPS Button (Wireless protected setup) allows the easy configuration of a wireless secure connection with other devices supporting the WPS protocol. Siply push the button and activate the WPS function on the wireless device. The WPS function will be active for 2 minutes, during this period of time the client should stablish a secure connection.

  • Page 11: Front & Rear Pannel Leds

    Televes ® Front & rear pannel LEDs The product has 5 LED’s on its front pannel show different working conditions of the device. Furthermore 3 LED’s on the rear pannel show status and activity of the ethernet ports. Power LED This LED shows the status of the device.

  • Page 12: Data Over Coax Gateway Configuration

    Data Over Coax Gateway Ref.769301 Data Over Coax Gateway Configuration Web Interface Access The configuration of the device has to be carried out by means of a web browser.  Connect a device with a web browser to the Data Over Coax Gateway and access the IP address: http://172.16.0.1...
  • Page 13 Televes ® Network Information: Shows network information of the device. This information is related to the selected working mode of the product. • AP Bridge mode: The device will work as an ethernet bridge on the three interfaces Coaxial/PLC- Ethernet-WiFi.
  • Page 14 Data Over Coax Gateway Ref.769301 Packets counters for the WAN Interface supply information about the activity on this interface. • User Information: Information is supplied on the LAN interfaces and status of the WiFi interface, working mode and packets counters.
  • Page 15 Televes ® • Ethernet Information: Shows assigned IP address (LAN IP address) as well as packets counters of each three Ethernet interfaces. www.televes.es...
  • Page 16 Data Over Coax Gateway Ref.769301 • Advanced LAN Info: Provides additional information of the status of the LAN including ARPs table or IPs assigned by DHCP if this service is active www.televes.es...

  • Page 17: Setting Up Wan Mode

    Televes ® Setting up WAN mode The working mode hast to be set through the Web interface on the Network Settings. Device has two operating modes depending on the type of network deployed. AP Bridge Mode AP Bridge: This mode brings up a local network where communication between all interfaces is allowed.

  • Page 18: Setting Up Lan Interface

    Data Over Coax Gateway Ref.769301 Router mode supports three protocols depending on the type of access to the internet: DHCP (Automatic), Static Configuration and PPPoE.  DHCP: This mode sets the configuration of the WAN interface (coaxial/PLC) through a DHCP server connected to the Master of the network.

  • Page 19: Wifi Interface Set Up

    Televes ® WiFi interface set up Wifi settings have the following options • Save/Delete/Cancel: Save: Saves configuration changes; Delete: Deletes currently selected VAP; Cancel: Deletes all changes made on wlan settings web page and restore to original values. • Wireless...

  • Page 20: Configuration Of The Radio Interface

    Data Over Coax Gateway Ref.769301 The configuration of this interface hast two different elements: • Radio configuration: RF network parameters can be configured; Operation Mode, frequency, and bandwidth use. • Access point configuration: VAP (virtual access points) can be configured. For each network the SSID name and the security should be set.
  • Page 21 Televes ® 80211ng20 80211ng40minus 80211ng40minus (20Mhz) 40MHz above 40MHz below Primary Frequency channel (MHz) Blocks Center Blocks Center Blocks 2412 1–3 1–7 Not Available 2417 1–4 1–8 Not Available 2422 1–5 1–9 Not Available 2427 2–6 2–10 Not Available 2432 3–7...

  • Page 22: Wifi Access Point Configuration

    Data Over Coax Gateway Ref.769301 WiFi Access Point Configuration Configuration of the access point is done through the definition of one or more VAPS (Virtual access points). For each of the interfaces it es needed to specify:  New VAP: Defines a new WiFi VAP.

  • Page 23: Multiple Vap Restrictions

    Televes ® Multiple VAP Restrictions The following restrictions apply when the device has defined multiple VAPS  The maximum number of VAPs that can be created is 8.  Only one VAP Station / WDSStation can be configured on device. If there are multiple VAPs other VAPs must be AP / RootAP / Repeater.
  • Page 24 Data Over Coax Gateway Ref.769301  Length: 64-bit or 128-bit WEP key length.  Network Key: WEP Password, it must have 13 characters for 128 bits or 5 characters for a 64 bit password.  Index: There are up to four different keys. By selecting the index the desired key for the VAP can be selected.

  • Page 25: Setting Wps

    Televes ® Setting WPS The WPS (Wireless Protected Setup) allows device to configure passwords for wireless network easily. Normally used with WPA / WPA2 authentication protocols. WPS has the following settings:  Disabled: WPS option is disabled.  Configured: The WPS is enabled.

  • Page 26: Create Custom Bridges And Vlan Interfaces

    Data Over Coax Gateway Ref.769301 Create custom Bridges and Vlan interfaces ref.769301 allows setup of custom bridges and VLAN interfaces. The following features are supported: • VLAN creation over Coax, wireless and Ethernet interfaces. • Bridge connection (Bridges) between physical interfaces (Ethernet, Coaxial or Wifi) and VLAN interfaces •...

  • Page 27: Creating Vlan Interfaces On The Device

    To do this, it must be specified the VLAN tag that will be incorporated in the packets, called VLANID. La creación de VLAN es realizado en la ref.769301 a traves de la interfaz Web, en Network > Vlan Settings •...
  • Page 28 Data Over Coax Gateway Ref.769301 The following image shows a graphic representation of the switch operation: To create a VLAN on the switch, the VLAN tag must be specified for the configuration of the switch: And indicate how the switch ports...

  • Page 29: Creating Bridge Interfaces On The Device

    Televes ® This configuration of the switch allows to assign certain ports to a specific VLAN. A series of checks are included to ensure that the port settings are correct: • Each port can only be Untagged in one VLAN: A port can only be declared untagged in a single VLAN.
  • Page 30 Data Over Coax Gateway Ref.769301 The newly created Bridge will be incorporated as an interface to the system. Next step is adding to the Bridge the interfaces that we want it to operate with. These interfaces might be: • System Interfaces: These are the Coaxial, Wireless and/or Ethernet interfaces.
  • Page 31 Televes ® VLAN10 tag coming from the Ethernet interface, we can create the corresponding VLAN interface and add the new interface to the bridge, br-vlan10 in this example According to this configuration: Router: All untagged packets will be routed normally.

  • Page 32: Advanced Device Configuration

    Data Over Coax Gateway Ref.769301 Advanced Device Configuration Default Configuration Behavior By selecting Management> Advanced Management can define how the device buttons and LEDs behave. • Enable Factory Defaults Button: Activate factory settings button on the front of the device (enabled by default).

  • Page 33: Internet Test

    Televes ® • Shutdown Wifi LED Colour (OFF / RED): Selects the LED color when the wifi is turned off or the power level is changed. You can enable the red LED on the front setting the color (green/orange/red) or (green/green/off) for different transmission modes (normal/low power/off) This option allows providers to customize LED colors so red color disappears from the front.

  • Page 34: Routing Tables

    Data Over Coax Gateway Ref.769301 Routing tables Routing tables allow setting routes based on ranges of IP addresses. For each route a gateway will be defined. There are two ways to set these routing tables:  (Router Internet Protocol): This protocol allows different routers to exchange their routing tables to establish the optimal route to forward IP packets.

  • Page 35: Advanced Nat Configuration

    Televes ® Advanced NAT Configuration When are on Router mode, NAT option will be automatically activated. If this option is not required just unselect. When NAT enabled, following options will be available:  ALG Configuration (Application Level Gateway): this option allows the possibility of adding to the firewall advanced parameters so that the selected services will be supported.
  • Page 36 Data Over Coax Gateway Ref.769301 • Restriced Cone: Address Restricted Cone-NAT, allows an external host (hAddr: Any) can be connected to a device on the LAN (iaddr: iPort) sending packets to WAN port (eAddr: ePort) only if you have previously established a connection with it. This option allows once you have set the NAT connection, any port on the host to which the connection has been established to connect to the service established.

  • Page 37: Changing Account Password

    Televes ®  Virtual Server (Port Forwarding): This option allows the propagation of ports to the LAN. It allows services such as web, ftp servers, etc to be reached from the Internet. • As an example Port 1234 of the host 172.16.0.11, can be reached through port 1234 of the router.

  • Page 38: Device Management

     Firmware upgrade: This option will load a new firmware to the device. This file can only be supplied by Televes. Upgrade process might take up to 3 minutes and the product should not be powered off during this process...

  • Page 39: Log Management

    Televes ® Log Management Logging system allows to monitoring and register device operation. All activity is recorded: Web access, New WiFi device association, network services, etc. ..  Record: Enable/Disable logging system  Record Level: If you have choose a record level,all the events which enjoy equal or higher level will be recorded.

  • Page 40: User Web Account

    Data Over Coax Gateway Ref.769301 User Web account The Web interface has default account created specifically for user that only supports a limited set of configuration  Local network configuration: Supports the establishment of the network parameters of the local network, this is Ethernet and Wifi.

  • Page 41: Installing Data Over Coax Gateway

    The Data Over Coax Gateway is preconfigured as an MxU slave to be able perform a plug and play installation. This configuration assumes that there is a Televes mxU Master (769201, 769202 or 769203) connected to a gateway with internet access. Ref 769301 performs as an slave on the access points of the coaxial network.

  • Page 42: Setting Up Coaxdata Master

    Data Over Coax Gateway Ref.769301 Setting up Coaxdata Master To guarantee the performance of the system it is necessary to install a Master device on the headend. To configure the Master the CoaxManager application has to be used. Connecting CoaxData Master The following products are recommended as Master devices •...

  • Page 43: Install 769301 Slave On Tv Outlets

     Working mode Master/Slave: Ref. 769301 is configured to MxU Slave mode. Therefore it will automatically connect to the system Master device. Please note that all other devices on the network must be set to MxU Slave mode using the CoaxManager Software.
  • Page 44 Data Over Coax Gateway Ref.769301 • Connect the ethernet cable to the port on your device and to the CoaxData. . • Verify that the configuration of the LAN card on your device is set to Auto (DHCP). • Write on the web browser the address: http:172.16.0.1...

  • Page 45: Specifications

    Data over Coax Gateway Ref.769301 Specifications WiFi Interface Range WiFi 802.11bgn with 2x2 MIMO. Coax Cable: 1.2Km • • Maximum througput 144Mbps for a 20MHz Channel PowerLine: 300 m • • and 300Mbps for a 40MHz channel within 802.11n Quality of Service QoS...
