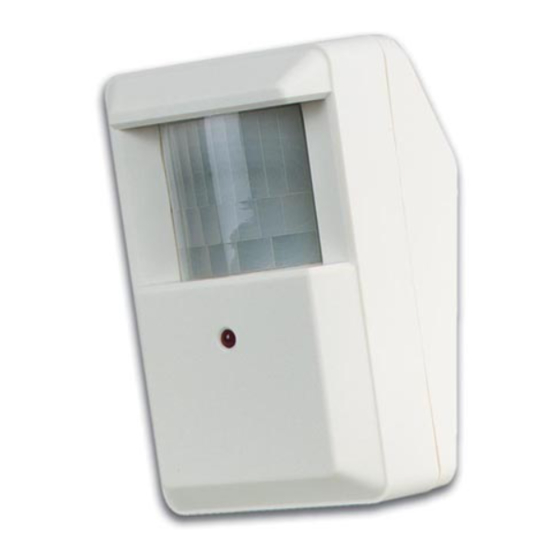

- Page 1 MODEL HAA51 PASSIVE INFRARED INTRUSION DETECTOR PASSIVE INFRAROOD DETECTOR DETECTEUR D’INTRUSION PASSIF INFRAROUGE...
-
Page 2: The Printed Circuit Board
HAA51 can also be selected for single-shot triggering. HAA51 is designed to be surface mounted or corner mounted on a wall at the height of 2m above the floor. It provides the illustrated protection pattern without calibration or adjustment. - Page 3 * LED Function Mode Selector - This selector consists of a 4-pin connector and a jumper which can be inserted between 2 pins, enabling 3 operational modes: a. OFF - Link pins 1 and 2 with jumper. - This mode can be used to disable the ALARM/WALK test LED and LOCATOR LED after all testing is completed in order to prevent unauthorised persons from tracing the protection area.
- Page 4 WIRING TAMPER Connect the "TAMPER" terminals to a normally closed 24-hour protection area of the control panel. The tamper contact will open when the cover is removed. 12V DC Connect the 12V DC terminals to a power source of 8-16VDC, making sure that they are connected with the correct polarity.
-
Page 5: Selecting Mounting Location
SELECTING MOUNTING LOCATION The detector can be surface mounted or corner mounted. Always mount the unit on a sturdy surface. * The detector should be mounted indoors, in areas that do not have openings constantly exposed to the outside environment. * Select the mounting location so that the expected movement of an intruder will cross the detection beams. -
Page 6: Installation
INSTALLATION a. Open the cover by inserting a small screw driver into the edge of the unit and turn clockwise or anti-clockwise slightly to release the cover from the back plate. b. Remove the Printed Circuit Board carefully by releasing the two fixing screws from the PCB support post. -
Page 7: Troubleshooting
TROUBLESHOOTING I. Alarm/Walk test LED does not light when unit is walk-tested: a. No power to detector - Check cable, connection and power source. b.LED selector not set to "ALARM" - Check jumper position. c. Not walking into detection pattern - Check location of zones using pattern locator and re-test. -
Page 8: Specifications
SPECIFICATIONS Detection pattern: 84.2º beam, 12m range. Detection zones: 24 dual-element zones in 3 layers. LED indicators: One pattern locator, one Walk/Alarm test indicator. (3-mode operation selectable, factory preset to ALARM/WALK position) Mounting height: 2m above floor, 13.96º angle of tilt on back-plate, no height adjustment required in installation.
