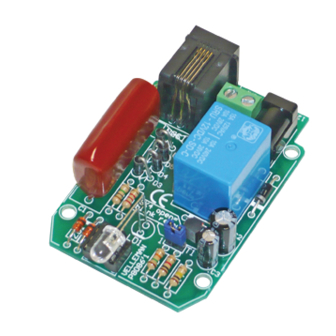

Telephone ring detector with relay output, simply connect in parallel with phone line, accepts standard adaptor & telephone plug
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Total solder points: 61
Difficulty level: beginner 1  2  3  4  5  advanced

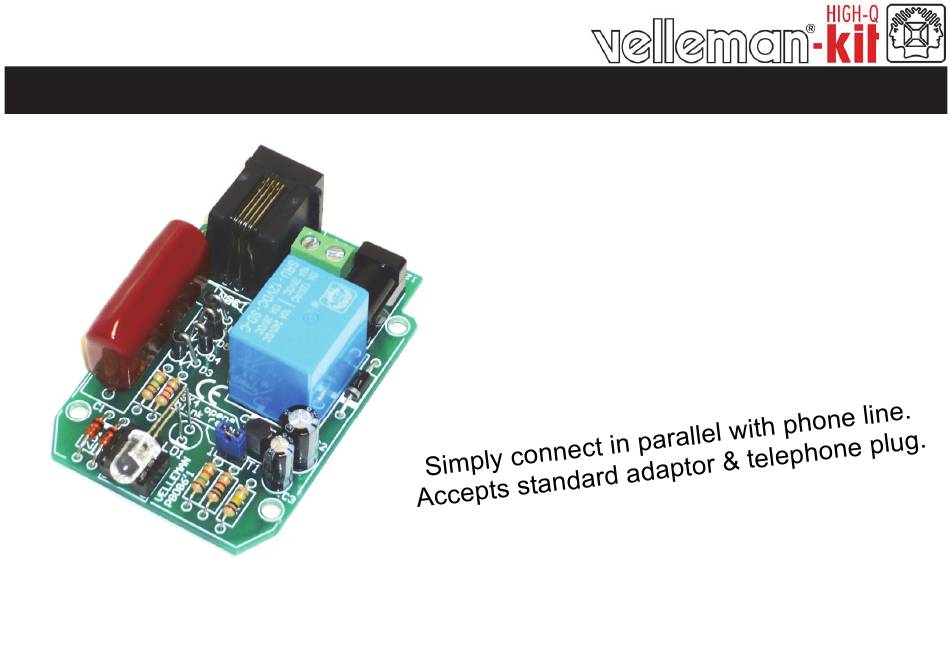

TELEPHONE RING DETECTOR WITH RELAY OUTPUT
K8086
ILLUSTRATED ASSEMBLY MANUAL
H8086IP-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the High-Q Velleman-kit K8086 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Velleman High-Q Velleman-kit K8086

Summary of Contents for Velleman High-Q Velleman-kit K8086

  • Page 1 Total solder points: 61 Difficulty level: beginner 1  2  3  4  5  advanced TELEPHONE RING DETECTOR WITH RELAY OUTPUT K8086 ILLUSTRATED ASSEMBLY MANUAL H8086IP-1...
  • Page 2 Features & Specifications Features:  simply connect in parallel with phone line  powerful led flashes when phone rings  the unit will feature a relay output if connected to a 12VDC power supply  relay output: continuous or on/off to the rhythm of ringing of the telephone ...

  • Page 3: Assembly Hints

    Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools:  A good quality soldering iron (25-40W) with a small tip. ...
  • Page 4 REMOVE THEM FROM THE TAPE ONE AT A TIME ! DO NOT BLINDLY FOLLOW THE ORDER OF THE COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR VALUE ON THE PARTS LIST!

  • Page 5: Terminal Blocks

    Construction 4. IC socket, Watch the 7. Transistor 1. Diodes. Watch the polarity! position of the notch!  D1 : 1N4148  T1 : BC557B D...  D2 : 1N4007 CATHODE T...  IC1 : 6P 2. Zener diodes. Watch the 5.
  • Page 6 Construction 10. DC-jack 12. Modular Jack 15. IC, watch the position of the notch! SK... +  SK2 : 12VDC  SK1 : 4p (type RJ11)  IC1 : 4N27 11. LED. Watch the polarity!  LD1 : 5mm (super red) 13.

  • Page 7: Connection Examples

    Connection samples 16. Connection examples 1. LED flash 2. LED flash + relay ouput output mode selection blinking relay output continuous relay output Phone Phone Telephone line Company Company Telephone line 24V / 1A 12VDC...
  • Page 8 Assembly 17. Assembly ADHESIVE STRIP...

  • Page 9: Schematic Diagram

    Schematic diagram Schematic diagram.
  • Page 11 VELLEMAN NV Legen Heirweg 33 9890 Gavere Belgium Europe www.velleman.be www.velleman-kit.com...
  • Page 12 VELLEMAN NV Legen Heirweg 33, B-9890 GAVERE Belgium (Europe) Modifications and typographical errors reserved © Velleman nv. H8086IP'1 (rev.1) - 2014 5 4 1 0 3 2 9 3 8 4 2 1 0...
