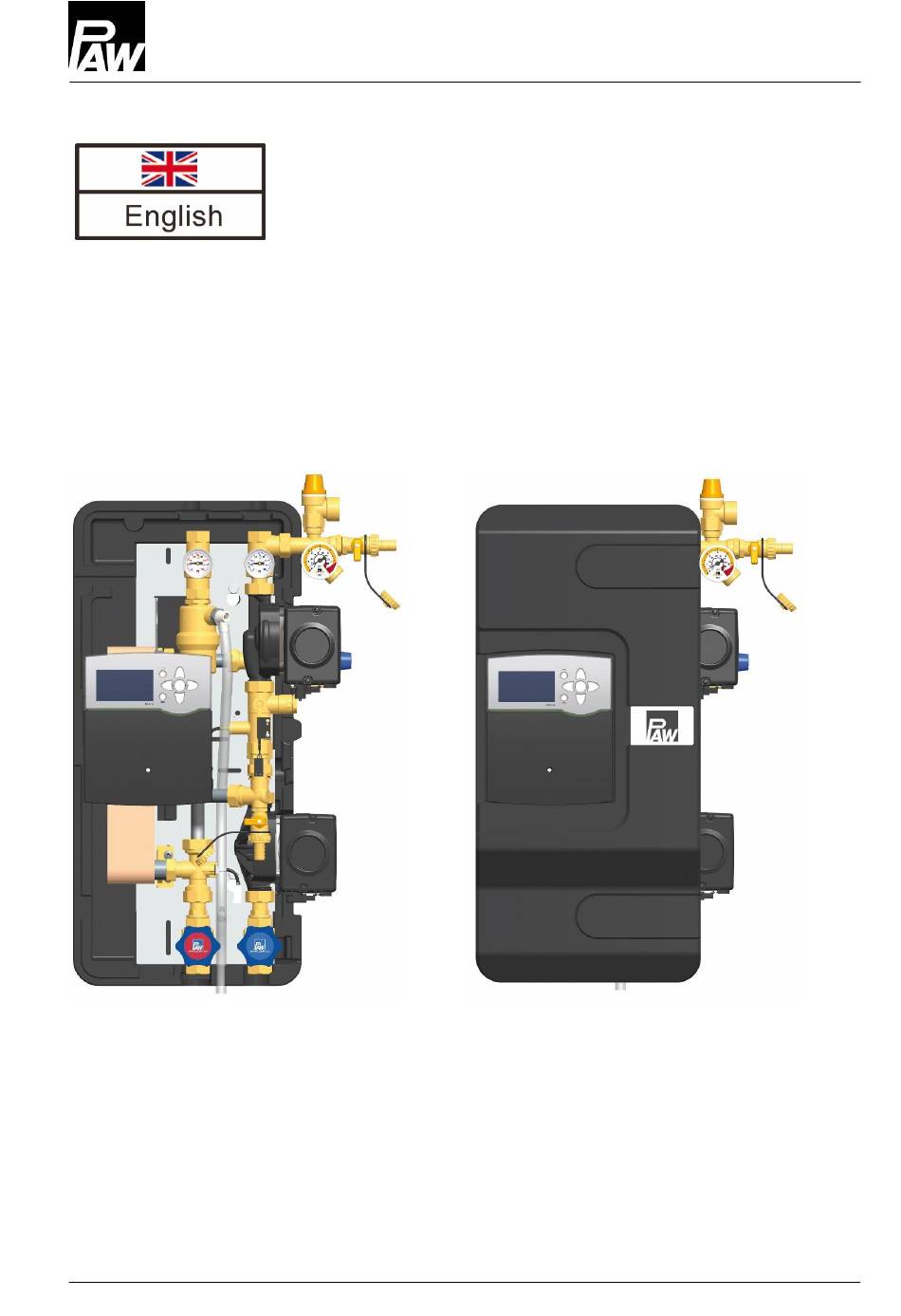

- Page 1 PAW GmbH & Co. KG Böcklerstr. 11, D-31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Commissioning Instructions Transfer station DN 15 SolexMini TW [Hydraulics] 2016/05 996091425-mub-en – V04...
-
Page 2: Table Of Contents
Translation of the original instructions PAW GmbH & Co. KG We reserve the right to make technical changes without notice! Böcklerstraße 11 Printed in Germany – Copyright by PAW GmbH & Co. KG D-31789 Hameln, Germany 996091425-mub-en – V04 2016/05... -
Page 3: General Information
About these instructions These instructions describe the functions, installation, commissioning and operation of the transfer station SolexMini TW. The chapters called [specialist] are intended for specialists only. For other components of the solar system, such as collectors, storage tanks, expansion tanks and controllers, please observe the instructions of the corresponding manufacturer. -
Page 4: About This Product
1 General information About this product The SolexMini TW is a premounted group of valves and fittings, checked for tightness and used to transfer the heat from the primary circuit (solar circuit) to the secondary circuit (domestic hot water or storage tank circuit). -
Page 5: Designated Use
Due to its design, the station must only be mounted and operated as described in these instructions! Only use PAW accessories with the transfer station. Improper usage excludes any liability claims. Schematic structure... -
Page 6: Safety Instructions
2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist]. - Page 7 2 Safety instructions CAUTION Risk of burns! The valves, fittings and pumps may heat up to more than 100 °C during operation. The insulating shell must remain closed during operation. CAUTION Personal injury and damage to property due to overpressure! By closing the two ball valves in the primary circuit, the safety group is separated from the heat exchanger.
-
Page 8: Assembly And Installation [Specialist]
3 Assembly and installation [specialist] 3 Assembly and installation [specialist] The location of installation must be dry, load-carrying, frost-proof and protected against ultraviolet radiation. Furthermore, the access to the control and safety equipment must be guaranteed at all time during operation! The discharge lines of the pressure relief valves must be conducted into heat-resistant collecting containers of corresponding size. - Page 9 3 Assembly and installation [specialist] 1. Remove the station from the packaging. 2. Copy the mounting holes to the mounting surface. You can find a corresponding drilling template on the paper board under the station. 3. Drill the holes and insert appropriate wall plugs into the holes.
- Page 10 3 Assembly and installation [specialist] 6. Connect the transfer station to the installation by using the piping: ① Solar flow from the collector ② Solar return to the collector ③ Flow to the storage tank ④ Return from the storage tank All thread connections have ¾"...
-
Page 11: Controller Connection
3 Assembly and installation [specialist] Controller connection WARNING Risk to life and limb due to electric shock! Prior to commencing electrical work on the controller, pull the mains plug! Only after completing all installation work as well as the flushing and filling, the mains plug of the controller can be plugged into a socket. -
Page 12: Commissioning [Specialist]
4 Commissioning [specialist] 4 Commissioning [specialist] Please observe the following safety instructions regarding the commissioning of the station: WARNING Risk of burns and scalding! The fittings can heat up to more than 100 °C. Therefore, it is not allowed to flush or fill the system if the collectors are hot (intense solar radiation). -
Page 13: Flushing And Filling The Secondary Circuit
4 Commissioning [specialist] Flushing and filling the secondary circuit NOTICE Note regarding the expansion tank To prevent that dirt particles of the solar system are washed into the expansion tank, some manufacturers recommend to disconnect the expansion tank from the solar circuit during flushing and filling. -
Page 14: Flushing And Filling The Solar Circuit
4 Commissioning [specialist] Flushing and filling the solar circuit The valves and fittings required to flush and fill the station are integrated in the transfer station. Make sure not to wash dirt particles into the heat exchanger and the expansion tank. Therefore, only use flush and fill stations with fine filters. - Page 15 4 Commissioning [specialist] Airstop The Airstop with manual vent valve is used to vent the solar installation. To ensure a perfect venting of the solar circuit, the flow velocity in the flow line must be at least 0.3 m/s. Pipe diameter [mm] Flow rate at 0.3 m/s ∅...
- Page 16 4 Commissioning [specialist] 1. Disconnect the expansion tank from the solar installation. This avoids that dirt particles still present in the pipes are washed into the expansion tank. 2. Put the check valve out of operation by turning the ball valve [a] into position 45° (see page 14).
- Page 17 4 Commissioning [specialist] 11. Reduce the pressure on the drain valve [d] to the operating pressure. 12. Connect the expansion tank to the solar circuit and set the operating pressure of the solar system by means of the flush and fill station (see instructions regarding the expansion tank).
- Page 18 4 Commissioning [specialist] 18. Remove the hoses of the flush and fill station and screw the sealing caps onto the fill and drain valves. The sealing caps only serve to protect the valves against dirt. They are not designed to take up high system pressures.
-
Page 19: Parameters: Solexmini Tw With Controller Sc5.14
Thus, a proper functioning of the installation is ensured. You will find a detailed description of the operation of the controller in the separate controller manual. Preset system SolexMini TW (1 collector; 1 storage tank) 2016/05... -
Page 20: Maintenance [Specialist]
5 Maintenance [specialist] 5 Maintenance [specialist] Depressurise the installation for service and maintenance work on the SolexMini. WARNING Risk of burns and scalding! The valves, fittings and the solar fluid can heat up to more than 100 °C. The solar fluid can escape as vapour and cause scalding. ... -
Page 21: Draining The Solar Circuit
5 Maintenance [specialist] Draining the solar circuit 1. Switch off the controller and make sure that a restart is not possible. 2. Open the check valves in the flow and return ball valve [a|b] by turning them into position 45° (see page 14). 3. -
Page 22: Spare Parts [Specialist]
The serial number is placed in the upper right corner of the support sheet in the station. In case of a complaint, please send us the completely filled commissioning report on page 28. Primary circuit SolexMini TW (6091425) 996091425-mub-en – V04 2016/05... -
Page 23: Secondary Circuit Solexmini Tw (6091425)
6 Spare parts [specialist] Secondary circuit SolexMini TW (6091425) 2016/05 996091425-mub-en – V04... -
Page 24: Technical Data
7 Technical data 7 Technical data Dimensions SolexMini TW Height (total) 679 mm Width (total) 426 mm Depth (total) 263 mm Centre distance, flow/return 82 mm Pipe connections ¾" internal thread Connection for expansion tank ¾" external thread, flat sealing Outlet pressure relief valve ¾"... -
Page 25: Dimensional Drawing Solexmini Tw
7 Technical data Dimensional drawing SolexMini TW Pressure drop characteristic curve SolexMini TW Flow rate [l/h] 2016/05 996091425-mub-en – V04... -
Page 26: Function Of The Check Valves [Specialist]
8 Function of the check valves [specialist] 8 Function of the check valves [specialist] Within their application range, the check valves of this station prevent unwanted gravity circulation. The efficiency of the check valves depends on: the installation height the temperature difference between the storage tank and the collector ... - Page 27 8 Function of the check valves [specialist] Do you wish to get further information? The density of the solar fluid decreases considerably with rising temperature. In the case of high installations and large temperature differences, the difference in density causes gravity circulation.
-
Page 28: Commissioning Report
Pressure relief valve ⃞ Checked Check valves ⃞ Checked Plumbing company Date, signature PAW GmbH & Co. KG www.paw.eu Böcklerstraße 11 Phone: +49 (0) 5151 9856 - 0 D-31789 Hameln, Germany Fax: +49 (0) 5151 9856 - 98 996091425-mub-en – V04...
