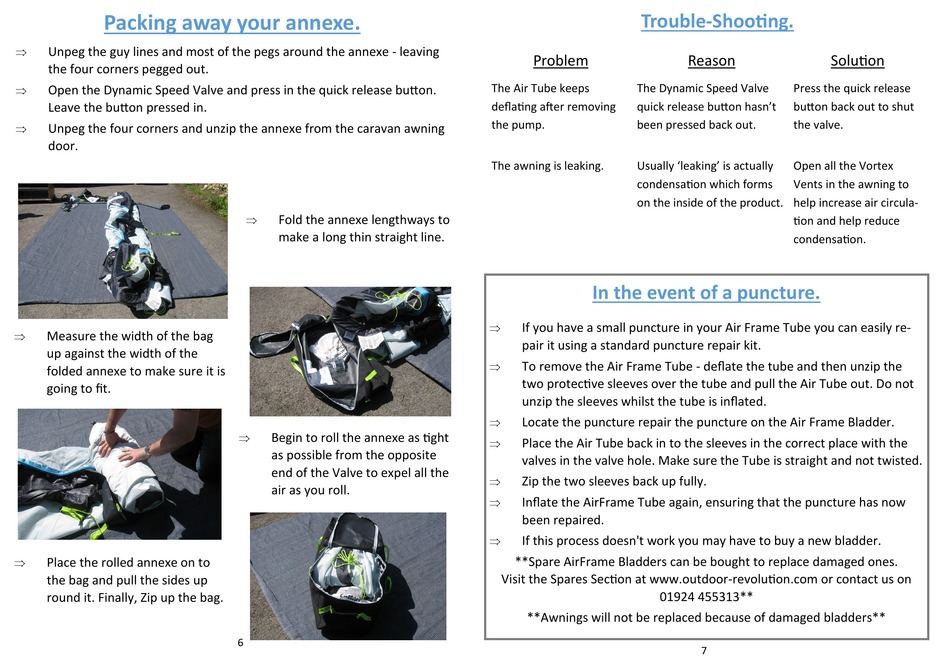

Packing away your annexe.

Unpeg the guy lines and most of the pegs around the annexe - leaving
the four corners pegged out.

Open the Dynamic Speed Valve and press in the quick release button.
Leave the button pressed in.

Unpeg the four corners and unzip the annexe from the caravan awning
door.

Measure the width of the bag
up against the width of the
folded annexe to make sure it is
going to fit.

Place the rolled annexe on to
the bag and pull the sides up
round it. Finally, Zip up the bag.

Fold the annexe lengthways to
make a long thin straight line.

Begin to roll the annexe as tight
as possible from the opposite
end of the Valve to expel all the
air as you roll.
6
Trouble-Shooting.
Problem
The Air Tube keeps The Dynamic Speed Valve
deflating after removing quick release button hasn't
the pump. been pressed back out.
The awning is leaking. Usually 'leaking' is actually
condensation which forms
on the inside of the product.
In the event of a puncture.

If you have a small puncture in your Air Frame Tube you can easily re-
pair it using a standard puncture repair kit.

To remove the Air Frame Tube - deflate the tube and then unzip the
two protective sleeves over the tube and pull the Air Tube out. Do not
unzip the sleeves whilst the tube is inflated.

Locate the puncture repair the puncture on the Air Frame Bladder.

Place the Air Tube back in to the sleeves in the correct place with the
valves in the valve hole. Make sure the Tube is straight and not twisted.

Zip the two sleeves back up fully.

Inflate the AirFrame Tube again, ensuring that the puncture has now
been repaired.

If this process doesn't work you may have to buy a new bladder.
**Spare AirFrame Bladders can be bought to replace damaged ones.
Visit the Spares Section at www.outdoor-revolution.com or contact us on
01924 455313**
**Awnings will not be replaced because of damaged bladders**
Reason Solution
Press the quick release
button back out to shut
the valve.
Open all the Vortex
Vents in the awning to
help increase air circula-
tion and help reduce
condensation.
