Commissioning
• Push the labelled male and female connectors
together to power the demister pad.
• Refit the mirror front onto the wall back. Ensure that
the seals are correctly located before securing.
Clock Operation
• Press the MODE key once, the hour numbers will
flash. Then press UP or DOWN to select the hour you
want.
• Press the MODE key again, the minute numbers will
Shaver Socket Instructions
• The shaver socket is powered by a 20W isolating
transformer and is only intended for use with electric
shavers, electric toothbrush chargers and similar
products.
• Any appliance connected to the socket must not
Demister Operation
• Simply turn on the demister switch on the side. The
demister pad will warm the mirror surface.
• We recommend cleaning with a soft dry cloth. Do
not use solvents or abrasive cleaners as these could
damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
Live Voltages may be present in this unit even when turned of or when completely disconnected. For your safety,
always switch off the supply before changing lightbulbs, or cleaning.
The mirror must be replaced immediately should it become cracked or damaged. This fitting must
not be used without the mirror in place.
www.saxbylighting.com
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
• Activate your new LED mirror by swiping your hand in
front of the sensor.
flash. Then press UP or DOWN to select the minute
you want.
• Finally press the MODE key again, the clock will be
stop flashing and be set to the correct time.
exceed the 20W power output as this could cause
damage and overheating to occur.
• Always check your appliance instructions to ensure
the power requirements are less than 20W.
• The demisting effect will spread approximately 10 -
20% further than the pad itself.
• Mirror – Use a damp cloth or a propriety glass
cleaner. Do not use abrasive materials as these will
damage the finish.
Iss.3 05012015
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

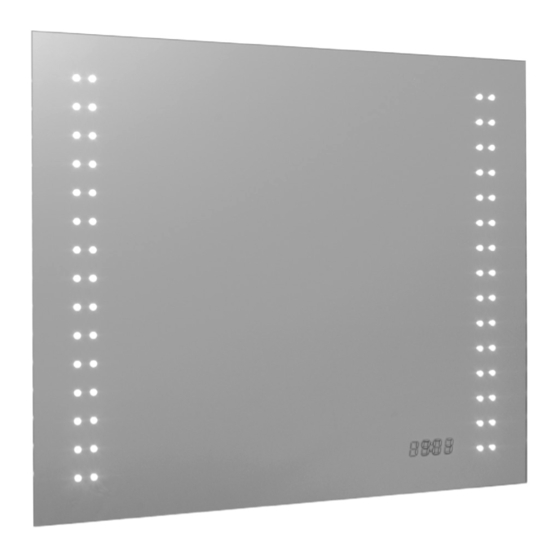

Beta Mirror
39233
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saxby Lighting Beta Mirror 39233
Summary of Contents for Saxby Lighting Beta Mirror 39233
- Page 1 Instruction leaflet Commissioning • Push the labelled male and female connectors • Replace fuse or circuit breaker and switch on. Your together to power the demister pad. light is now ready for use. Beta Mirror • Refit the mirror front onto the wall back. Ensure that • Activate your new LED mirror by swiping your hand in the seals are correctly located before securing. front of the sensor. 39233 Clock Operation • Press the MODE key once, the hour numbers will flash. Then press UP or DOWN to select the minute flash. Then press UP or DOWN to select the hour you you want.
- Page 2 This product is suitable for use in Zone Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and 2 and outside Zones of a bathroom. satisfactory operation of this product. Please retain these instructions for future reference. See diagram. If this unit is being fitted in a room containing a bath or shower, a 30mA RCD must be used, Warning in accordance with IEE regulations. This is a Class 1 product and must be earthed This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should Please read these instructions carefully before be scrapped. commencing any work. This product is not suitable for dimming. This unit must be fitted by a competent and qualified electrician. This product is rated at IP44. Install in accordance with IEE Wiring regulations and This product contains a demister pad. If this pad is current Building Regulations. damaged in anyway then it should be replaced by a qualified electrician. To prevent electrocution switch off at mains supply Installation before installing or maintaining this fitting. Ensure Waste electrical products should not be disposed of other persons cannot restore the electrical supply with household waste. Please recycle where facilities Existing fittings must be completely removed before the holes. Ensure that the product is level.
