Atag KA2512WD Instructions For Use Manual

/beverage cooler with a freezer compartment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions for use
Wine/beverage cooler with
a freezer compartment
KA2512WD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA2512WD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atag KA2512WD

Summary of Contents for Atag KA2512WD

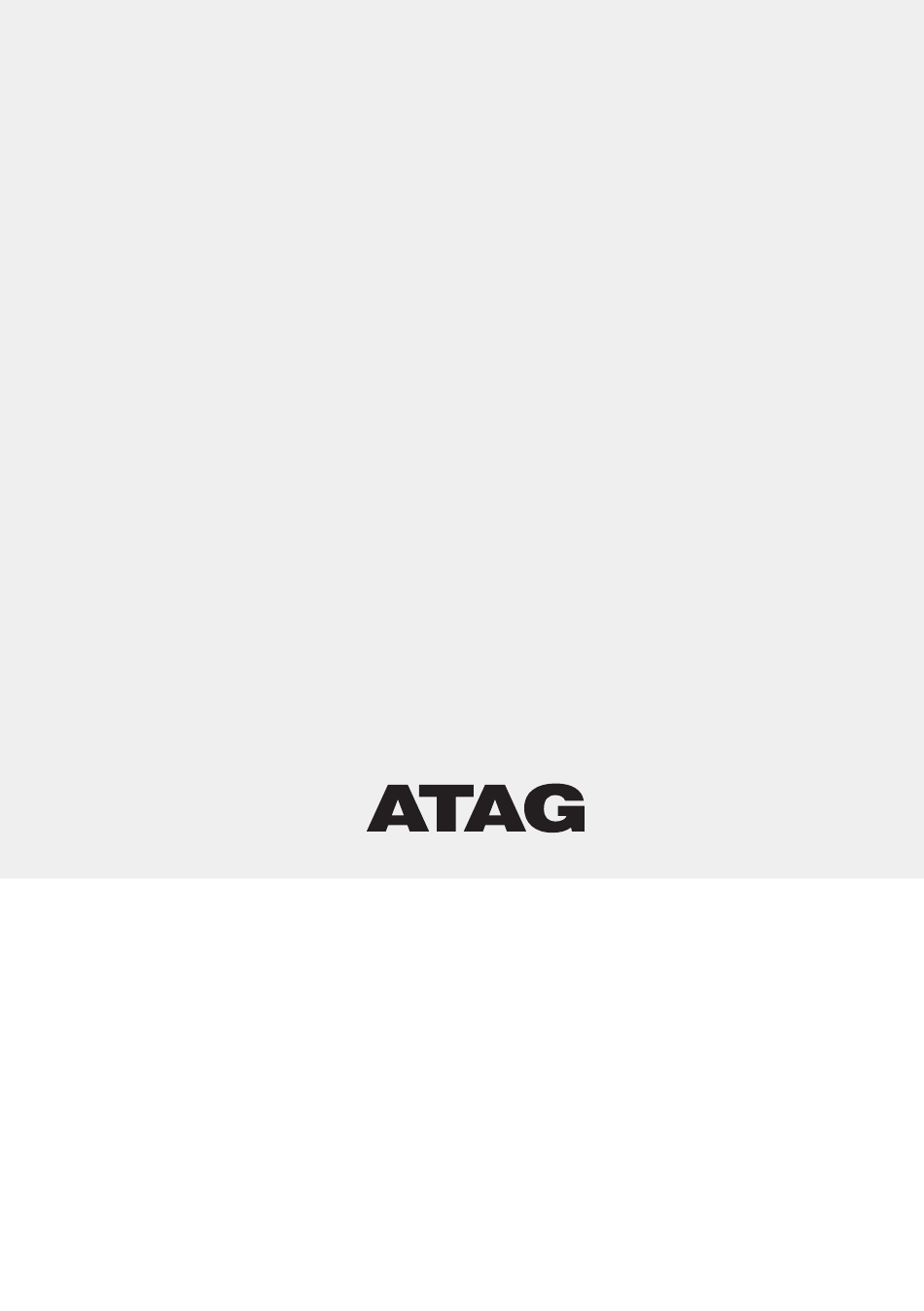

  • Page 1 Instructions for use Wine/beverage cooler with a freezer compartment KA2512WD...
  • Page 2 We thank you for the confidence you have shown by purchasing our appliance which is designed to simplify your life. To make the use of the product easier, we have supplied detailed instructions for use, and installation instructions supplied on a separate sheet. The instructions should allow you to learn about your new appliance as quickly as possible.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Safety instructions Advice for saving energy with refrigeration appliances Installation and connection Changing the door opening direction Appliance description Appliance description Operating the appliance Appliance interior equipment Storing and freezing food Storing food in the ZeroZone compartment Freezing fresh food and storing frozen food Defrosting and cleaning the appliance Defrosting the appliance...

  • Page 4: Introduction

    INTRODUCTION Safety instructions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;...
  • Page 5 INTRODUCTION Safety instructions The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet). If the power cord is damaged, it must be replaced by a service technician or other adequately trained person.
  • Page 6 INTRODUCTION Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
  • Page 7 INTRODUCTION Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.
  • Page 8 INTRODUCTION Important information on the use of appliance WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • Page 9 INTRODUCTION Environment protection The packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. Removing an obsolete appliance To protect the environment, take the obsolete appliance to an authorized home appliance collection centre.

  • Page 10: Advice For Saving Energy With Refrigeration Appliances

    INTRODUCTION Advice for saving energy with refrigeration appliances • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter ‘Cleaning the Appliance). •...

  • Page 11: Installation And Connection

    INTRODUCTION Installation and connection Selecting the room • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specified in the table. The appliance class is indicated on the rating plate / label with the basic information of the appliance. Class Temperature Relative Humidity...
  • Page 12 INTRODUCTION Installing the appliance Appliance installation should be carried out by at least two persons to avoid any physical injury or damage to the appliance. • Spacers are fitted on the corners of the doors. Remove them. • The appliance must stand level or tilted slightly to the back, stable on a solid base.
  • Page 13 INTRODUCTION • The appliance may stand alone or it may be placed next to a cupboard or a wall. Consider the clearance required to fully open the door in order to allow pulling out the drawers and shelves (see installation diagram). min 1220 630 675 1194...
  • Page 14 INTRODUCTION 1200 min. 50 mm min. 40 mm 1078 1850 Side-by-side installation: We recommend leaving the side-by-side installation of two appliances to a service technician. If you decide to do this yourself, observe the instructions supplied with the side-by-side installation kit. EN 14...
  • Page 15 INTRODUCTION Connecting the appliance • Connect the appliance to the power mains using the power cord. The wall outlet should be fitted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information of the appliance. •...

  • Page 16: Changing The Door Opening Direction

    INTRODUCTION Changing the door opening direction Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, hex key No. 4, flat screwdriver The procedure to change the door opening direction should be carried out by at least two persons. Remove the upper hinge cover (A). Unscrew the upper hinge (B) and remove the upper door (C).
  • Page 17 INTRODUCTION EN 17...

  • Page 18: Appliance Description

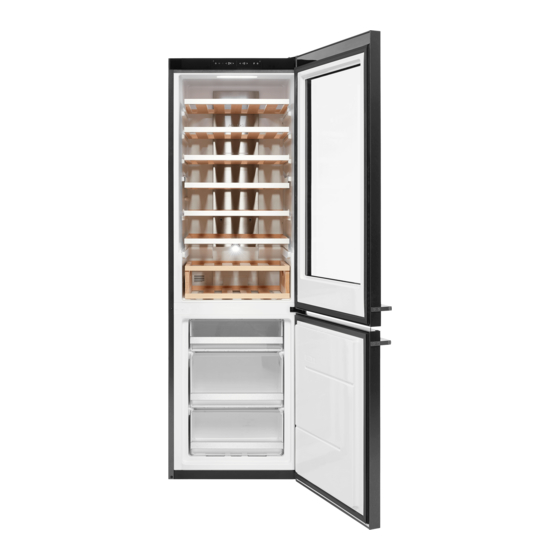

    APPLIANCE DESCRIPTION Appliance description Appliance interior equipment may change according to the appliance model. Refrigerator compartment Control unit LED lighting Bottle shelves Portable bottle case Freezer/ZeroZone compartment** Freezer drawers/ZeroZone compartment • The shelves are protected against pulling out. • The drawers are protected against pulling out. To remove a drawer from the appliance, pull it out as far as it will go, then lift at the front and pull out completely.

  • Page 19: Operating The Appliance

    APPLIANCE DESCRIPTION Operating the appliance Appliance on key and refrigerator compartment off key Acoustic alarm off key and key for child safety lock on/off Lighting on/off key Refrigerator compartment temperature setting keys Refrigerator compartment set temperature display Freezer compartment on key and appliance off key Freezer/ZeroZone switch key Intensive freezing (boost) function on/off key (when the freezer compartment operates in the ZeroZone mode, the H key has no function)
  • Page 20 APPLIANCE DESCRIPTION Switching the appliance on/off Switching the appliance on: Press the A key. The refrigerator compartment can be switched off so that only the freezer compartment is on: • Briefly press the F key to switch on the freezer compartment only; •...
  • Page 21 APPLIANCE DESCRIPTION Adjusting the temperature in the appliance • After the appliance is switched on, it may take several hours for the set temperatures to be reached. Do not place any food into the refrigerator before the temperature drops to the selected setting. •...
  • Page 22 APPLIANCE DESCRIPTION • Set the temperature in the freezer compartment using the I keys. lower temperature; higher temperature • The temperature in the freezer compartment can be set in range from -24 °C to -16°C (or from -2 °C to +3 °C if the ZeroZone compartment is activated with the G key).
  • Page 23 APPLIANCE DESCRIPTION Intensive freezing (boost) function • Use this setting after switching on the appliance for the first time, before cleaning, or 24 hours before inserting a large amount of food. To activate the intensive freezing (boost) function, press the H key. FF will appear on display J.
  • Page 24 APPLIANCE DESCRIPTION Extreme freezing (upper drawer of the freezer compartment) • In order to quickly freeze fresh food, use the XtremeFreeze function that is only active in the upper drawer of the freezer compartment. It involves intensive blowing of cool air in that part of the appliance. Faster freezing will retain more vitamins, minerals, and nutrients in the food for a longer period of time.
  • Page 25 APPLIANCE DESCRIPTION Controlling the ZeroZone compartment • The entire freezer compartment can be turned into a ZeroZone compartment. The temperature in this compartment is around 0 °C. • The ZeroZone compartment allows storing a wide variety of fresh food to keep up to three times longer than in a conventional refrigerator. The food stays fresh longer, retaining the flavour and nutrients.
  • Page 26 APPLIANCE DESCRIPTION Appliance lighting • Lighting in the entire refrigerator compartment is switched on every time you open the door, and it is switched off every time you close the door, except in the special operating mode described below. • Press the C key to activate the continuous LED lighting for the entire refrigerator compartment.
  • Page 27 APPLIANCE DESCRIPTION High temperature alarm If the temperature inside the appliance is too high, acoustic alarm will be activated and the B key and the temperature settings in displays E and/or J will flash. If the temperature is too high in the refrigerator compartment, the temperature indicated on display E will flash;...
  • Page 28 APPLIANCE DESCRIPTION Open door alarm If the refrigerator or freezer compartment door is open for more than two minutes, an acoustic alarm will be activated and the B key will flash. • To acknowledge and turn off the acoustic alarm, close the door or press the B key. Child safety lock •...

  • Page 29: Appliance Interior Equipment

    APPLIANCE DESCRIPTION Appliance interior equipment Bottle shelves • The shelves are intended for storing bottles. • Maximum load on each shelf is 13 kg. Shelf removal: The shelves are secured in place with a rail. When removing the shelf, unscrew the two screws on the rail, which is installed on the right side in the back of the appliance, behind the shelves.
  • Page 30 APPLIANCE DESCRIPTION Note: The shelf is not intended to be partially pulled out. Therefore, do not pull out a full shelf from the appliance. Note: Do not stack bottles on the shelf in several layers. • There is a bottle case at the bottom of the wine cooler compartment.
  • Page 31 APPLIANCE DESCRIPTION AdaptTech Innovative sensor technology allows adjusting appliance operation to the user's habits or behaviour. Adaptive intelligent system monitors, analyzes, and records on a daily and weekly basis the use of appliance and adapts appliance operation to the perceived patterns. If the appliance is able to anticipate increased frequency of door opening, the appliance will automatically lower the temperature before such time to prevent the increase of food temperature as the door is opened more often.

  • Page 32: Storing And Freezing Food

    STORING AND FREEZING FOOD Storing food in the ZeroZone compartment Important warnings regarding food storage • Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards have a decisive impact on the quality of food storage. •...

  • Page 33: Freezing Fresh Food And Storing Frozen Food

    STORING AND FREEZING FOOD Freezing fresh food and storing frozen food Freezing procedure Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior;...
  • Page 34 STORING AND FREEZING FOOD Important warnings on freezing • Only use the freezer to freeze food appropriate for freezing. Always use quality and fresh food. • Select the most suitable packaging for the food and use the packaging correctly. • Make sure the packaging is air and water tight so that the food does not dry out and loose its vitamins.
  • Page 35 STORING AND FREEZING FOOD Frozen food storage time Recommended storage time in the freezer Type of food Time fruit, beef from 10 to 12 months vegetables, veal, poultry from 8 to 10 months venison from 6 to 8 months pork from 4 to 6 months finely chopped or ground meat 4 months...

  • Page 36: Defrosting And Cleaning The Appliance

    DEFROSTING AND CLEANING THE APPLIANCE Defrosting the appliance Defrosting a NoFrost freezer • The NoFrost freezer will defrost automatically. Occasional frost that may appear on the walls will disappear automatically. • Build-up of ice or frost in the freezer compartment can be a result of abnormal use of appliance (door opened too frequently and/or too long, door not properly closed etc.).

  • Page 37: Cleaning The Appliance

    DEFROSTING AND CLEANING THE APPLIANCE Cleaning the appliance Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter ‘Operating the appliance’) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface.

  • Page 38: Other

    OTHER Troubleshooting Problem Cause or remedy: Appliance is • Make sure there is voltage in the power outlet and that the appliance is switched on. connected to the power mains but it does not work. Cooling system • Too high environment temperature. •...
  • Page 39 OTHER Problem Cause or remedy: Door is difficult to • If you are trying to open the freezer door after just having closed it, this could be difficult to do. open: As you open the door, some cool air escapes from the appliance and it is replaced by warm air from the environment.

  • Page 40: Information About Appliance Noise

    OTHER Information about appliance noise Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance. •...
  • Page 41 EN 41...
  • Page 42 EN 42...
  • Page 44 The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the warranty card. en (01-19)
