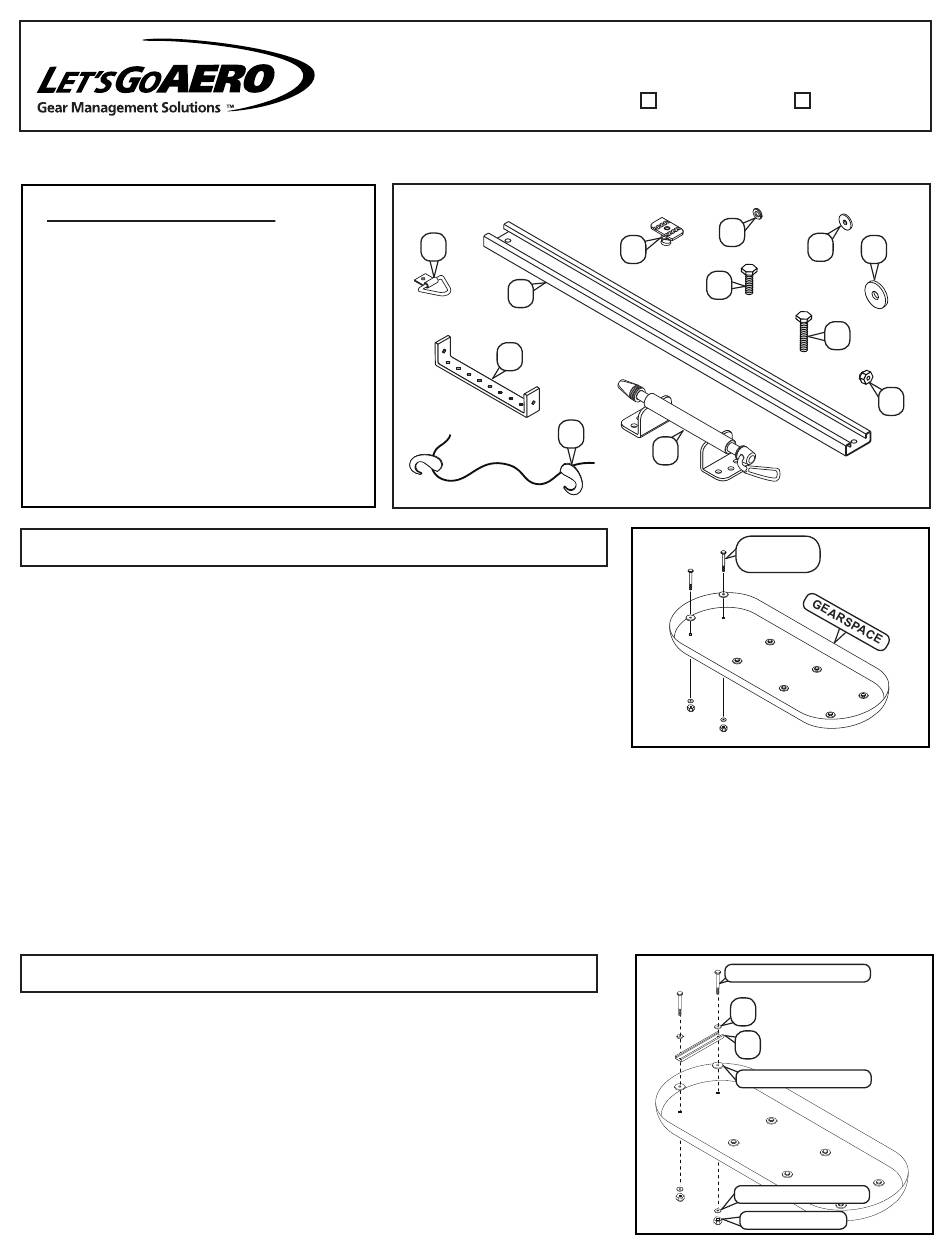

ASSEMBLY AND OPERATION
PARTS LIST - PER BIKE
Qty Description
A
1
C-CHANNEL
B
2
U-BRACKET
C
1
FORK MOUNT
D
2
LARGE HEX BOLT
E
2
SMALL HEX BOLT
F
2
SPRING NUT
G
6
LARGE FLAT WASHER
H
3
SMALL FLAT WASHER
J
2
HEX NUT
K
2
SPLIT RING WASHER
L
1
D-RING
M
1
BUNGEE
Step 1:
NOTE: The GearSpace Bike Mount is a Universal Bicycle
Mounting System created to accommodate and transport bikes
inside the GearSpace Cargo Carrier. In order to achieve a custom
fit for your bicycle, this Bike Mount can be assembled in many
different configurations. The steps below outline some common
arrangements.
The GearSpace Bike Mount attaches to the carrier using two (2)
existing Hex Bolts located on the GearSpace floor attaching the carrier to the wings of the platform [see your
GearSpace Manual if you need clarification on these locations]. Prepare your GearSpace by choosing your
preferred installation position using two bolts on either located on either the drivers or passenger side of the
carrier. Using a 10mm Socket and Wrench, remove the chosen two (2) existing Hex Bolts from the carrier floor
as set the bolts and hardware aside. Wipe down the area with a damp cloth. [Figure 1]
NOTE: For installation of two (2) GearSpace Bike Mounts, one position will be one the drivers side and one on
the passenger side on the opposite end of the carrier.
Step 2:
Install the C-Channel [A] in the prepared location on the GearSpace
Floor using the removed Hex Bolts and hardware from the above step,
also including a Large Washer between the exisitng Hex Bolt and
C-Channel.
[Figure 2]
GS Bike Mounts Manual-070218
TOOL: 10MM SOCKET WRENCH OR WRENCH X2
TOOL: 10MM SOCKET WRENCH OR WRNECH X2
Bike Mount System For GearSpace Cargo Carrier Use
L
A
B
M
PAGE 1 OF 5
GearSpace
Bike Mounts
®
P/N HGK963
K
F
E
C
[Figure 1]
EXISITING
HEXBOLTS
[Figure 2]
EXISTING HEX BOLTS
G
A
EXISTING WASHERS
EXISTING WASHERS
EXISTING NUTS
P/N HGK970
H
G
D
J
*GEARSPACE
DRAWN
SHORT FOR
CLARITY
Advertisement
Table of Contents
Related Manuals for Let's Go Aero GearSpace HGK963
Summary of Contents for Let's Go Aero GearSpace HGK963
- Page 1 GearSpace Bike Mounts ® Bike Mount System For GearSpace Cargo Carrier Use P/N HGK963 P/N HGK970 ASSEMBLY AND OPERATION PARTS LIST - PER BIKE Qty Description C-CHANNEL U-BRACKET FORK MOUNT LARGE HEX BOLT SMALL HEX BOLT SPRING NUT LARGE FLAT WASHER SMALL FLAT WASHER HEX NUT SPLIT RING WASHER...
- Page 2 Step 3: Install Spring Nut [F] into the C-Channel [A] by inserting the Spring Nut parallel to the C-Channel Track. [Figure 4] Then, applying downward pressure rotate the Spring Nut toward it’s grooved edge until the “teeth” located on the Spring Nut lock into place with the edges of the C-Channel. [Figure 5] The Spring Nut should be perpendicular to the C-Channel when done.
- Page 3 LOW FORK POSITION: Connect the Fork Mount [C] to the shorter arm of the U-Brackets [B] using Small Hex Bolts [E], Small Washers [H], Large Washers [G], and Hex Nuts [J] as shown. [Figure 9] Using the Large Hex Bolts [D], Large Washers [G] and Split Ring Washers [K], install through the opposite ends of the U-Brackets [B] into the Spring Nuts as shown [Figure 10 &...
- Page 4 Step 5: TOOL: 10MM SOCKET OR WRENCH X2 In the same manor as Steps 1 & 2, the [Figure 15] D-Ring [L] is installed directly into the carrier floor. Installed the D-Ring two hole positions away from the Fork Mount Assembly EXISTING HEX BOLT into the floor [Figure 15] using the existing floor hardware and a Small...
- Page 5 OPERATION & BIKE INSTALLATION: The bicycle fork mount is a standard bicycle Fork mount/Skewer system intended for most styles bicycles. Consult your bicycle manual to confirm compatibility of the GearSpace bike mount. Prepare your bicycle for mounting by removing the bicycles front tire exposing the bicycles’ “Fork” (refer to your Bicycles Manual for proper tire removal).
