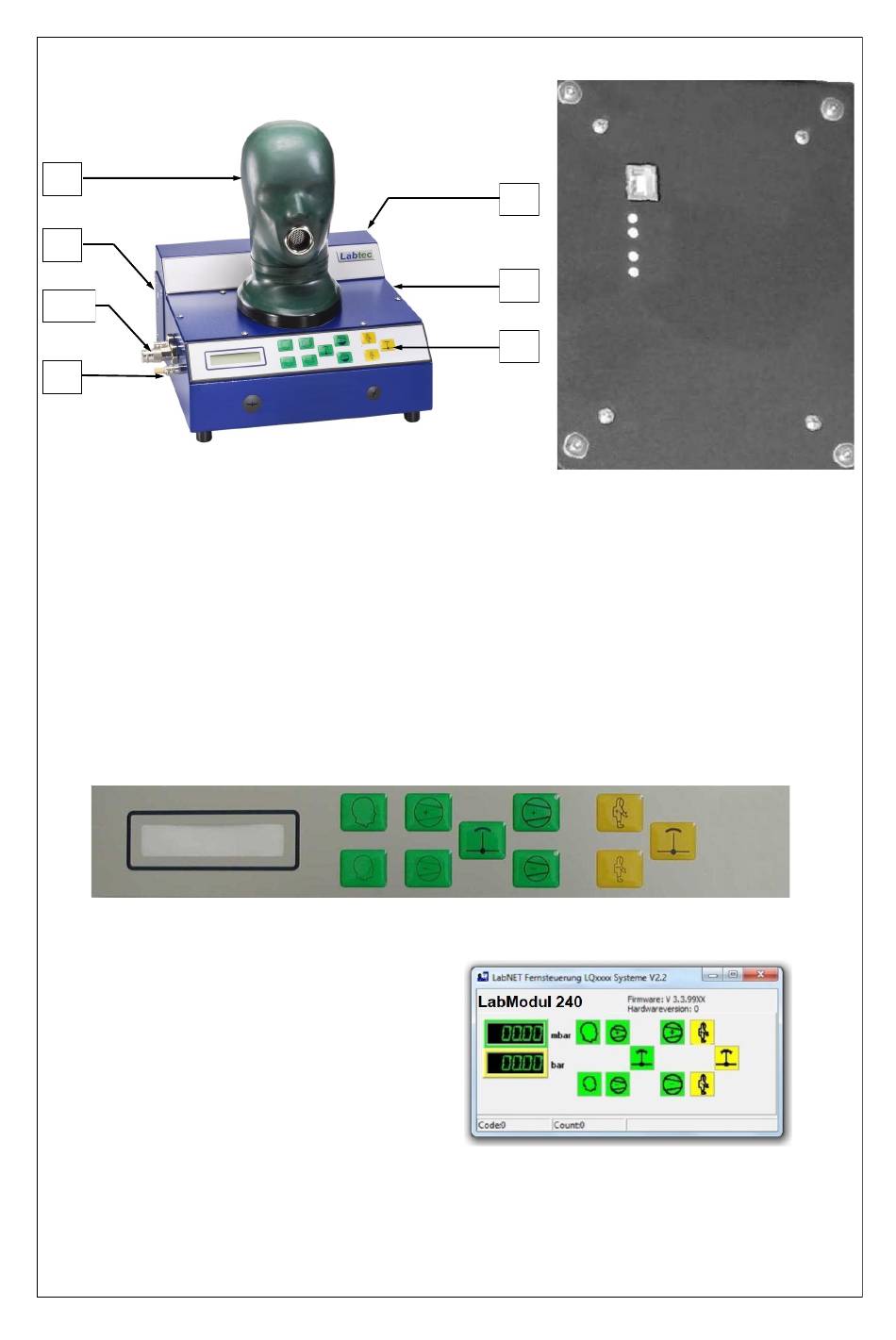

5. operating elements

Bedienelemente
C
H
D, E
F
A test stand housing
B Panel (optional)
C Test head / breathing connection
D Medium pressure Device connection (plug
nipple)
E Medium pressure regulator connection
(coupling)
F CPS - Filling connection and device
venting
G Power supply 230 V AC with switch
1, 2
1 LCD Display Low Pressure Display
2 LCD Display Medium Pressure Display
3 Inflate test head, sensing valve
4 Empty test head, tactile valve
5 Generate overpressure 5 l/min, sensing valve
6 Generate vacuum 5 l/min, push button valve
7 Relieve low pressure, sensing valve
8 Exhalation 10 l/min, switching valve
9 Inhalation 10 l/min, switching valve
10 Fill CPS, switching valve
11 Empty CPS, switching valve
12 Relieve medium pressure, tactile valve
User Manual LabModul 240
G
A
B
H USB interface
I LED USB signals reception
J LED USB signals transmission
K LED + 24 V present
L ED + 5 V present
3
5
7
4
6
or operating terminal via the test software
Page 4
5 Operation Controls
8 10
12
9 11
H
I
J
K
L
