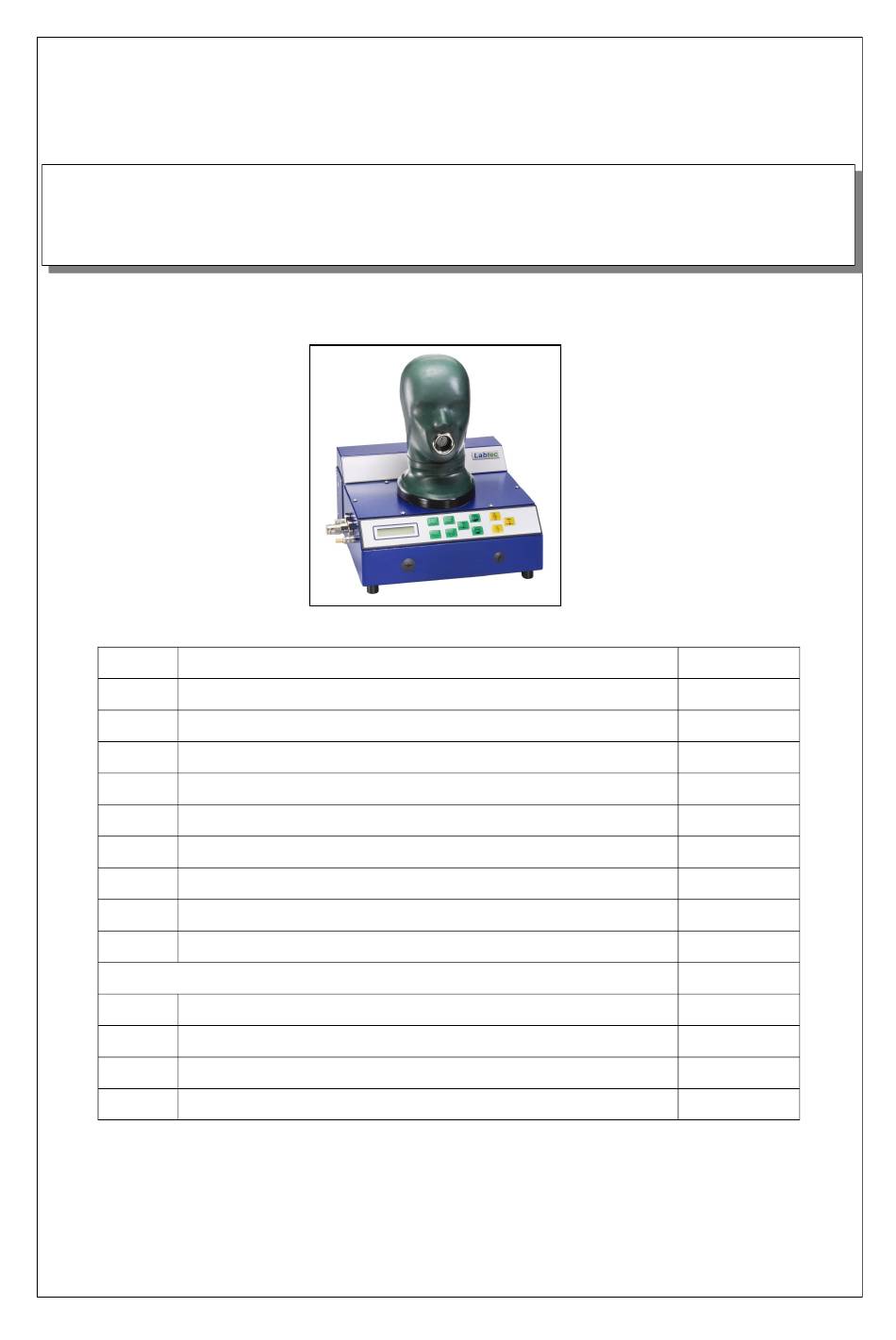

Page 1: Table Of Contents
Labtec User Manual LabModul 240 Content Page foreword safety instructions device description technical data operating elements component description description of the operating elements commissioning care and maintenance Attachments: Performing Tests Manually testing full-face masks testing demand valves testing breathing apparatus... -
Page 2: Foreword
Only original spare parts and accessori- be cleaned with a 0.2 - 0.35 mm needle. es must be used. The device may only be opened by a Labtec In case of queries or uncertainties service technician or, if expressly requested, contact the Labtec customer service! under instruction by a Labtec employee. -
Page 3: Device Description

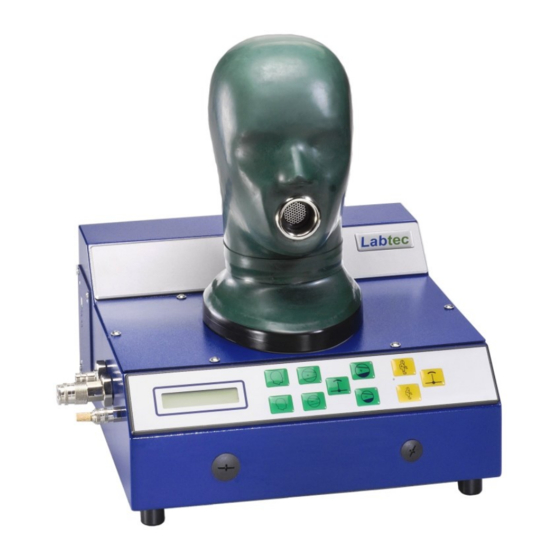

3. device description Labtec offers a wide range of accessories for test devices. LabModul 240 are electronic test devices to be operated via a PC for the testing of brea- The range includes test adapters for adapting thing masks according to DIN EN 136, self-... -
Page 4: Operating Elements
7 Relieve low pressure, sensing valve 8 Exhalation 10 l/min, switching valve 9 Inhalation 10 l/min, switching valve 10 Fill CPS, switching valve 11 Empty CPS, switching valve 12 Relieve medium pressure, tactile valve User Manual LabModul 240 Page 4 www.labtec.de... -
Page 5: Component Description
2...12 l/min. Push button for medium pressure decom- pression Processor Pressing causes the air to be aspirated out of The built-in microprocessor takes over the the test equipment control and signal conversion. User Manual LabModul 240 Page 5 www.labtec.de... -
Page 6: Commissioning
PC and test bench via USB cable. The test device must be serviced at least an- nually by a certified Labtec service technician. > See separate installation and operating instructions LabNet Profi The test device is recalibrated and deviations in the previous test cycle can be excluded. -
Page 7: A 1 Testing Full-Face Masks
Pump +10 l/min switch on. 1.3.3 Opening pressure at the LCD (LP) read off and compare with the nominal value 1.3.4 Pump +10 l/min switch off (8). 1.3.5 Deflate test head (4), remove mask User Manual LabModul 240 Page 7 www.labtec.de... -
Page 8: A 2 Testing Demand Valves
LA on the LCD display (LP) and lators compare with the setpoint. 2.4.2 Close the bottle and relieve the medium pres- at the end of the test or continue with sure with the button (12). further tests. User Manual LabModul 240 Page 8 www.labtec.de... -
Page 9: A 3 Testing Breathing Apparatus
Read medium pressure on the LCD (MP) dis- play. 3.3.4 Close the bottle and relieve the medium pres- at the end of the test or continue with sure with the button (12). further tests. User Manual LabModul 240 Page 9 www.labtec.de... -
Page 10: A 4 Testing Cps
- Set # mbar. Turn on the stopwatch. and approach to setpoint. 6.4.3 6.1.5 After a specified time of # min. Read pressure change on the LCD display (LP) and compare 6.4.5 with setpoint. User Manual LabModul 240 Page 10 www.labtec.de... - Page 11 Labtec Gesellschaft für Labortechnik mbH Konformitätserklärung Certificate of Conformity Attestation de Conformité Bezeichnung der Maschine: Prüfgerät Type of machine: Test Equipment Description de la machine: Instrument de vérification Modell / Model / Modèle: Labtest / LabModul Typ / Type / Type: Geräte Nr.
