KVH Industries TracPhone V7 Replacement Instructions

Elevation limit switch

Hide thumbs Also See for TracPhone V7:

TracPhone

Replacement Instructions

The following instructions explain how to replace the elevation limit

switch in a TracPhone V7.

Tools Required

• #1 Phillips screwdriver

• #2 Phillips screwdriver

• Needle-nose pliers

For your own safety, be sure to disconnect power from all wired

components before performing this procedure.

a. Turn off and unplug the modem and control unit.

b. Using a #2 Phillips screwdriver, remove the #10-32

screws securing the radome to the baseplate. Carefully

lift the radome straight up until clear of the antenna

assembly and set it aside in a safe place.

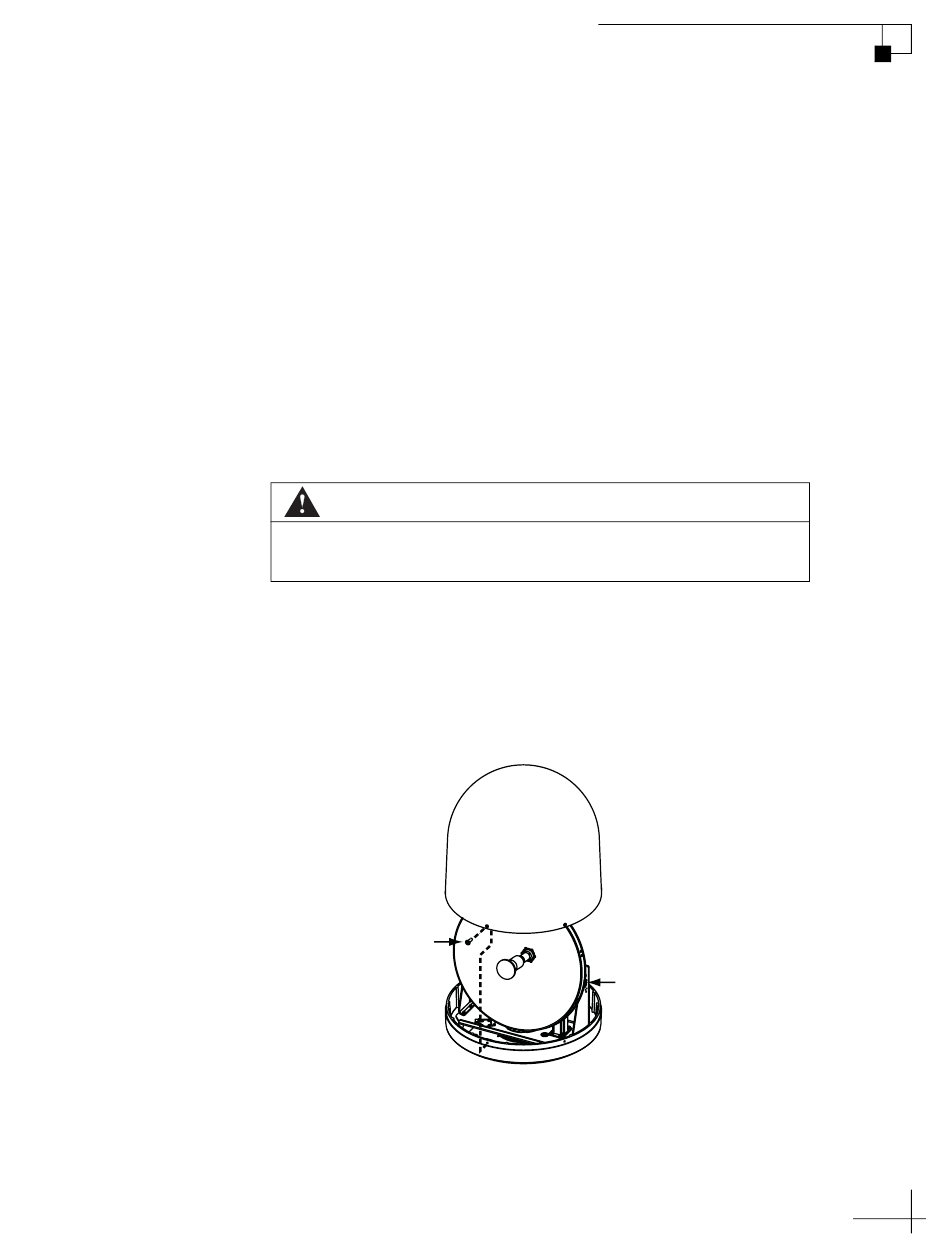

Figure 1 Removing the Radome

54-0517 Rev. A

V7 Elevation Limit Switch

CAUTION

#10-32 Screw

Elevation Limit Switch Replacement Instructions

Limit Switch

TracPhone V7

Table of Contents

Do you have a question about the TracPhone V7 and is the answer not in the manual?

Page 1 Elevation Limit Switch Replacement Instructions TracPhone V7 Elevation Limit Switch ® Replacement Instructions The following instructions explain how to replace the elevation limit switch in a TracPhone V7. Tools Required • #1 Phillips screwdriver • #2 Phillips screwdriver • Needle-nose pliers CAUTION For your own safety, be sure to disconnect power from all wired components before performing this procedure.
Page 2 TracPhone V7 Elevation Limit Switch Replacement Instructions c. Using needle-nose pliers, disconnect the two wires from the limit switch terminals. Grasp the wires at the terminal connectors to avoid damaging the wires. Figure 2 Disconnecting the Limit Switch Wires Limit...
Page 3 TracPhone V7 Elevation Limit Switch Replacement Instructions Figure 4 Limit Switch Mounting Plate - DO NOT REMOVE! Mounting Plate Limit Switch Wires e. Attach the replacement limit switch to the mounting plate with two new #4-40 screws and flat washers (supplied in the kit).
Page 4 TracPhone V7 Elevation Limit Switch Replacement Instructions h. Reinstall the radome. Plug in the control unit and modem and apply power. The limit switch replacement process is complete!
