Gardenline GLBV-2500 Quick Setup Manual

Electric Blower Shredder Vac
Quick Set-Up Guide
Using the Electric Blower Shredder Vac

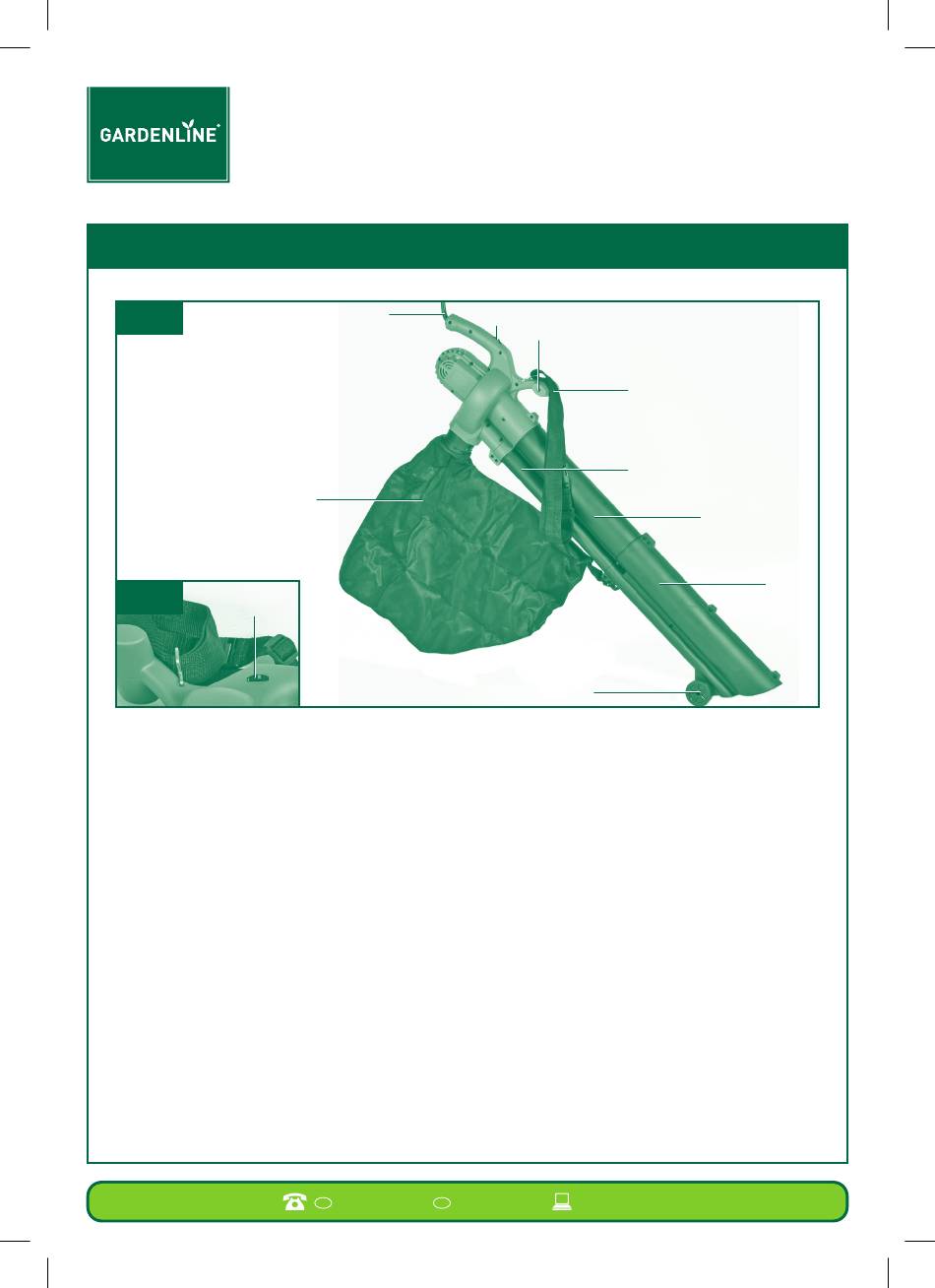

Fig. 1
Fig. 1a
13
First fit together the front suction tube (1), the rear suction tube (2) and the rear blower tube
(3) Then screw the tubes together using two of the longer screws (11) provided. Finally, fit the
suction tube assembly into the motor housing and affix them in place with the one long screw
(11) and with one short screw (12) on each side.
Fit the debris bag (7) by hooking the bag eyelet onto the hook on the suction tube. Then slip the
debris bag connector over the outlet port on the motor housing. Ensure that there is an audible
click when they engage.
Then fasten the carry strap, by opening the quick fastener and passing the carrying strap (4)
through the metal eyelet at the top of the front handle (10) and close the quick fastener.
Adjust the strap length to suit your working position.
The ON/OFF switch (5) on top of the rear handle towards the front operates the unit. Push
forward for ON "1", or back for OFF "0". There is a speed controller wheel (13) on the left hand
side of the housing, near the ON/OFF switch.
On the left hand side just above the debris bag (7), there is a lever (8) which controls the blow /
suck function.
Turn the lever up for the vacuum & shredding (mulch) function.
Turn the lever down for the blowing function.
