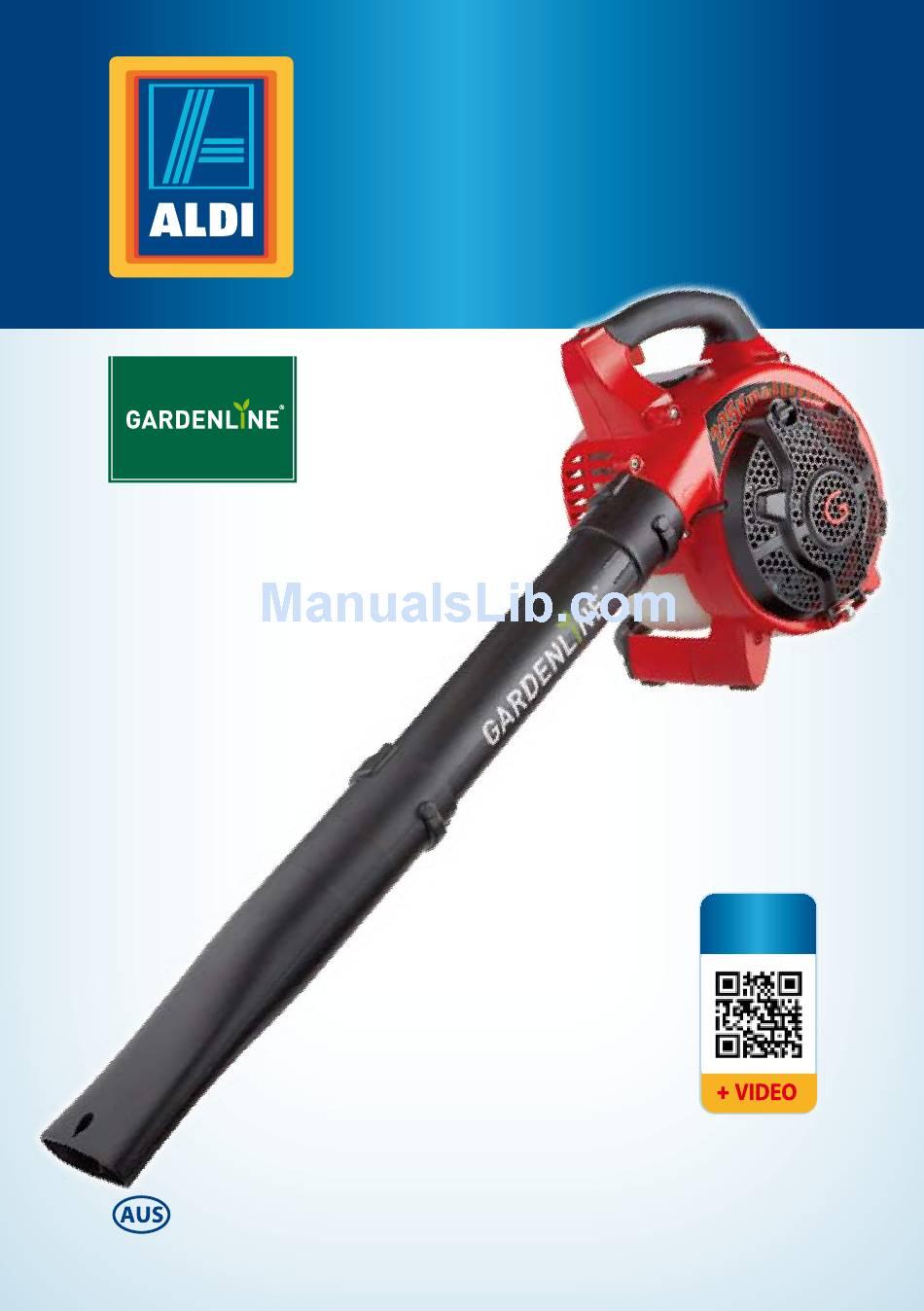

- Page 1 User Manual 52754 24.5CC 4 STROKE PETROL BLOWER VACUUM Product Info www.powertoolsupport.com Read all safety warnings and all instructions thoroughly before operating this product. Ensure you keep your manual in a safe place for future reference. IM ed6; 08/2016...
- Page 2 QR codes take you where you want to go quicky and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales service, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
-
Page 3: Table Of Contents
Contents Pack contents /parts Description of Symbols General safety instructions Safety rules for Petrol Blower Vacs Parts List Assembly /Preparation of the Blower Vac prior to use Setting up for use as a Blower Attaching the Blower Tube Setting up for use as a Vac Fitting the Vac Tube to the Blower Vac Housing Fitting the Bag tube into the Collection bag Fitting the Collection Bag... -
Page 4: Pack Contents /Parts
24.5cc 4 Stroke Petrol Blower Vacuum Pack contents / parts Congratulations on the purchase of your Gardenline® 24.5cc 4 Stroke Petrol Blower Vacuum. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified. -
Page 5: Description Of Symbols
Description of symbols The rating plate on your lawn mower may show symbols. These represent im- portant information about the product or instructions on its use. Conforms to relevant standards for electromagnetic compliance. Warning. Explosive material. Extremely hot surface. Do not touch a hot muffler, gear box or cylinder, you may get burned. -
Page 6: General Safety Instructions
General safety warnings Safety instructions WARNING Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool, garden power tool, battery-operated (cordless) power tool or your petrol operated garden tool. - Page 7 • D o not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. • D ress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. • I f devices are provided for the connection of dust extraction and collection facilities ensure that these are connected and properly used.
-
Page 8: Safety Rules For Petrol Blower Vacs
General safety warnings Safety rules for Petrol Blower Vacs Training • R ead the instructions carefully. Get familiar with the controls and proper use of the equipment. • N on-skilled persons and first time users should read and understand the full instruction manual before proceeding with use of the product or recommended maintenance tasks. • O nly use the blower vac for the purpose for which it was designed, i.e. blowing or vacuuming garden debris. -
Page 9: Maintenance And Storage
– Refuel using a funnel and outdoors only. Do not smoke while refuelling or whenever handling the fuel. – Add fuel before starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. –... - Page 10 Service • H ave your power tool serviced by a qualified repair personnel using only identical replacement parts (recoil starter, spark plug, collection bag, tubes, blades / impellor. This will ensure that the safety of the power tool is maintained. Operation safety instructions WARNING. Stop the engine and unplug the spark plug before any repairs or maintenance operations.
- Page 11 Do not use 2 stroke oil. If not, the engine will overheat and cause damage to your blower vac. • N ever fill fuel tank indoors. Never fill fuel tank when engine is running or hot. AFTER SALES SUPPORT Do not smoke when filling fuel tank. 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
- Page 12 • T he user is responsible for the safety of other people, animals and objects in the working area. Keep children and domestic animals at a safe distance while the blower vac is in use. • F ill the oil reservoir with 4 stroke oil. Do not use 2 stroke oil. We recommend Gardenline® Full Synthetic 4 stroke oil or equivalent SAE 10W/30.
- Page 13 24.5cc 4 Stroke Petrol Blower Vacuum AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
-
Page 14: Parts List
27. Spark Plug Spanner 28. 4mm Hex Key 29. 5mm Hex Key 30. 1 x Oil bottle 31. Fuel tank bracket / feet Spark plug AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) - Page 15 24.5cc 4 Stroke Petrol Blower Vacuum 2 18 27 28 29 AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
-
Page 16: Assembly /Preparation Of The Blower Vac Prior To Use
(24) on the blower outlet and then rotate clockwise until it locks in place and the screw hole can be seen (Fig C). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 17: Setting Up For Use As A Vac
(27) (Fig G). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 18: Fitting The Vac Tube To The Blower Vac Housing
1. Layout the bag flat so you can see the full shape and identify where the zip and the inlet hole are situated (Fig J). INLET HOLE INLET HOLE AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) - Page 19 NOTE: the bag can be rotated on the tube later to find the most comfortable position. 4. Close the zip on the collection bag (10). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
-
Page 20: Fitting The Collection Bag
(7) . Then push the bag tube (7) onto the discharge port (24) outlet housing as far as possible (Fig N). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) - Page 21 6. Attach the shoulder strap (23) to each of the attachment rings on the collection bag (10). NOTE: To remove the collection bag, follow the above instructions in reverse. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
-
Page 22: Adding And Checking The Oil
DO NOT THREAD the dipstick into the reservoir. Hold the dipstick in place for a few seconds and then remove (Fig R). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) - Page 23 The Sealing O ring on the shoulder of the dipstick should be fully compressed when the dipstick is firmly hand tightened. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754...
-
Page 24: Fuelling
• A lways use extreme care when handling fuel! Fuel is highly flammable. • N ever attempt to fuel the product if the fuel system components are damaged or are leaking. • N ever attempt to refuel the engine while it is running or still warm, allow it to cool before fuelling. • Never smoke or light any fires near the product or fuels. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 25: Operation / Choke Control / Starting The Blower
ON (Fig X). 4. Place the blower vac on the ground and hold the blower vac handle firmly with your left hand. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 26: Stopping The Blower
10–20 cm from the ground and move it in a sweeping motion from left to right, directing the debris to the desired location. • U se low throttle settings when clearing lightweight materials from around lawns or shrubbery. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 27: Use Of The Petrol Blower
This could include, but not restricted to, times of operation, location of operation, or work place operation. • I t is recommended to use a rake or broom to loosen debris before blowing/ vacuuming. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 28: Operating As A Vacuum
The blower vac is not a garbage collection unit and will be damaged if this type of debris is drawn into the vac. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 29: Clearing A Blocked Impeller/Mulcher
• E nsure you are wearing suitable clothing, no loose jewelry, and also safety equipment like safety glasses, ear protection and a mask if necessary. Be cautious of hair entanglement. Long hair should be suitably protected. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 30: Emptying The Collection Bag
1. Remove the spark plug cover (18) to gain access to the spark plug (19) (Fig AC). Remove the black arrestor cover on the spark plug (19). AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 31: Air Filter
(15) and using the phillips head end of the supplied spark plug spanner (27), re-insert and secure the screw into position (Fig AG). AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 32: Servicing
2 to 3 times in order to distribute the oil evenly. Replace the spark plug and spark plug cover. • Clean the air filter (16) as described in the air filter section. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 33: Troubleshooting
• C lean excess fuel from the combustion chamber by cranking the engine several times while the spark plug (19) is removed. • I nstall the spark plug (19) and firmly tighten it with the supplied spark plug spanner (27). Connect the spark plug (19). • Repeat the starting procedure as if the blower was already warm. AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... -
Page 34: Product Disposal
- Take regular breaks of at least 10 minutes every hour away from the tool, for both vibration and damage to the ears. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. EBV245A • 08/2016 • 52754 (toll free) -
Page 35: Warranty
Gardenline® Blower Vacuum . Take special care to heed the Cautions and Warnings. Your Gardenline® Blower Vacuum has many features that will make your job faster and easier. Safety, performance, and dependability have been given top priority in the development of this Blower Vacuum , making it easy to maintain and operate. -
Page 36: Service Support
Spark Plug Recoil Starter (52754-BG) (Torch GB/T7825) (52754-RS) 4. 51773 - Gardenline® 4 stroke Full Synthetic 4 stroke Oil If you have any queries regarding these accessories, please call us on our Customer Support Line. AFTER SALES SUPPORT e-mail: help@powertoolsupport.com 1800 909 909 MODEL: №. -
Page 37: Technical Specifications
113cm x 29cm x 36cm (without collection bag) +/- tolerances (L x W x H) This product complies with: EN15503 :2009 EN15503/A1:2013 PPP 53351A:2012 EN ISO 14982:2009 AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. EBV245A • 08/2016 • 52754... - Page 38 Customer Service Hotline. Made in China Gardenline® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES...
Need help?
Do you have a question about the 52754 and is the answer not in the manual?
Questions and answers
Why blower not starting plug changed clean air and petrol filters has fuel . Thanks
The Gardenline blower model 52754 may not start after changing the spark plug and cleaning the air and fuel filters due to the following possible reasons:
1. Old or stale fuel: Fuel goes off quickly. Replace it with newly purchased fuel.
2. Excess fuel in the combustion chamber: Remove the spark plug and crank the engine several times to clean out excess fuel.
3. Fouled or soaked spark plug: Clean or replace the spark plug if it is dirty or wet with fuel.
4. No oil in the engine: If oil was drained previously, ensure oil is refilled before use. A tag should indicate if oil was drained.
5. Corroded engine parts: Ensure metal engine parts are protected with oil to prevent corrosion.
Check these conditions and address them to restore proper starting.
This answer is automatically generated
