Tri-Clover SP Series Manual

Centrifugal pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

TriClover_Pump_SP_service_D400
SPSM
SP Series
Centrifugal Pumps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tri-Clover SP Series

Summary of Contents for Tri-Clover SP Series

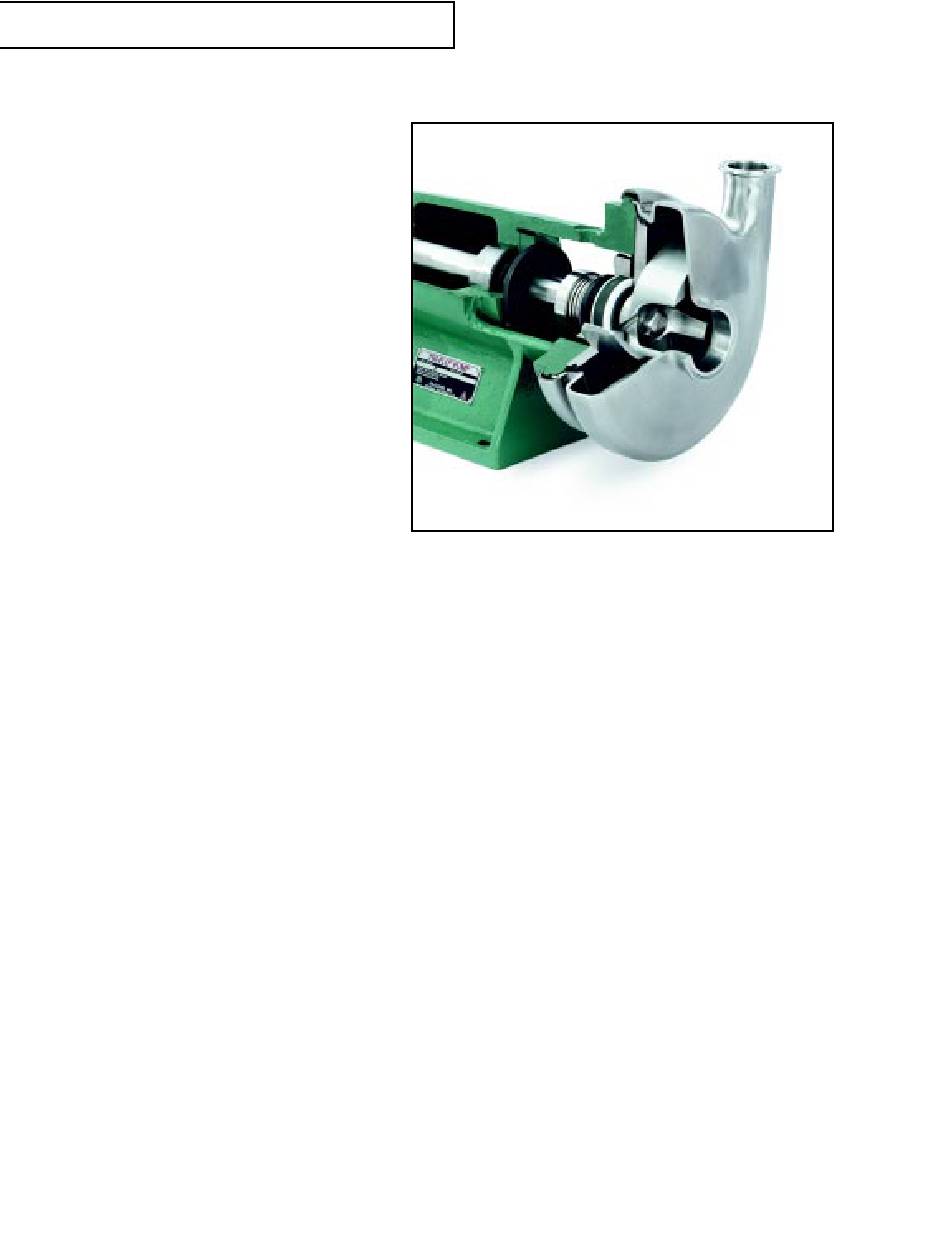

  • Page 1 TriClover_Pump_SP_service_D400 SPSM SP Series Centrifugal Pumps...

  • Page 2: Table Of Contents

    Thank you for purchasing a Tri-Clover Product! This manual contains disassembly and assembly instructions, maintenance procedures, troubleshooting, and a complete parts list for all SP Series Pumps designed and manufactured by Tri-Clover, Inc., Kenosha, Wisconsin. READ THIS MANUAL carefully to learn how to service these pumps. Failure to do so could result in personal injury or equipment damage.

  • Page 3: Safety

    IMPORTANT SAFETY INFORMATION Safety is very important! DO NOT attempt to modify any Tri-Clover product. To do so could create unsafe conditions and void all warranties. DO NOT place any Tri-Clover product in an application where general product service ratings are exceeded.

  • Page 4: Introduction

    Before servicing pump, disconnect electrical power source. DESCRIPTION The SP Series pump units are generally mounted on base plates which accommodate both the pump units and the drive motors. The pump units are comprised of two sections, the power frame section which transmits power from the motor to the pump and the liquid end or pump section.

  • Page 5: Installation

    INSTALLATION UNPACKING AND INSTALLATION UNPACKING EQUIPMENT Check the contents and all wrapping when unpacking your equipment. Inspect all parts for damage that may have occurred during shipping. Report any damage to the carrier. INITIAL LUBRICATION Pumps equipped with grease lubricated power frame bearings are lubricated at the factory prior to shipping and will require no additional lubrication until after the pump is put into service.
  • Page 6 INSTALLATION LOCATION The pump unit should be located as near as possible to the liquid source and in a position where the suction piping can be short and direct with a minimum number of elbows and fittings. It should also be readily accessible for inspection, cleaning, and lubrication.
  • Page 7 INSTALLATION FLEXIBLE COUPLING ALIGNMENT There are two types of misalignment encountered with flexible couplings: angular misalignment and parallel misalignment. To check for angular misalignment and parallel misalignment, insert a taper gauge or feeler gauge at four places located 90° apart around the coupling as shown in figure three.

  • Page 8: Piping Hints

    INSTALLATION PIPING HINTS GENERAL This section provides some do’s and don'ts of piping which will aid in obtaining the maximum efficiency and service from your pump. • Piping should be independently supported at both the suction inlet and discharge outlet. •...

  • Page 9: Maintenance

    M A I N T E N A N C E CLEANING DISASSEMBLY WARNING Before servicing the pump, disconnect electrical power source, carefully relieve all pressure, and drain all fluids from the pump and connected piping. It is necessary to disassemble parts of your pump for cleaning and sanitizing. The extent of disassembly will depend on the application and the type of seal used in your pump.

  • Page 10: Seal Servicing

    M A I N T E N A N C E SEAL SERVICING GENERAL There are six standard seal types available for the SP Series pumps. Others are available as options. To gain access to the seal components it will be necessary to remove the casing clamp, casing, and impeller.

  • Page 11: Type D Or F Seals - External Balanced

    M A I N T E N A N C E TYPE D OR F SEALS - EXTERNAL BALANCED GENERAL WARNING Before servicing the pump, disconnect electrical power source, carefully relieve all pressure, and drain all fluids from the pump and connected piping. The D and F balanced seals are identical except that the F seal has a water cascade provision.
  • Page 12 M A I N T E N A N C E REASSEMBLY DG and FG stationary seats are reversible as supplied by the factory. To reverse, remove the four cap screws that secure the gland ring to the backplate and lift off the gland ring. The stationary seat can be turned over to bring the unused surface into use.
  • Page 13 M A I N T E N A N C E EXTERNAL BALANCED SEALS - SETTING THE DRIVE COLLAR BY POSITION 1. Assemble the spring, seal cup, o-ring seal and carbon seal onto the drive collar. Care must be taken so that the spring does not rest on the tab that is bent back. A portion of the spring is offset to provide clearance for this tab.
  • Page 14 Notes: The packing rings are die formed and must be carefully handled. The packing rings furnished by Tri-Clover are in a package. The first ring of the packing is tagged, and the remainder of the rings are to be installed as they are assembled in the package.

  • Page 15: Type A And B Packing Gland Seal

    M A I N T E N A N C E INSPECTION Carefully inspect the packing rings for cuts, wear and signs of scorching caused by excessive tightening of the gland nuts. Replace the complete packing set if required. Inspect the stuffing box and backplate for cracks and other damage that can shorten seal life.

  • Page 16: Type E Water Cooled Balanced Double Seal

    M A I N T E N A N C E TYPE E WATER COOLED BALANCED DOUBLE SEAL DISASSEMBLY WARNING Before servicing the pump, disconnect electrical power source, carefully relieve all pressure, and drain all fluids from the pump and connected piping. Pumps equipped with a Type E seal can be readily disassembled by the following procedure.

  • Page 17: Final Assembly

    M A I N T E N A N C E REASSEMBLY 1. To determine the drive collar setting, assemble the backplate (less stuffing box), casing gasket, casing and casing clamp. The impeller need not be installed at this time. 2.

  • Page 18: Pump Maintenance And Repair

    M A I N T E N A N C E PUMP MAINTENANCE AND REPAIR LUBRICATION The only maintenance on your SP pump other than cleaning and sanitizing is periodic lubrication of the power frame bearings, seal replacement and inspection of the pump components. Lubrication of the liquid end section is not required as the pump relies on the process fluid for lubrication.

  • Page 19: Bearing Frame

    M A I N T E N A N C E BEARING FRAME DISASSEMBLY Disassembly is uniform for all SP Series pumps. 1. Remove the screws from the outboard and inboard bearing covers. 2. Remove the outboard bearing cover and shims.
  • Page 20 M A I N T E N A N C E REASSEMBLY If it is necessary to replace the bearings: 1. Press the bearing onto the shaft, making sure that the double row bearing is toward the liquid end of the shaft. Refer to figure ten. 2.

  • Page 21: Troubleshooting

    T R O U B L E S H O O T I N G TROUBLESHOOTING GUIDELINES Tri-Clover pumps are relatively maintenance free with the exception of sanitizing and lubrication. Like any piece of machinery, however, occasional problems can arise. The troubleshooting chart provides a means of determining and correcting most of your pump problems.
  • Page 22 T R O U B L E S H O O T I N G PROBLEM PROBABLE CAUSE REMEDY 4. Pump is noisy. a. Magnetic turn. a. Consult motor manufacturer. b. Motor bearings are worn. b. Replace bearings. c. Foreign matter is rotating c.

  • Page 23: Parts List

    PARTS LIST ALL MODELS All orders for repair parts must contain the following data. 1. Complete model number (located on nameplate). 2. Pump serial number (located on nameplate). 3. Description and part number from parts list. The exploded views and accompanying parts list facilitate ordering repair parts from the factory. All parts of the pump are exploded and keyed to the parts list.
  • Page 24 PARTS LIST - 24 -...
  • Page 25 - 25 -...

This manual is also suitable for:

Sp114Sp216Sp218Sp328Sp4410
