1.
Components
Dimensions (inches)
1
2.
ACCessories
• cable Entry hardware
• Mid-span access kits for cable
with multiple buffer tubes
• Slotted core ribbon kits for ribbon
cable
• Workshelf kit (Optional)
• T-Slot Mounting kit (Optional)
• Side-entry kit (Optional)
• Pass-through kit (Optional)
STANDARD RECOMMENDED PROCEDURE 003-333 | ISSUE 9 | March 2012 | PAGE 1 OF 6

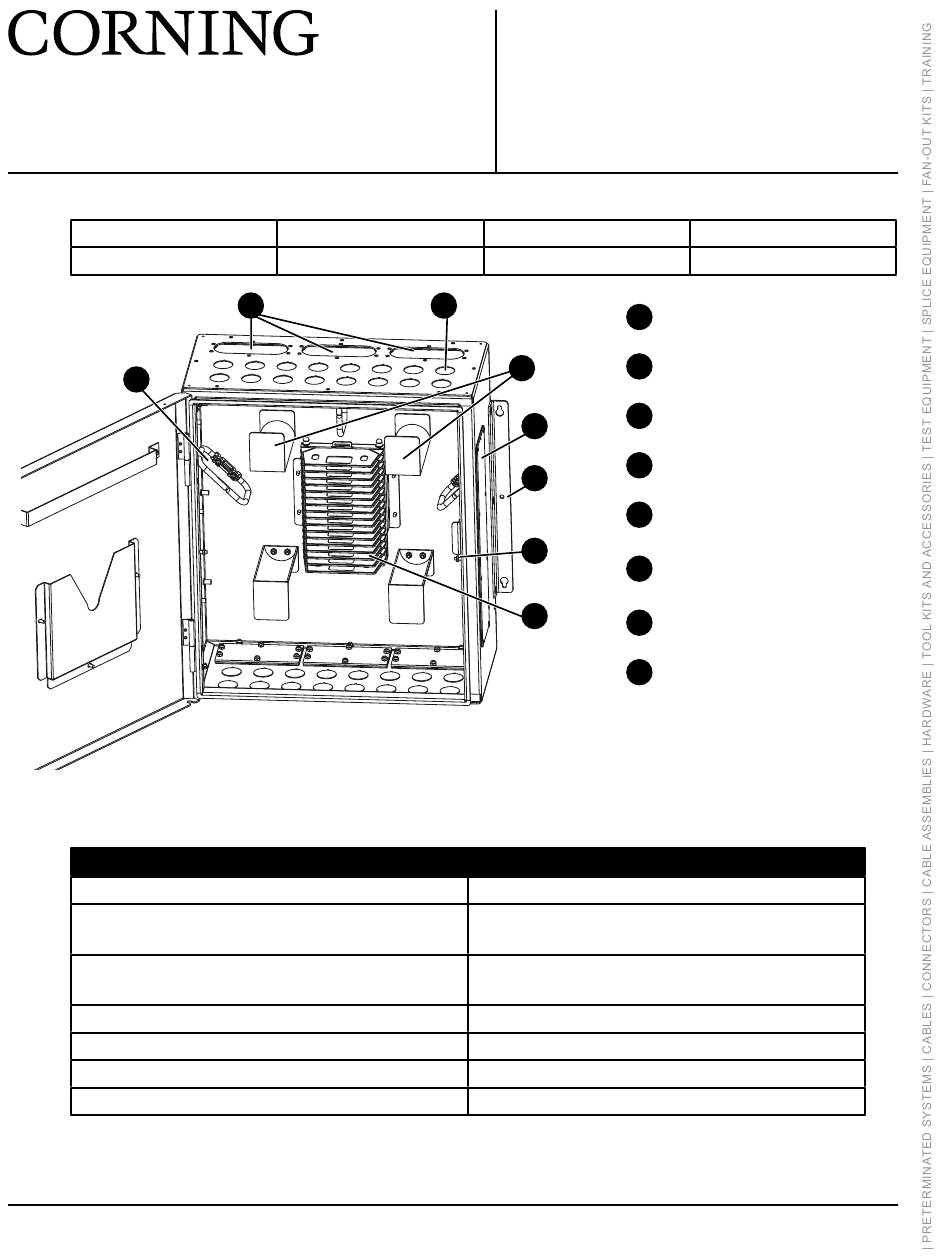

height
30
2
Kit
Optical Splice Enclosure
(OSE-a288)
p/n 003-333, Issue 9
Width
21
3
4
5
6
7
8
Part Number
OSE-cBL-34 through -39
OSE-a288-MSPN-KIT
OSE-a288-Scr-36 and -38
OSE-a288-WS-KIT
OSE-a288-TSLT-KIT
OSE-a288-ScE-KIT
OSE-a288-PT-KIT
Depth
11
1
Routing Clips (3)
Mid-span Cable Entry Plates
2
(3 on top and 3 on bottom)
Cable Entry Knockouts
3
(16 on top and 16 on bottom)
4
Radius Guides (4)
Side Entry Plates
5
(one on each side)
Wall- and Rack-Mounting Brackets
6
(1 on each side, provided with
enclosure)
Nuts to Secure Workshelf
7
(Workshelf purchased separately)
Splice Tray Stacker for
8
0.4-inch Splice Trays
TPA-4080
Advertisement
Table of Contents
Related Manuals for CORNING OSE-A288
Summary of Contents for CORNING OSE-A288
- Page 1 • cable Entry hardware OSE-cBL-34 through -39 • Mid-span access kits for cable OSE-a288-MSPN-KIT with multiple buffer tubes • Slotted core ribbon kits for ribbon OSE-a288-Scr-36 and -38 cable • Workshelf kit (Optional) OSE-a288-WS-KIT • T-Slot Mounting kit (Optional) OSE-a288-TSLT-KIT • Side-entry kit (Optional)
-
Page 2: Laser Handling Precautions
preCAutions 3.1. Laser Handling precautions WArninG: Never look directly into the end of a fiber that may be carrying laser light. Laser light can be invisible and can damage your eyes. Viewing it directly does not cause pain. The iris of the eye will not close involuntarily as when viewing a bright light. consequently, serious damage to the retina of the eye is possible. -
Page 3: Lifting Precautions
3.5. Lifting precautions CAution: The Optical Splice Enclosure weighs over 50 pounds. Two people are required to move or lift it into position. mountinG The enclosure ships with the mounting brackets attached in the location shown to mount the enclosure: • on the wall, • onto T-slot rails • or into a 23-inch utility rack with frontal projection. -
Page 4: Cable Preparation
• ose-CbL-34 through -39: Liquid-tight cord connectors for most cable types. Includes central member strain-relief capability. • ose-A288-sCr-36 or -38: Liquid- tight cord connectors for cut cable applications and split grommet for mid- span applications. Includes one breakout TPA-4084 tray. - Page 5 • If you are installing cable with multiple buffer tubes that will be looped in the enclosure, use a mid- span access kit (p/n OSE-A288-MSPN-KIT, purchased separately) to access the fiber in one buffer tube without disturbing the other buffer tubes.
- Page 6 1-800-743-2671 • FAX +1-828-325-5060 • International +1-828-901-5000 • http://www.corning.com/cablesystems Corning Cable Systems reserves the right to improve, enhance, and modify the features and specifications of Corning Cable Systems’ products without prior notification. All trademarks are the properties of their respective owners. Corning Cable Systems is ISO 9001 certified.
