- Page 1 Installation and Configuration English Decoder - Streamer WSD-2 HD Rev. 1.0.0 / 090616...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
WSD-2 HD Table of contents This document ....................5 Validity ......................5 Documents ......................5 Conventions ....................5 Safety instructions ..................7 General notes ....................9 Scope of delivery ....................9 Transportation and packaging ................9 Appropriate use ....................9 Performance features ..................9 Warranty .......................10 Certifications ....................10 Connection assignment ................11 Front ...................... - Page 4 WSD-2 HD Network settings ..................24 General settings ....................24 Alarm host .....................24 8.2.1 Setting up ......................25 8.2.2 Editing and copying ..................30 Recording settings ..................31 Decoder ......................31 Audio and video source ................31 Tracks ......................31 9.3.1 Creating tracks ....................32 9.3.2 Deleting a track .....................32 9.3.3...
-
Page 5: This Document
WSD-2 HD This document Validity This document applies to the high-definition 2 channel audio and video decoder WSD-2 The descriptions in this document are based on the DCM-1 module software version 2.4.0. Documents Commissioning The document entitled Commissioning contains the most important steps for the connection and commissioning of the device. - Page 6 WSD-2 HD Expression Expressions in bold and italics generally indicate a control ele- ment on the device (switches or lables) or on its users interface (buttons, menu, entries). Dallmeier electronic...
-
Page 7: Safety Instructions
Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit. - Page 8 WSD-2 HD Do not move while in operation Strong vibrations can cause damage to the unit, in particular to the hard disk(s). Therefore, do not bump the unit or move it in a jerky motion while in operation. Instruct the cleaning...
-
Page 9: General Notes

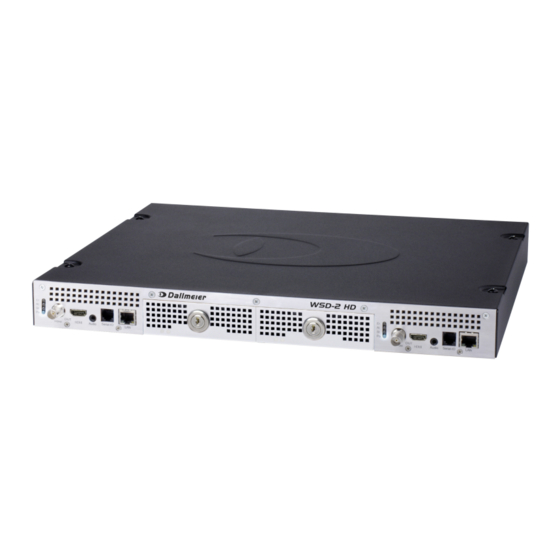

Appropriate use The WSD-2 HD is a high-definition 2 channel audio and video decoder with recording ca- pability. It is able to receive audio and video streams via an Ethernet network (unicast or multicast), decode them and output them via its HDMI interfaces (up to 1080p). -
Page 10: Warranty
WSD-2 HD 2x HDDs for recording optionally available Compact design, 1HU Provided with power supply unit and 19“ bracket for installation into a 19“ rack NOTE For detailed information please see chapter Technical data. Warranty The terms and conditions valid at the signing of the contract shall apply. -
Page 11: Connection Assignment
WSD-2 HD Connection assignment Front DCM-1 Module DCM-1 Module Fig. 4-1 DCM-1 Fig. 4-2 1 HDD plug-in module 2 Status LEDs (Power, Record, Alarm, Error) 3 Video OUT (CVBS) 4 Video OUT (HDMI) 5 Audio OUT (3.5 mm phone jack) -
Page 12: Installation And Commissioning
(e.g. gases or salt water) with insufficient ventilation (e. g. closed cabinet) Stand-alone Installation The WSD-2 HD may be freely positioned in a place respecting the requirements mentioned above. Attention should be paid to the fact that all connections are freely accessible. -
Page 13: Rack Mounting
Ø Establish the required connections as described in the following. Ø Start-up and login for configuration as described in the following. Rack mounting The WSD-2 HD can be installed in a 19“ standard rack using two 19’’ mountings (option). 5.3.1 Requirements Elevated operating ambient The operating ambient temperature in a multi-unit rack may be greater than the room ambient. -
Page 14: Mounting
WSD-2 HD Reliable earthing Ensure a reliable earthing of the WSD-2 HD. Use power strips when other supply connec- tions than direct connections to the branch circuit are being used. 5.3.2 Mounting Ø Remove the four housing screws. Fid. 5-2 Ø Place the two 19“... -
Page 15: Commissioning
Data transfer and video cables must not be connected or dis- connected during a storm. Ø Connect both modules of the WSD-2 HD to the network. Ø Connect the WSD-2 HD to the power supply. Both modules start at the same time. -
Page 16: Preparation
Before you establish a connection, first ensure that the configuration PC and the modules of the WSD-2 HD are in the same LAN. The WSD-2 HD and PC or laptop can also be connected direct using a cross cable. Ø First start the browser. - Page 17 WSD-2 HD Fig. 6-1: DCM-1 module login page Ø Enter the password. Ø Confirm the password by clicking on OK. NOTE If the modules have not yet been configured, use the default password set at the factory (3). To protect the modules from unauthorized access, you must change the default password.
-
Page 18: Basic Settings
Ø Select the required Language. Ø Confirm with OK. Text display The WSD-2 HD is able to integrate and display data in the output video signal. Ø Open the User interface dialogue via Common settings > User interface ..Fig. 7-3... -
Page 19: System Time
WSD-2 HD Ø Select the Player tab. Ø Set which data should be integrated and displayed (activate checkbox). Ø Set the Transparency level for the displayed text (0 = not transparent). Ø Control the displayed image. Ø Confirm with OK. -
Page 20: Timeserver
WSD-2 HD 7.3.2 Timeserver Ø Select the Timeserver tab. Fig. 7-6 Ø Activate the use timeserver checkbox. Ø Enter the IP adress of the Timeserver. Ø Finally confirm with OK. Video standard Ø Open the Video standard dialogue via Common settings > Video standard .. -
Page 21: Password
WSD-2 HD Password Ø Open the Change password dialogue via Common settings > Password ..Fig. 7-9 Ø Enter the the active password at Current password. Ø Enter the New password and confirm it. Ø Finally confirm with OK. IMPORTANT For security reasons the new password should consist of at least 8 characters. -
Page 22: Fieldcontact Display Position
Fig. 7-11 A screen will be shown through the blue rectangle background on the right-hand side of the dialogue (Dallmeier logo). The white lines represent the stylized playback panel of a typical evaluation station. The white rectangle (with the blue corner) symbolizes the screen area in which the field contact data are displayed. -
Page 23: Hdmi Interface
WSD-2 HD Fig. 7-12 If you click on the blue corner (bottom right), you can change the size of the display area by pressing and holding the mouse button. The Width and the Height of the display area is displayed in pixels on the left-hand side of the dialogue. -
Page 24: Network Settings
WSD-2 HD Network settings General settings The basic network settings are made in the Network settings dialogue. NOTE After the network settings have been changed, the connection to the DCM-1 is broken. You then have to log in again. Ø Select Common settings > Network .. -
Page 25: Setting Up
WSD-2 HD 8.2.1 Setting up Fig. 8-2 Ø Click on the New ... selection. The selection is expanded to include the Alarm host 1 entry. Fig. 8-3 Ø Click on Settings. Ø Click on the Name field. Ø Enter the name of the computer which is to receive the alarm notifications from your DCM-1. - Page 26 WSD-2 HD You can select one or more notifications by ticking the respective checkbox. Fig. 8-5 Ø If you don’t want to make any additional settings (e.g. Scheduler function or Copy), click on OK to save your settings. Fig. 8-6 Ø After clicking on OK, the designation alarm host 1 is replaced by the name you ente-...
- Page 27 WSD-2 HD Fig. 8-9 All areas in the weekly plan which are shown as light colored are active areas (pre-set). This means that within this time area all selected messages will be sent to the correspon- ding alarm host. Fig. 8-10 Ø Click on the not active button.
- Page 28 WSD-2 HD Ø If no exceptions are to be made (see the following paragraph), click on OK. Exceptions to the weekly plan To account for public holidays and company-specific deviations you can stipulate exceptions to the weekly plan. Fig. 8-12 Ø Open the Exceptions tab.
- Page 29 WSD-2 HD Fig. 8-15 Ø Click on the active button. Ø Now mark the time during which the system is to be active (i.e. deviate from the standard setting). Copy exceptions for another date If you want the set exception to apply to other days as well you can copy these settings for a new date.
-
Page 30: Editing And Copying
WSD-2 HD Apply exceptions to the week timer Fig. 8-18 Ø Click on OK to apply this exceptions to the week timer. 8.2.2 Editing and copying Editing Open the Alarm hosts dialogue for the appropriate alarm host to edit the details. -
Page 31: Recording Settings
WSD-2 HD Recording settings Decoder If the module is equipped with hard disk drives it can be configured for local recording of the output audio and video signal in addition to it’s decoding and displaying. NOTE Evaluation of the local recordings is possible with SeMSy ®... -
Page 32: Creating Tracks
WSD-2 HD NOTE In standard configuration one track on all available HDDs is defined. An existing allocation of a track to a hard disk drive always can be deleted and redefined. But in this case all recordings will be lost. -
Page 33: Deleting Recordings
WSD-2 HD Ø Click on Delete. Ø Confirm the safety dialogue. All recordings and the track’s definition will be deleted irretrievably. The corresponding HDD can be reallocated afterward. 9.3.3 Deleting recordings All recordings of a track can be deleted without changing the allocation. - Page 34 WSD-2 HD record start If the checkbox for record start is activated, a marker is recorded at every recording start regardless of other settings. fieldcontact „ The module can be made to write external data to the track“ by an external program or device (using the DaVid protocol).
-
Page 35: 10 Saving The Configuration
WSD-2 HD 10 Saving the configuration The configuration of each module can be exported as a file and thus backed up. In addition to re-establishing an individual module, the configuration can also be transferred to several modules simultaneously. 10.1 Saving the configuration file Ø To transfer and save the configuration on the configuration PC, click on Config File >... -
Page 36: Individual Module
WSD-2 HD 10.2.1 Individual module To restore the configuration of an individual module, first establish a connection to this module. Ø Open the Config File Management dialogue via Config File > Upload. Fig. 10-2 Ø Click on Search (Durchsuchen). Ø Select the relevant configuration file on your configuration PC. - Page 37 WSD-2 HD IMPORTANT Ensure that the Network settings configuration group is not sent to the modules. To send the configuration file, first establish a connection to one of the receiving modules. Ø Log on and open the Config File Management dialogue via Config File > Upload.
-
Page 38: 11 Information And Log
WSD-2 HD 11 Information and log 11.1 Information dialogue General information about the module will be displayed in an information dialogue. Ø Open the dialogue via About …. Fig. 11-1 The following will be displayed: Type of module Version number of the recorder software... -
Page 39: Event Log
WSD-2 HD 11.3 Event log Current errors are displayed as a list but they will not be saved. Ø Open the Event log dialogue via Common settings > Event log …. Fig. 11-3 Please note that a removed error will not be displayed after the modules reboot. -
Page 40: 12 Breaking The Connection
WSD-2 HD 12 Breaking the connection After completing the configuration you should break the connection in controlled condi- tions. Ø First log off the system by clicking on LOGOUT. The login page will be displayed: Fig. 12-1 Ø Schließen Sie den Browser. -
Page 41: 13 Cleaning And Service
This activation procedure is carried out in the HDD management configuration dialogue. To use this function, a so-called Day Password must be entered for security purposes. You can obtain this from the Dallmeier Support Team by quoting the serial number of the module. Fig. 13-1 Proceed as follows to activate the new hard disk: Ø Log on to the module using a browser. -
Page 42: 14 Technical Data
Operation mode Decoding, recording, live-viewing/play-back Max. video decoder channels 2x IP based channels Supported cameras IP cameras of Dallmeier and of third party, incl. megapixel and high definition cameras Supported video format MPEG-2 MPML, MPEG-4 ISO/IEC 14496, H.264 (H.264 in development) Supported audio formats MPEG-1 Layer 2, G.722 (G.722 in development) -
Page 43: 15 Pin Assignment Interfaces
WSD-2 HD 15 Pin assignment interfaces DCM-1 Video OUT Audio OUT (BNC) (3.5 mm phone jack) LAN (RJ45) Fig. 15-1 Video OUT (HDMI) Serial IO Serial IO Serial-IO is a RS232 interface. RS232 Connection assignment: Function Dallmeier electronic... -
Page 44: 16 Dimensions
WSD-2 HD 16 Dimensions Fig. 16-1 Unit: mm Dallmeier electronic...
