- Page 1 Installation and Configuration English Audio and video streamer MicroStreamer-PoE Rev. 2.0.0 / 100301...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
MicroStreamer-PoE Table of contents Introduction ....................6 Validity ......................6 Documents ......................6 Conventions ....................6 Safety instructions..................8 General notes ....................10 Scope of delivery ..................10 Transportation and packaging ..............10 Appropriate use.....................10 Performance features ...................10 Warranty .......................11 Approvals/Certifications ................11 Requirements ....................12 General ......................12 Power supply ....................12 Outdoor ......................12... - Page 4 MicroStreamer-PoE Alarm hosts ....................30 9.2.1 Settings ......................30 9.2.2 Messages......................33 9.2.3 Scheduler ......................34 9.2.3.1 Week timer ....................34 9.2.3.2 Exceptions ....................36 9.2.3.3 Copy exceptions ...................38 9.2.4 Copy......................39 9.2.5 Delete alarm host entry .................40 Video streaming ....................41 9.3.1 Transfer protocol and format .................41 9.3.2...
- Page 5 MicroStreamer-PoE Maintenance ....................65 Pin assignment ...................66 16.1 Analogue video preview output ..............66 16.2 Serial interface ....................66 Technical data .....................67 Technical drawings ..................68 www.dallmeier.com...
-
Page 6: Introduction
MicroStreamer-PoE Introduction Validity This document applies to the audio and video streamer MicroStreamer-PoE. The descriptions in this document are based on the software version 2.4.0. Pictures in this document may differ from the actual product. Documents Commissioning The document entitled “Commissioning” contains the most important steps for the connec- tion and commissioning of the device. - Page 7 MicroStreamer-PoE Expressions in bold/italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations.
-
Page 8: Safety Instructions
System components Only use internal components that have been tested and approved by Dallmeier. Inappro- priate internal components can cause malfunctions, damages and data loss and can result in loss of warranty. - Page 9 MicroStreamer-PoE Burnt smell If you notice burnt smell or formation of smoke from the unit, immediately disconnect it from the power supply (pull out the power plug). Contact the sales partner responsible for your area. Opening The housing of the unit may only be opened by qualified personnel for inspection, mainte- nance and repair.
-
Page 10: General Notes
Appropriate use The MicroStreamer-PoE is a 1 channel audio and video streamer with a very compact casing. It is able to receive and encode analogue audio and video signals and transmit the resulting data in real-time via an Ethernet network (unicast or multicast) as a stream. -
Page 11: Warranty
MicroStreamer-PoE • Integrated motion detection with selectable sensitivity • Recording with various Dallmeier recorders • Integrated 64 MB video buffer For detailed information see chapter “Technical data” on page 67. Warranty The terms and conditions valid at the signing of the contract shall apply. -
Page 12: Requirements
MicroStreamer-PoE Requirements The device is designed for indoor use. If used outdoors, the device has to be mounted into a corresponding weather-proof housing (ventilated, temperature-controlled). General Unfavourable local conditions may shorten the life of the product and can cause malfunc- tions or damages. -
Page 13: Views And Connection Assignment

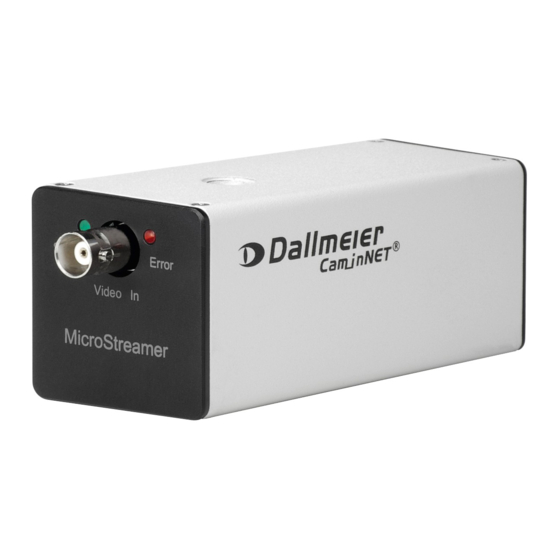

MicroStreamer-PoE Views and connection assignment Views Fig. 5-1 Front view A Status LED B Error LED C ¼" tripod socket (on top and bottom side) D Video IN (BNC socket, CVBS) www.dallmeier.com... -
Page 14: Connection Assignment
MicroStreamer-PoE Connection assignment Fig. 5-2 Housing back side E Power input terminal 24 V AC F Power LED G Analogue video preview output (2.5 mm phone jack) H Audio IN (3.5 mm phone jack) LAN port (RJ45, 10/100 Mbps, PoE conformity IEEE 802.3af) J Serial interface (RS485, 2-pole Weidmüller connector) -
Page 15: Installation And Commissioning
Pay attention to the manufacturer’s documentation when installing the device into a weather-proof housing. If required, mount the MicroStreamer-PoE on a ceiling/wall bracket using the ¼" tripod socket (C) and an appropriate tripod screw. Connect the analogue camera with a coaxial video cable to the BNC socket (D). -
Page 16: Connection And Login
• a more powerful PC is required if several devices are configured with live video display simultaneously. • a DirectX compatible graphics card and the Dallmeier control for ActiveX are not requi- red for the configuration without live video display. -
Page 17: Connection
MicroStreamer-PoE Connect the video preview output of the device with an adapter cable to a CVBS monitor. Switch on the monitor. Connect the device to the power supply. When the device starts, wait for approximately one minute. -
Page 18: Login
Note that the factory default password of user group Group 1: admin is “3”. NOTICE Risk of misuse by unauthorized users! Change the factory default password as soon as possible. Click CONFIG in the user interface of the live mode. Dallmeier Video Protocol www.dallmeier.com... - Page 19 MicroStreamer-PoE The login dialogue is displayed. Fig. 7-2 Enter the Username if required. Enter the Password. Confirm with OK. The graphical user interface of the configuration mode is displayed. Fig. 7-3 Configuration mode A Hide/show title bar...
- Page 20 MicroStreamer-PoE Note that • the live video display in the configuration mode can be disabled if only a low bandwidth is available. • a new login is required after 5 minutes without user action. www.dallmeier.com...
-
Page 21: Basic Settings
MicroStreamer-PoE Basic settings The basic settings and the user management are integrated in the Common settings menu. Language The graphical user interface can be displayed in various languages. Open the User interface dialogue via Common settings > User interface .. -
Page 22: Manual Configuration
MicroStreamer-PoE 8.2.1 Manual configuration Note that no manual configuration is possible if the UTC time server synchronization is enabled. Select the Date/Time tab. Fig. 8-3 Set the Date. Set the Time. Confirm with OK. 8.2.2 Time server Note that the time server must always be accessible via the network. -
Page 23: Camera Name
User name + user password Group password The authentication with the group password is also possible in the “User login” mode. Open the Login options dialogue via Common settings > User management > Login options ..Fig. 8-6 Dallmeier Video Management Software www.dallmeier.com... -
Page 24: User Groups
MicroStreamer-PoE Set the Login mode. Confirm with OK. 8.4.2 User groups The group names of the three user groups can be changed. Note that, • the factory default password of Group 1: admin is “3”. • the factory default password of Group 1: admin must be changed for security reasons. -
Page 25: Edit User
MicroStreamer-PoE Fig. 8-8 Select the tab of the relevant group. Click New. The New user dialogue is displayed. Fig. 8-9 Enter a new User name. Enter a New password. Repeat the new password in the Confirm password field. - Page 26 MicroStreamer-PoE Note that • the rights of the Group 1: admin can not be restricted. • certain rights can not be set to all permission levels. • certain rights are partially or fully relevant for external applications (e.g. DaVid) only.
- Page 27 MicroStreamer-PoE Find the relevant right (line). Change the permission level with a click on the symbol in the column of the relevant group. Proceed as described above for all rights and groups. Finally confirm with OK.
-
Page 28: Network
MicroStreamer-PoE Network Basic settings The network settings of the device can be configured manually or automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server. In order to avoid network conflicts, you should clarify if intended network settings are per- mitted. -
Page 29: Manual Configuration
The newly assigned IP address can be determined by the MAC address of the device with the IP-Finder or at the DHCP server. The IP-Finder must be executed in the same LAN where the device is located. IP-Finder: Dallmeier software for determination and configuration of network-compatible Dallmeier devices www.dallmeier.com... -
Page 30: Alarm Hosts
MicroStreamer-PoE Alarm hosts The device provides event-triggered messaging functions for text notification, e-mail mes- saging and FTP image upload to various alarm hosts. Note that the device and the relevant alarm host must be located in the same LAN or must be able to communicate via a gateway. - Page 31 Enter the Sender. Enter the e-mail addresses of the Recipients (separated by semicolon) to which the SMTP server should forward the e-mail. Enter the Subject and the Message of the e-mail. Dallmeier evaluation and management software for messages www.dallmeier.com...
- Page 32 MicroStreamer-PoE The following variables can be used for the e-mail subject and the e-mail message: %ALARMTYPE% Alarm/event type %ALARMHOSTNAME% Name of the alarm host %CAMERANAME% Name of the device %ALARMTIME% Date and time the alarm/event is triggered %DEVICEIP% IP address of the device ...
-
Page 33: Messages
MicroStreamer-PoE Select the Filename definition: • Filename + .jpg The existing image will be overwritten. • Filename + number (ring) + .jpg The oldest image will be overwritten after a certain number of saved images (Ringbuf- fer size). • Filename + number + .jpg Existing images will not be overwritten. -
Page 34: Scheduler
MicroStreamer-PoE Interval The interval option is helpful to reduce the number of FTP image uploads if lots of alarm/ events are triggered within a short time. The less the Duration (sec.) between two FTP image uploads is set, the more the network utilization rate (traffic level, bandwidth con- sumption) may increase. - Page 35 MicroStreamer-PoE Fig. 9-7 Dark gray areas in the week timer represent inactive periods. During inactive periods the messaging function is disabled. In the example shown (Fig. 9-7) the period on Monday from 02:00 to 07:15 am is inactive. During this period no messages are sent out.
-
Page 36: Exceptions
MicroStreamer-PoE 9.2.3.2 Exceptions For days with deviations, exceptions can be defined. Note that exceptions will overwrite the settings of the entire relevant day in the week timer. Select the Exceptions tab. Fig. 9-8 Click New ..The Calendar is displayed. - Page 37 MicroStreamer-PoE The selected date is added to the exceptions list. Fig. 9-10 Dark gray areas in the timetable represent inactive periods. During inactive periods the messaging function is disabled. By default, the entire period (24 hours) in the timetable is inactive.
-
Page 38: Copy Exceptions
MicroStreamer-PoE Delete active periods Click inactive. In the timetable, click and hold the left mouse button and draw a rectangle over an active period. Release the mouse button. Repeat the last two steps until all relevant active periods are deleted. -
Page 39: Copy
MicroStreamer-PoE Fig. 9-13 To delete exceptions, select the relevant date in the exceptions list and click “Delete”. Confirm with OK if you do not want to make any additional settings. 9.2.4 Copy The copy function allows copying the saved settings to other alarm hosts entries. -
Page 40: Delete Alarm Host Entry
MicroStreamer-PoE Fig. 9-15 Customize the relevant settings. Finally confirm with OK. 9.2.5 Delete alarm host entry To delete an alarm host entry, proceed as follows: Click Network > Alarm hosts. Select the alarm host entry to be deleted from the configuration menu. -
Page 41: Video Streaming
The video streaming function provides the streaming of audio and video data to the net- work without requesting the data actively with a RTSP (Real Time Streaming Protocol) or DaVid Protocol capable client (e.g. Dallmeier recorder or PView). Note that the format of the RTP payload to be transported must correspond with the encod- ing method. -
Page 42: Transfer Method
MicroStreamer-PoE MPEG The audio and video data is packetized for a MPEG-2 Program Stream. The data must be encoded in MPEG2 format. RTP/MPV The video data is packetized for a MPEG-2 Video Stream by the Real-Time Transport Protocol (RTP). Audio data is not transferred. -
Page 43: Ttl
MicroStreamer-PoE A member of the group only receives the data packets if it is aware of the multicast IP address and the appropriate application service is available with the specified port number. IP multicast uses the address range from 224.0.0.0 to 239.255.255.255 (Class D). -
Page 44: Camera Protocol
MicroStreamer-PoE Camera protocol If required from external devices/applications, the camera protocol can be specified. Open the Camera protocol dialogue via Network > Camera protocol …. Fig. 9-19 Default settings Manufacturer: Dallmeier Type: MicroStreamer If required, enter the Manufacturer and the Type of the camera protocol. -
Page 45: 10 Video
MicroStreamer-PoE 10 Video 10.1 Video standard Countries and territories use different broadcasting televisions systems. To ensure a cor- rect video signal transmission, the appropriate video standard for your country must be set at the device. Open the Video standard dialogue via Video > Video standard …. -
Page 46: Encoder Settings
MicroStreamer-PoE Note the explanations below. Adjust all necessary settings. Confirm with OK. Check the image in the live video frame in the bottom left of the configuration user inter- face (if active). If necessary, readjust the settings and confirm with OK again. - Page 47 MicroStreamer-PoE Select the Bitrate mode. Select the GOP-size (only with MPEG). If required, activate the B-Frames checkbox (only possible at a GOP-size > 6). Frames/Second The frame rate (value in fps) defines the number of consecutive frames produced per se- cond.
-
Page 48: Encoder 2
MicroStreamer-PoE Reverse playback has limited quality (frame drops) with extended GOPs (> 15). Deinterlacing The aim of this function is to enhance the image quality by computationally eliminating the so-called interlace effect, which may occur after merging two fields into a frame, from the frame. -
Page 49: Audio
MicroStreamer-PoE 10.4 Audio The audio bit rate setting allows you not only to control the audio quality, but also the amount of required hard disk space to a certain extent. The higher the audio bit rate, the better the audio quality. A higher bit rate, however, requires more hard disk space than a lower bit rate. -
Page 50: 11 Motion Detection
The Level SAD (SAD = Sum of absolute differences) defines the minimum level of alteration necessary to mark an image sector as altered. Major changes required Minor changes required Dallmeier system for the intelligent search of motion events within an image www.dallmeier.com... -
Page 51: Smartfinder
Function switched off 11.1 SmartFinder To enable the intelligent search for motion events within an image with a Dallmeier recor- der, SmartFinder has to be activated. Activate the Enable SmartFinder checkbox. Fig. 11-2 Note the explanations below. -
Page 52: Active Areas
MicroStreamer-PoE This setting allows reducing the number of events triggered by the repeated motion of the same object. Example: Every object is a new event Very large number of events Sensitivity This function checks the extent to which an old (still valid) object and a new object overlap. - Page 53 MicroStreamer-PoE To define inactive (green) areas, proceed as follows: Click the Eraser button. Move the mouse pointer over the image area, click and hold the left mouse button and draw a rectangle over the relevant area. Release the mouse button.
-
Page 54: 12 Interfaces
MicroStreamer-PoE 12 Interfaces 12.1 Serial interface External devices, such as the RS485 contact interface, can be connected to the serial interface. The Crosslink functionality is only supported via the DaVid Protocol (e.g. with PView). Open the Serial port dialogue via Interfaces > Serial .. -
Page 55: Data Display
MicroStreamer-PoE Fig. 12-2 Function Select the Function in which case the relay should be switched. To switch the relay in case of a camera failure, select the “Function > Error” and activate the “Camera” checkbox. Timer (Holding Time) Set the Timer to On to enable the relay activation timer (holding time). -
Page 56: Position
MicroStreamer-PoE Fig. 12-3 By default, no external transferred data is embedded. To embed external transferred data, proceed as follows: Activate the Display active checkbox. Select the relevant data by activating the related checkbox. Select the Duration. Confirm with OK. - Page 57 MicroStreamer-PoE The right-hand side of the dialogue (blue rectangle with Dallmeier logo) represents a screen for displaying live videos with full “PAL” or “NTSC” resolution. The white lines illustrate the stylized graphical user interface (GUI) of a typical application for displaying live videos.
-
Page 58: 13 Service And Info
MicroStreamer-PoE 13 Service and info 13.1 Event log The device logs IP addresses of applications that temporarily blocked certain resources of the device in a log file. The list of IP addresses is displayed in the Event log dialogue. Open the Event log dialogue via Service > Event log …. -
Page 59: Upload
MicroStreamer-PoE Select all relevant settings which should be exported to the configuration file by acti- vating the related checkbox. Confirm with OK. Follow the instructions of the download dialogue and save the configuration file to a data storage device. - Page 60 MicroStreamer-PoE NOTICE Ensure that the configuration of the Network settings is not transferred to several devices. To send the configuration file to several devices, the connection to one of the devices must be established first (see section “Connection” on page 17).
-
Page 61: Info
MicroStreamer-PoE 13.3 Info General information about the device is displayed in the Info dialogue. Click Info … in the configuration menu. Fig. 13-5 The following information is displayed: • Device type • Software version number of the device • Version number of the encoder •... -
Page 62: Factory Settings
Activations The Activations dialogue allows you to activate possible extra features. For information about available extra features contact the Dallmeier Support. For purchasing activation codes, contact the Dallmeier electronic Sales Department. Open the Activations dialogue via Service > Activations .. -
Page 63: 14 Image Transmission
MicroStreamer-PoE 14 Image transmission The device can be configured as active network component for streaming of audio and video data (see section “Video streaming” on page 41). In addition the device, as a passive network component, can be triggered for transmission of audio and video data via various transport and data protocols by external devices and applications. - Page 64 MicroStreamer-PoE Note that • UDP provides data transmission with a relatively low delay. • packet loss (lack of images) may occur during transmission. • the used Encoder must be activated. • the RTSP live access right must be activated. Use the following retrieve expression for the various encoders:...
-
Page 65: 15 Maintenance
MicroStreamer-PoE 15 Maintenance Cleaning If cleaning is required, wipe the housing (outside) with a dry, anti-static cloth. NOTICE Damage to the surface of the device! Do not use detergents. www.dallmeier.com... -
Page 66: 16 Pin Assignment
MicroStreamer-PoE 16 Pin assignment Analogue video preview output (2.5 mm phone jack) Serial interface (RS485, 2-pole Weidmüller male connector) Fig. 16-1 Housing back side 16.1 Analogue video preview output Fig. 16-2 1 Video signal 2 Not used 3 Video Ground 16.2... -
Page 67: 17 Technical Data
Encoding, streaming Max. video encoder channels 1× analogue video channel Supported cameras Analogue cameras of Dallmeier and of third party Supported video/audio formats MPEG-2, MPEG-4, MJPEG / MPEG-1 Layer 2 Frame rate per encoder channel Up to 25 fps / 30 fps... -
Page 68: 18 Technical Drawings
MicroStreamer-PoE 18 Technical drawings Fig. 18-1 Fig. 18-2 Unit: mm www.dallmeier.com... - Page 69 Approximation of the Laws of the Member States relating to Electromanetic Compati- bility (2004/108/EC) and the Council Directives relating to Low Voltage (2006/95/EC). The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D 93051 Regensburg The measurements were carried out in accredited laboratories.
