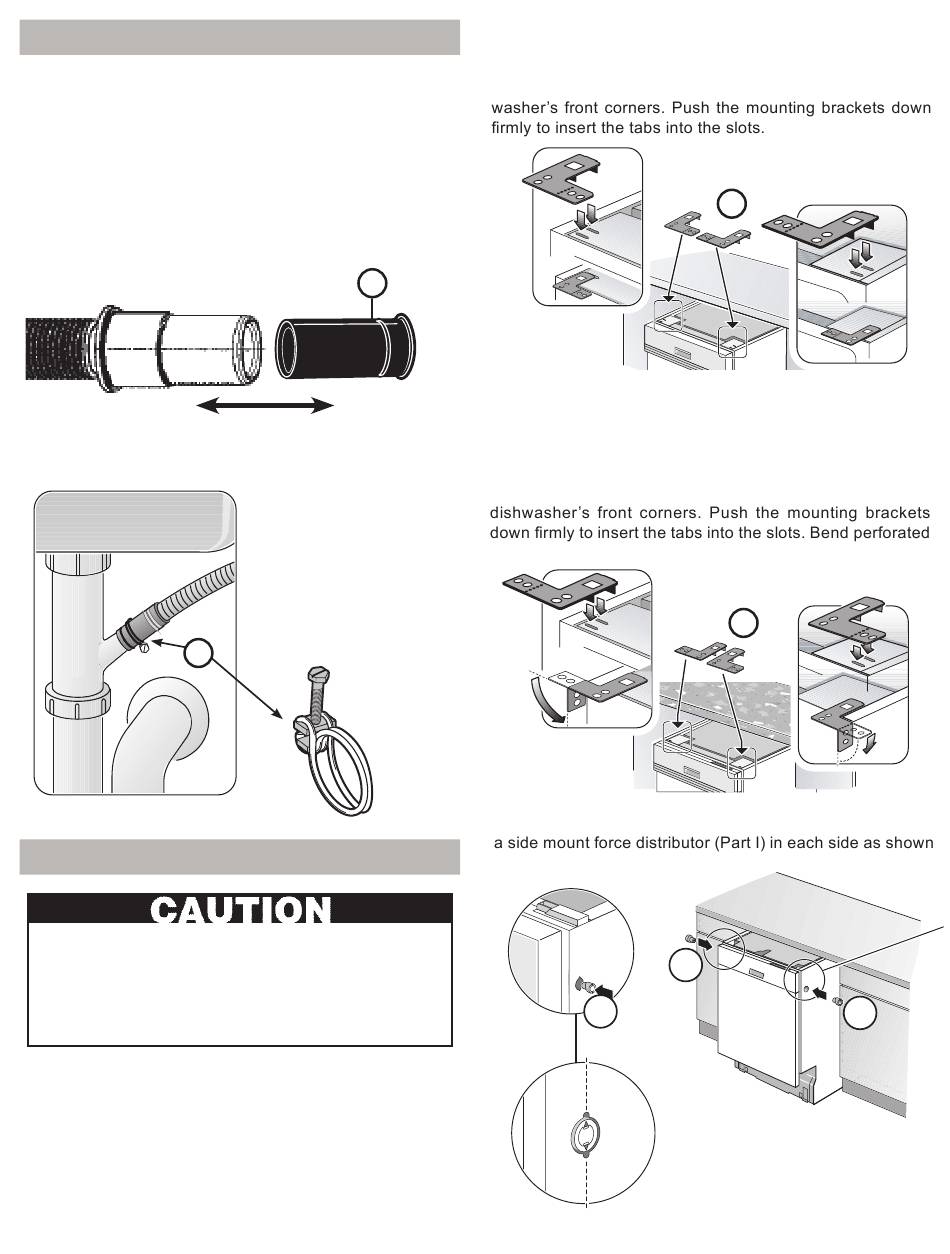

Installation of Rubber Drain Hose Adaptor
For a large port, use the drain hose as it is.
1. For a small port, insert the rubber drain hose adaptor
into the drain hose end.
2. Obtain the Rubber Drain Hose Adaptor (H) spring clamp
from the Dishwasher Installation Kit (do not substitute).
3. Insert the drain hose adaptor into the end of the drain
hose (see Figure 14). Be sure to fully insert the drain
hose adaptor.
4. Use the clamp provided to attach the drain hose to the
house plumbing as shown in Figure 15.
Figure 15
Installation of Mounting Brackets
Before installing the supplied countertop mounting
brackets, decide which method of securing the
dishwasher into its enclosure will be used. Once the
mounting brackets are installed on the dishwasher,
removing them is difficult and will damage the
mounting brackets and the dishwasher.
The dishwasher can be secured into its enclosure in 2 ways:
NOTE: If your dishwasher opening width measures >17

(450 mm) use the TOP OR SIDE MOUNT mounting methods.

If your dishwasher opening width measures 17

mm) use the ALTERNATE SIDE MOUNT mounting method.

10

Figure 14

H
H
Top Mount is used for countertops made of wood or other
materials that can be easily drilled. Orient the mounting
brackets as shown in Figure 16, and position the two small
tabs on the mounting brackets over the two slots on the dish-
Top Mount
Figure 16
Side Mount is used for countertops made of marble, granite,
or other very hard materials that cannot be easily drilled.
Bend the mounting brackets along the small holes and in
the same direction as the two small tabs. Orient the mounting
brackets as shown in Figure 17, and position the two small
tabs on the mounting brackets over the two slots on the
edge down as shown.
Side Mount
Figure 17
Alternate Side Mount for opening 17
in Figure 18.
3
/
in
4
/
in (450
3
4
B
B
3
I
I
Figure 18
Alternate Side Mount
/
in (450 mm). Insert
4
I
10
