Summary of Contents for MITECH MH310

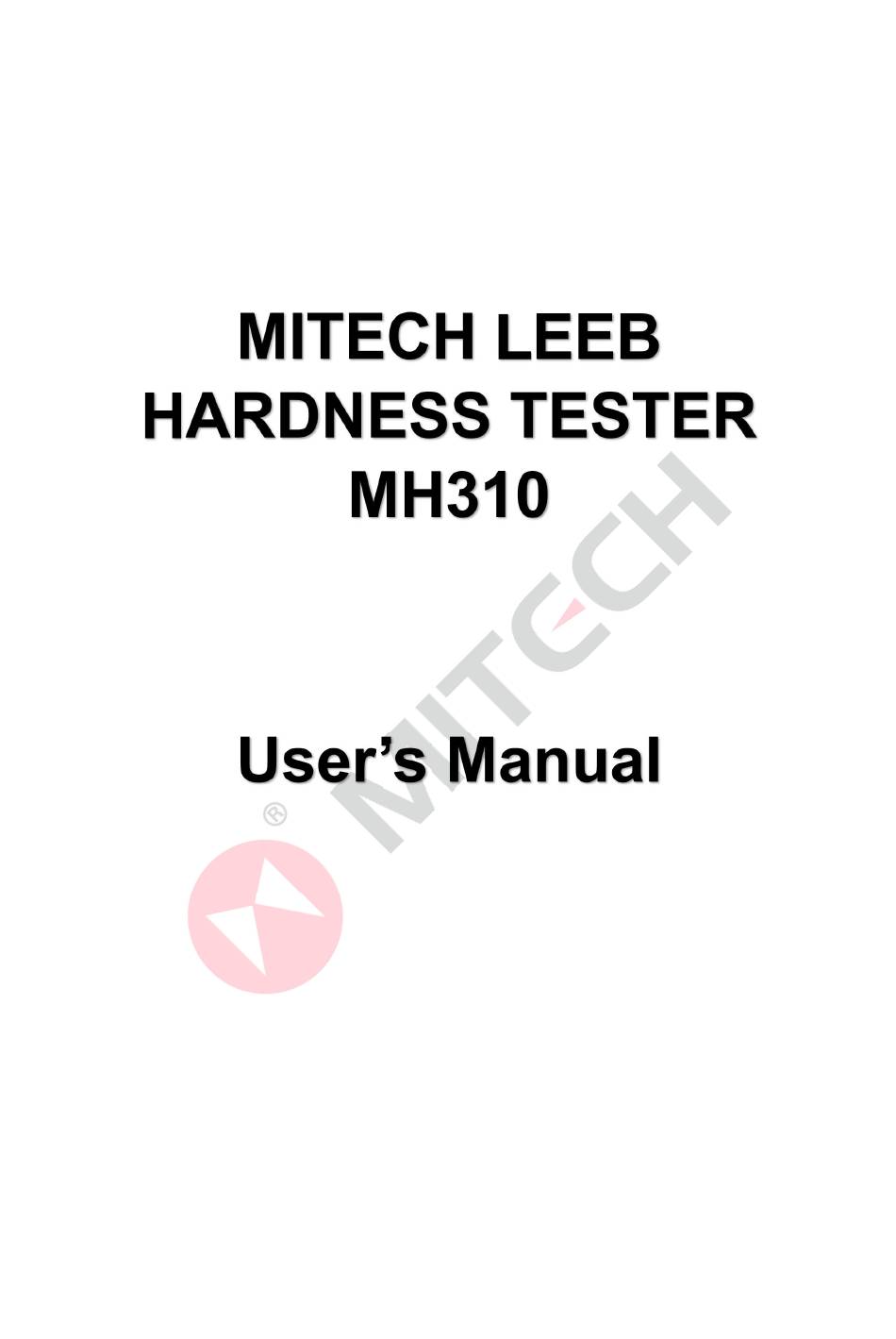

- Page 1 MITECH CO., LTD. www.mitech-ndt.com...
-
Page 2: Table Of Contents
CONTENTS 1 Overview................................. 3 1.1 Advantages..............................3 1.2 Main Application &Testing Range......................3 1.2.1 Main Application.............................3 1.2.2 Testing Range............................3 1.3 Technical Specifications...........................4 1.4 Configuration............................. 4 1.5 Working Conditions...........................5 1.6 Safety Instructions............................ 5 2 Structure Feature &Testing Principle......................5 2.1 Structure Feature............................5 2.1.1 The Hardness Tester Appearance...................... - Page 3 Table 3................................19 Table 4................................20 User Notes................................21...
-
Page 4: Overview
1 Overview 1.1 Advantages Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials. Large screen LCD, showing all functions and parameters. With EL background light. -
Page 5: Technical Specifications
1.3 Technical Specifications Error and repeatability of displayed value see Table1-1 below. Table 1-1 Type of impact Hardness value of Leeb Error of displayed Repeatability device standard hardness block value 760±30HLD ±6 HLD 6 HLD 530±40HLD ±10 HLD 10 HLD 760±30HLDC... -
Page 6: Working Conditions
The instrument can only work with the specially designed battery pack and power adapter (charger) supplied by Mitech Co. LTD. Working with others may result in damage of the instrument, battery leakage, fire or even explosion. Do not cast the battery pack into fire and do not short circuit, disassemble or heat the battery pack, ... -

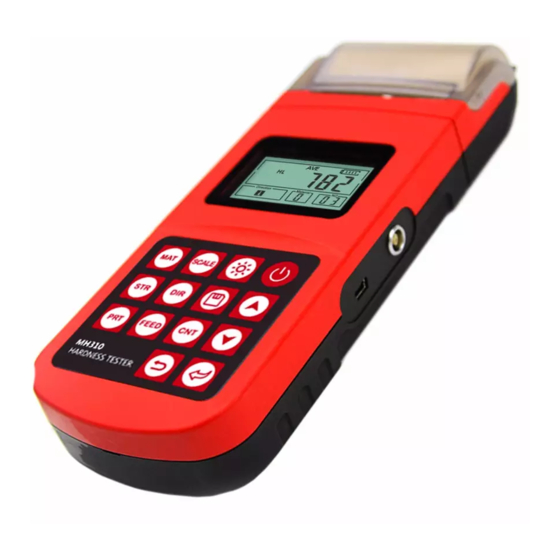

Page 7: Parts Of The Main Body
2.1.2 Parts of the Main body HL0108070811 M i T e c h HARDNESS TESTER MODEL: MH310 BATTERY: 6 V CHARGER: 9V DC Material for Hardness Testing 0-Steel and Cast Steel 1-Cold Work Tool Steel 2-Stainless Steel 3-Gray Cast Iron... -
Page 8: D Type Impact Device
2.1.3 D Type Impact Device 1 Release button 2 Loading tube 3 Guide tube 4 Coil unit 5 Connection cable 6 Impact body 7 Support ring 2.1.4 Different Types of Impact Device D+15 2.2 Main Screen Below is the main display screen:... -
Page 9: Keypad Definitions
Instruction of the Main Display Screen: Material：The present presetting material. Impact direction：The present impact direction. Hardness scale：Hardness scale of the present measured value. Battery information：Showing the rest capacity of the battery and the charging status. ... -
Page 10: Leeb Hardness Testing Principle
2.4 Leeb Hardness Testing Principle The basic principle is to use an impact body of certain weight impacts against the testing surface under certain test force, then measure the impacting velocity and the rebounding velocity of the impact body respectively when the spherically test tip is located 1mm above the testing surface. -
Page 11: Testing Program
Coupling. Light-weight sample must be firmly coupled with a heavy base plate. Both coupled surface must be flat and smooth, and there is no redundant coupling agent existing. The impact direction must be vertical to the coupled surface. When the sample is a big plate, long rod or bending piece, it can be deformed and become unstable, even though its weight and thickness is big enough, and accordingly, the test value may not be accurate. -
Page 12: Read Measured Value
Table 4-1 Type of Impact Distance of center of the two Distance of center of the Device indentations indentation to sample edge Not less than (mm) Not less than (mm) D、DC D+15 4.5 Read Measured Value After each impact operation, the LCD will display the current measured value, impact times plus one, the buzzer would alert a long howl if the measured value is not within the valid range. -
Page 13: Material Setting
5.2 Material Setting Press key to change the material to the one you want to preset. Hardness scale recovers to HL automatically after material presetting changed. Please select material firstly, then select hardness scale. In hardness testing, you can select the material among the following materials: Steel and Cast Steel、... -
Page 14: Viewing Stored File/Group
“AVE” icon, the measured hardness/strength group values will be saved to memory. The new saved file is appended as the last file of the memory. This function provides the user with the ability to view/delete a file/group previously saved in memory. -
Page 15: Date And Time Set
Printing with paper that has been stored for over long period of time or of poor quality may reduce the print quality or even damage the printer. 5.8 Date and Time Set Press down the key while powering on the instrument to set the instrument date and time. The year item shown as “XXXX”... -
Page 16: Battery Replacement
The more of the dark part indicates the more close to full capacity. When the battery is fully charged, the battery symbol on the display will glint Please use the configured AC-DC adapter to charge the battery pack. -
Page 17: Fault Analysis & Evacuation
6.3 Fault Analysis & Evacuation Fault Appearance Fault Analysis Handling method Battery failure Replace the battery with a new pack Charge failure The battery is switched off Switch on the battery Impact device cable failure Replace the cable No measured value... -
Page 18: Appendix
APPENDIX Table 1 Impact device Material Method D/DC D+15 19.3～ 20.0～ 20.6～ 20～68.5 22.4～70.7 67.9 69.5 68.2 38.4～ 47.7～ 37.0～ 99.6 99.9 99.9 59.1～ Steel and cast 61.7～88.0 steel 85.8 127～ 80～638 80～683 90～646 83～663 81～646 83～976 80～937 80～996 84～1042... - Page 19 Table 2 Material Strength σ (MPa) Mild steel 350～522 374～780 High-Carbon steel 500～710 737～1670 Cr steel 500～730 707～1829 Cr-V steel 500～750 704～1980 Cr-Ni steel 500～750 763～2007 Cr-Mo steel 500～738 721～1875 Cr-Ni-Mo steel 540～738 844～1933 Cr-Mn-Si steel 500～750 755～1993 Super strength steel 630～800...
- Page 20 Table 3 Type of impact device DC(D)/DL D+15 Impacting energy 11mJ 11mJ 2.7mJ 90mJ 11mJ Mass of impact body 5.5g/7.2g 7.8g 3.0g 20.0g 5.5g Test tip hardness: 1600HV 1600HV 1600HV 1600HV 5000HV Dia. Test tip: Material of test tip:...
- Page 21 Table 4 Type Sketch of Remarks non-conventional Supporting ring For testing cylindrical outside Z10-15 surface R10～R15 For testing cylindrical outside Z14.5-30 surface R14.5～R30 For testing cylindrical outside Z25-50 surface R25～R50 For testing cylindrical inside HZ11-13 surface R11～R13 For testing cylindrical inside HZ12.5-17...
- Page 22 Warranty ： The product is guaranteed for one year since purchased. Log www.mitech-ndt.com or follow our company official public platform to register for maintenance. Please fill the blanks as required, if the product is not registered for maintenance, it will follow the date of manufacturer.
