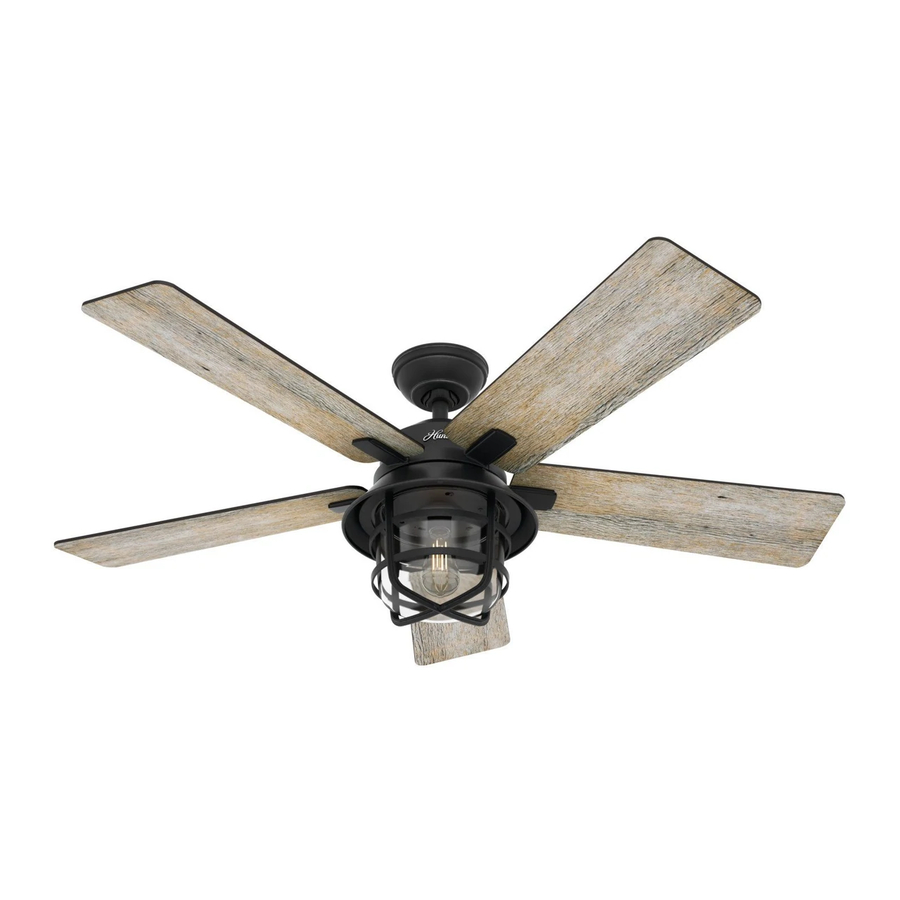

- Page 1 We’re here to help! Check out the installation video at: http://bit.ly/HunterCoralGables2 Coral Gables II Installation Manual Model: 59598 Weathered Zinc Fan weight ±2 lb: 11.5 kg / 25.4 lb ©2020 Hunter Fan Co. PG3697 r061820...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 1886 Here is what comes in your box: Hunter Pro Tip: We recommend that you pull everything out of the box and lay it out. We have Do not discard the hardware bags or mix parts from grouped the drawn components below with the hardware you’ll need for those different bags.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. -
Page 7: Wiring The Fan
Here is how to connect the wires: Push the bare metal ends of the wires together and slide a wire The Coral Gables II ceiling fan is designed to be nut over them. Then, twist the wire nut clockwise until tight. -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Put the blade washers, found in the hardware bag, onto the blade screws, found in the hardware bag. - Page 9 1886 Preparing the Light Fixture Follow these steps to prepare the light fixture for installation. KEEP Light Kit Screw Red Flag Carefully remove the light kit assembly Remove the pre-installed light kit screw and red from the light kit hood. flag from the light kit assembly.
-
Page 10: Installing The Light Fixture
1886 Installing the Light Fixture 3 of 3 Light Kit Assembly Screw Light Kit Assembly Screw Connect the plugs from the upper and lower switch housings. Make Empty Post sure to line up the colored markings on the connectors and that the connectors latch. - Page 11 1886 Installing the Glass and Light Fixture Cage Notch Position the notches in the outer rim of the globe so they line up with the tabs on the light kit assembly. Carefully lift the globe up inside the light kit assembly as far as it Lift the cage assembly into place will go.
-
Page 12: Preparing The Remote
1886 Preparing the Remote For your convenience, a remote function card The remote transmitter is already is packed in with your remote. paired to the receiver and ready to use. Dimming mode is off by default. Note: If you need to pair your remote, To access the battery compartment, turn fan power off and back on at the remove the the battery door to the... -
Page 13: Troubleshooting
• Use the provided balancing kit and instructions to balance the fan. Remote Control of Fan is Erratic • Make sure the battery is installed correctly. • Install a fresh battery. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes. -
Page 14: Limited Lifetime Warranty
Monday - Friday 8am - 6pm CST. Saturday 11am - 4pm CST (English or Español) provide maintenance to the fan, or acts of God (e.g. flood). Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
