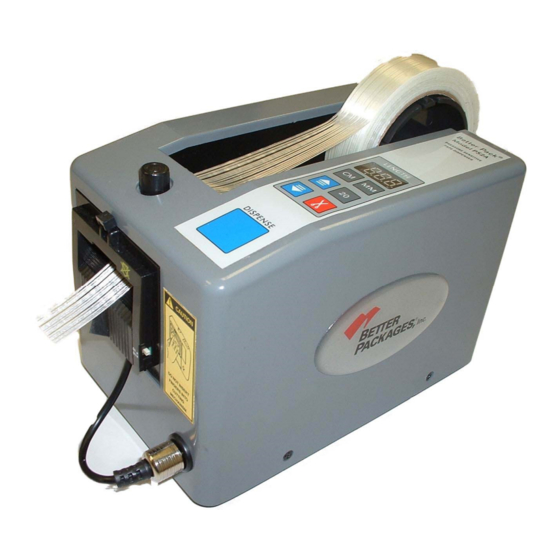

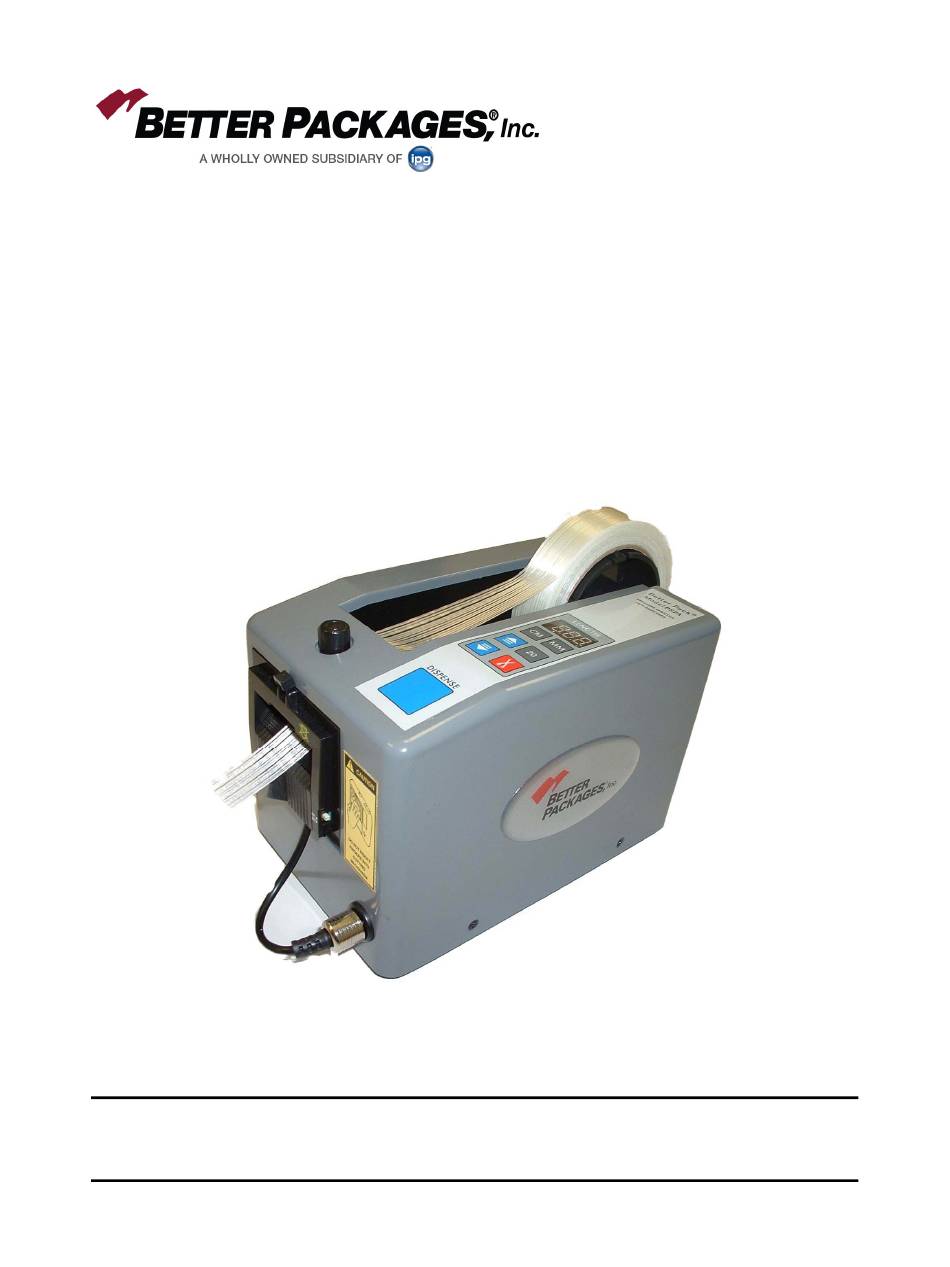

- Page 1 Operator’s Manual Model PS2A Electronic Pressure Sensitive Tape Dispenser BETTER PACKAGES ® 4 Hershey Drive Ansonia, CT 06401 Website: www.betterpackages.com BP P/N: MAN-PS2A-OPR File Name: PS2A-Operator Manual-23June2014...
- Page 2 This manual is a non-controlled document. Information in this manual does not constitute a warranty of performance. Furthermore, Better Packages reserves the right to revise this publication and make changes from time to time, in its content. Better Packages assumes no liability whatsoever for any losses or damages incurred as a result of information contained in this manual.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Precautions ……………………………………………… Page 5 Technical Data …………………………………………………… Page 6 Unpacking Notice ……………………………………………….. Page 7 Preparing for Operation …………………………………………. Page 8 Recommended Maintenance …………………………………... Page 11 Warranty Information ……………………………………………… Page 12... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Must read before operating or servicing equipment. Always unplug the machine before performing any maintenance or repair. Line voltage may be present even with the power switch in the OFF position. Read all Safety Precautions and Operating Instructions before powering on and using the machine. -
Page 5: Technical Data
TECHNICAL DATA Size: 8 ½ ”L x 5 ½ ”W x 6 ”H Tape Width: ¼ ” to 2” Tape Utilization: Masking tape, strapping tape Maximum Roll Size: 7” diameter roll Tape Length Dispensed: 20mm to 999 mm Display: 3 digit LED Shipping Weight: 6 lbs. -
Page 6: Unpacking Notice
UNPACKING When unpacking your new Better Packages electric machine, check to make sure you have the following items before discarding the packing material: • 1 Machine • 1 tape core • 1 bottle of blade oil • 1 Operators manual Note: Remove all tape that may be used to hold the dispenser in place when packaged. -
Page 7: Preparing For Operation
PREPARING THE MACHINE FOR OPERATION 1. Once you have removed the PS2A dispenser from the shipping carton, place it on a workstation and be sure all packaging material including secure tape strips have been removed. (Be sure to remove the protective laminated material that covers the keypad). - Page 8 Single Length Cutting Pre-set the desired length of tape by pressing the “CM” or “MM” setting. Press the “Dispense” keypad and the tape will be dispensed and cut. Remove tape. Setting Tape Length When the unit is turned on, it will automatically show “020” millimeters on the LED display.
- Page 9 3. To automatically dispense and cut tape at an exact preset length, simply lift the switch on the front of the exit area. Once this switch is engaged, the tape will automatically dispense the preprogrammed length and cut the tape. Once the tape is removed, a new length of tape will be dispensed. This will continue until the switch is pulled downward into the OFF position.
-
Page 10: Recommended Maintenance
Recommended Maintenance This is a very simple machine to maintain. Periodically, cleaning the blade of excess adhesive that can build-up on the blade over a period of time, will be required. On a regular basis, the cutting mechanism should be removed from the unit and cleaned. -
Page 11: Warranty Information
Better Packages, Inc. Ansonia, CT at 800-237-9151 (US only) or (203) 926-3700. To locate your local Authorized Distributor/Service Center, visit www.betterpackages.com. Transportation charges on machines or parts returned to Better Packages for service must be prepaid by the customer. Customers will be responsible for freight expenses on parts or machines returned to them.
