46 Appendix B: Technical information
1
2
3
4
5

Board input

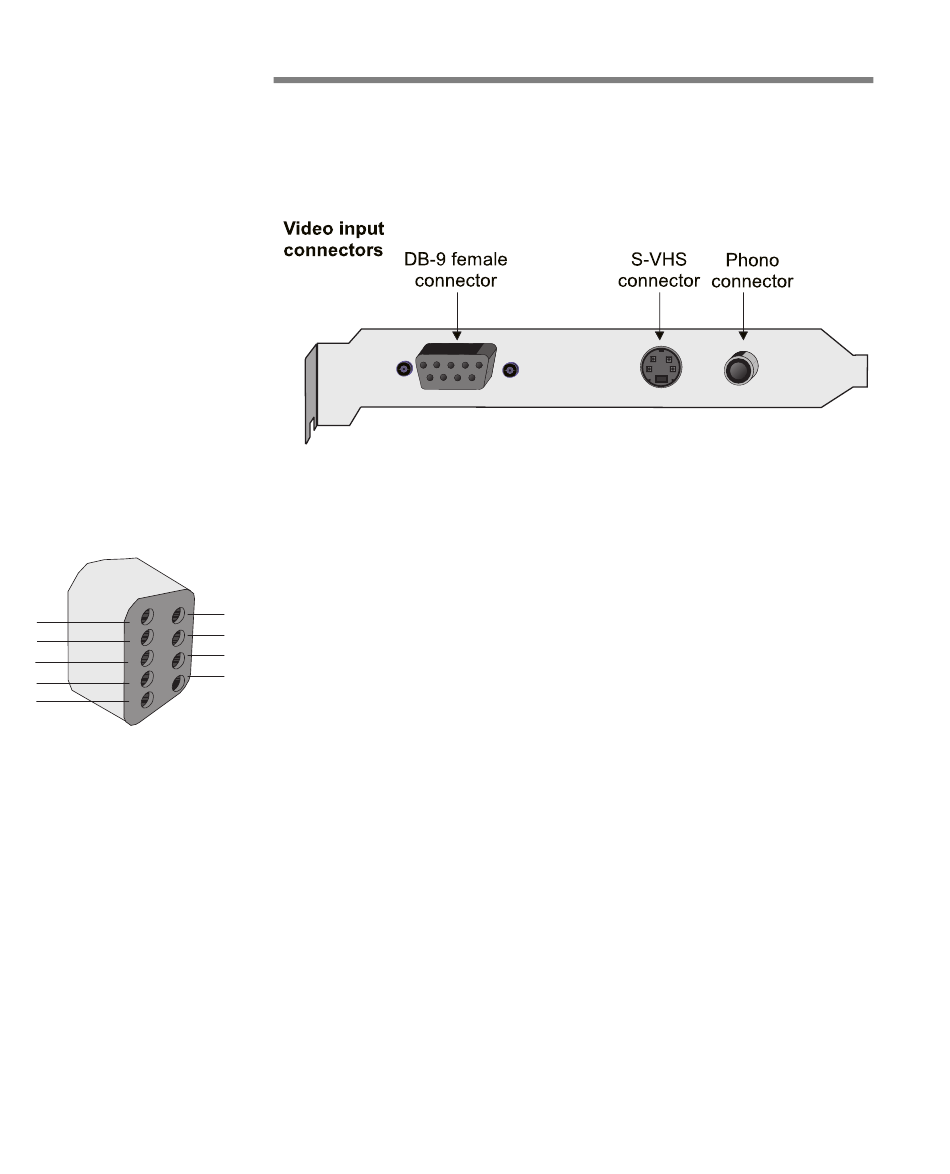

Matrox Meteor and Matrox Meteor/RGB have three connectors
on the bracket for video input:

DB-9 female connector

The DB-9 female connector provides composite or RGB input
to the Matrox Meteor board. The pin assignment is as follows:
Pin Signal
6
7
1 Composite 1 or
8
2 Composite 2 or
9
3 Composite 3/or
4 Composite 4 or Composite Sync
5 Ground
6 Ground
7 Ground
8 Ground
9 Ground
Use one of the following Matrox cables to interface to this
connector:
PC-OCABLE-4
RED
GREEN
in or
LUMA BLUE
or .
PC-OCABLE-10
