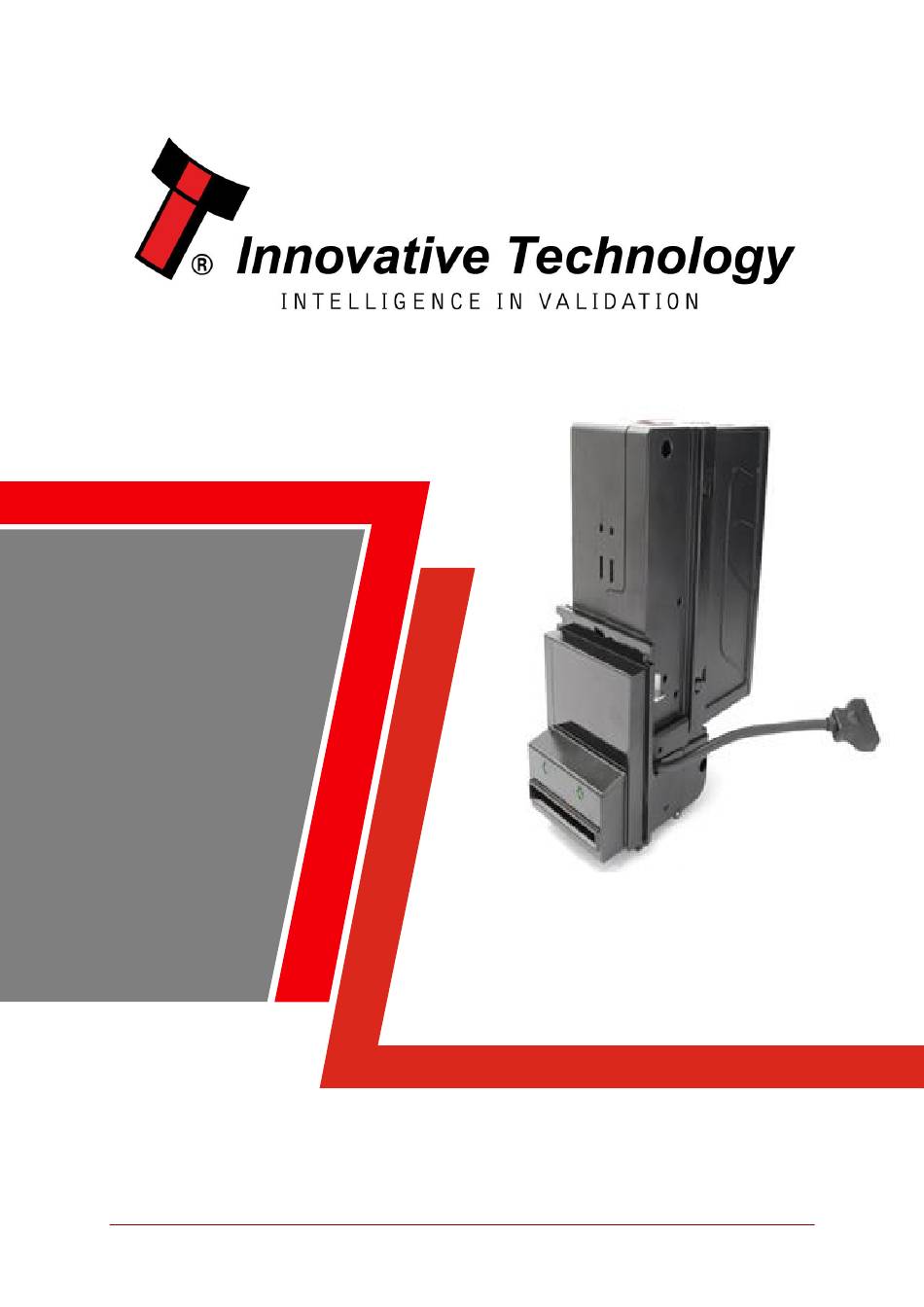

BV50

USER MANUAL

Doc: BV50 User Manual

Version: 1.0

Table of Contents

Summary of Contents for Innovative Technology BV50

Page 2: Table Of Contents
Cashbox Removal .......................... 14 ..........................15 ACHINE OUNTING 4.3.1 Machine Mounting ........................15 SOFTWARE INSTALLATION AND CONFIGURATION ................17 ............................17 NTRODUCTION ..........................17 OFTWARE OWNLOADS Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 1 of 63...
Page 3 Low Power Mode .......................... 37 6.8.6 Credit Hold Function ........................38 6.8.7 IF15 Interface ..........................38 6.8.8 Special Pulse (SP4) ........................38 ROUTINE MAINTENANCE ........................39 Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 2 of 63...
Page 4 NCRYPTION RUSTED 11.5 ..........................59 SCROW ONTROL 11.5.1 Escrow Timing Diagram ......................60 11.6 ....................... 61 OWER IMING IAGRAM 11.7 ........................61 AMING ONVENTION Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 3 of 63...
Page 5: Document Introduction
Phone: +44 161 626 9999 (Main) Email: support@innovative-technology.com Phone: +44 161 507 1818 (Technical Support) Further Innovative Technology Ltd. representatives can be found on our website. www.innovative-technology.com 1.2 Related Documents This document should be read together with the following: For SSP/eSSP: Protocol Manual –...
Page 6: Copyright
Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found in every section of this manual set. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product.
Page 7 Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž • Sledovaný stupeň znečištění je: 2 • Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 6 of 63...
Page 8: Product Introduction
2 PRODUCT INTRODUCTION 2.1 General Description The BV50 bill acceptor is designed specifically for 66 mm width bills. With the option of up or down stacking and four cash box capacities (300, 550, 800 or 1050) the BV50 is ideal for amusement and vending machine applications. The BV50 is exceptional value with a fast repayment of your initial investment, while easy maintenance and free firmware updates made the unit future proof.
Page 9: Bezel Options
PA00822 http://innovative- BV50 550 Note Cashbox technology.com/shop/bezels/bv50-550-bill- cashbox-detail PA00823 http://innovative- technology.com/shop/bezels/bv50-800-bill- BV50 800 Note Cashbox cashbox-detail PA00821 http://innovative- BV50 1050 Note Cashbox technology.com/shop/bezels/bv50-1050-bill- cashbox-detail Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 8 of 63...
Page 10: Technical Data
<< Back to Contents 3 TECHNICAL DATA 3.1 Dimensions The dimensions below are for the BV50 showing 300, 550, 800 and 1050 note cashbox. For dimensional drawings contact support@innovative-technology.com 3.2 Weight 0.85kg 3.3 Environmental Requirements Environment Minimum Maximum Temperature +3°C 50°C...
Page 11: Supply Currents
466-5869 1184645 3.4.4 110V Interface The BV50 can also be supplied with a 110v AC to 12V DC adapter which can be mounted to the rear of the unit. A link to this power supply can be found below: http://innovative-technology.com/shop/accessories/bv20-110v-power-supply-unit-detail 3.5 Interface Logic Levels...
Page 12: Mechanical Installation
4.1.1.2 Machine Interfacing The BV50 has a 16-pin connector which has the same pin-configurations as many of ITL validators. The optional 110v interface connects directly into the 9-pin Molex connector traditionally found in amusement style machines.
Page 13: Power Supply
4.1.1.3 Power Supply It is vital that the BV50 is connected to a power supply being able to provide the required power environment. A weak power supply causes malfunctioning of the BV50 such like note rejects or missing credits. If the BV50 is used as a fitting replacement for an older model or product we recommend checking the power supply specifications of the machine.
Page 14: Cashbox Mounting
4.2 Cashbox Mounting 4.2.1 Cashbox Fitting 1. Line the cashbox up. There are mounting slots on the sides of the BV50 that the cashbox slides into. 2. Clip in place Slide the cashbox down until the red clip on top is clips into place.
Page 15: Cashbox Removal
To remove the cashbox, slide the red clip upward. 2. Remove Cash Box With the red clip up, slide the cash box upward and pull outward. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 14 of 63...
Page 16: Machine Mounting
8mm washers to secure the mounting plate. 3. Spacers Remove the four spacers from the bag and place them over the four inner bolts as shown. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 15 of 63...
Page 18: Software Installation And Configuration
5 SOFTWARE INSTALLATION AND CONFIGURATION 5.1 Introduction The BV50 leaves the factory pre-programmed with the latest dataset and firmware files. However, it is important to ensure your device is kept up to date with the latest dataset and firmware. This section will give you a brief overview of the various update possibilities with the BV50.
Page 19: Hardware Setup
5.4.1.3 Hardware Setup Connect the power supply to the DA2/IF17. Connect the USB cable to the DA2/IF17 and to your computer or laptop. Connect the BV50 to the DA2/IF17. Type ITL Part Number Description Details...
Page 20: Switching To Programming Mode (Ssp)
Once you have switched the unit into SSP, open Validator Manager and click detect devices. This will scan all active com ports for a unit, if your BV50 fails to connect please ensure the correct drivers are installed and the unit is in SSP.
Page 21: Da3
The DA3 connects to the PC through the USB port Once the software is installed import the dataset into the DPS before uploading it to the DA3 internal memory. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 22: Remote Updates
ITL’s eSSP Implementation Manual (GA973) and is available on request. Caution! This is a complex operation and failure to implement correctly may damage units. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 21 of 63...
Page 23: Configuration Card Reprogramming
<< Back to Contents 5.4.4 Configuration Card Reprogramming Press the configuration button once while the BV50 is powered up. If done correctly, the Bezel LED will flash every second. This indicates that the validator is ready for the insertion of a Configuration Card to change the Firmware Protocol in the BV50.
Page 24: Protocols And Interfacing
<< Back to Contents 6 PROTOCOLS AND INTERFACING 6.1 Introduction The BV50 supports standard industry protocols. Interfaces that are not listed may be available upon request. For any queries regarding interfaces that are not listed please contact support@innovative-technology.com. Caution! The use of an encrypted protocol...
Page 25: Setup Examples
USB connections. 6.2.3 Setup Examples The drawings below highlights how to connect the BV50 to an SSP or eSSP host machine using available cables and interfaces from Innovative Technology Ltd. For cable drawings please refer to Appendix 11.1.
Page 26 << Back to Contents http://www.innovative- Cable USB Type A to B technology.com/shop/cables/usb-a-to- b-cable-assembly-detail CN00214 http://www.innovative- TTL to USB Interface technology.com/shop/accessories/if17- Converter interface-converter-detail IF17 Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 25 of 63...
Page 27: Cctalk
+ Vin Power +12V DC Supply Power 0V Supply (GND) Caution! +12VDC and 0V (GND) must always be connected, also when using USB connections. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 26 of 63...
Page 28: Cctalk ® Des Encryption
This exchange is performed in a Trusted Mode maintaining security. The Trusted Mode can only be entered by a physical access to the BV50. Please refer to Appendix 11.4 for details.
Page 29: Sio And Si2
6.4.2 Pin Assignments Name Type Description Vend 1 Output Serial Data Out (Tx) + Vin Power +12V DC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 28 of 63...
Page 30: Packet Format
The data is formatted as follows: 1-start bit 8-data bits 2-stop bits 300 baud. See below a list of recognized Receive and Transmit codes: Below is an example transaction: Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 29 of 63...
Page 32: Mdb
Power 0V Supply (GND) 6.5.3 IF5 Interface The IF5 allows the BV50 to operate with MDB machines no matter the voltage (24/34/48). A link to the IF5 can be found below. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 33: Parallel
Inhibit 3 Input Inhibit Input Channel 3 Inhibit 4 Input Inhibit Input Channel 4 Busy Output Output Busy Signal Escrow Input Input Escrow Control Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 32 of 63...
Page 34: Inhibit Control
(GND) the Master Inhibit is set and the BV50 is disabled. 6.6.4 Escrow Control The BV50 has a single note escrow facility. This allows the BV50 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed.
Page 35: Binary
BV50 can be set to give a binary pattern output on the four parallel output pins. If the BV50 is set to Binary it will issue the vend signals as a binary pattern on the parallel outputs for 100 ± 3 ms. In this way a maximum of 15 different notes can be accepted and 4 notes individually inhibited.
Page 36: Inhibit Control
(GND) the Master Inhibit is set and the BV50 is disabled. 6.7.4 Escrow Control The BV50 has a single note escrow facility. This allows the BV50 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed.
Page 37: Pulse
The Inhibits can be used to either enable or disable the acceptance of those banknotes programmed on channels 1, 2, 3 and 4. The Inhibits are internally held Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 38: Escrow Control
(GND) the Master Inhibit is set and the [Product Name] is disabled. 6.8.4 Escrow Control The BV50 has a single note escrow facility. This allows the BV50 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed.
Page 39: Credit Hold Function
<< Back to Contents 6.8.6 Credit Hold Function If this function is enabled the BV50 will take the notes as normal but then wait until the escrow line is toggled low/high before it will then give out the pulses per denomination as set.
Page 40: Routine Maintenance
The BV50 has been designed to minimise any performance variation over time. Much of this is achieved by careful hardware and software design. However, depending upon the environment the BV50 may at some time require cleaning, belt changing or note path clearing. CAUTION: Do not use solvent based cleaners such as alcohol, petrol, methylated spirits, white spirit or pcb cleaner.
Page 41: First Level Support
PSU too Low PSU too high The BV50 has two arrows on the head of the unit indicating the status of the unit. When the two green arrows are lit, the unit is enabled and when they are off the unit is disabled.
Page 43: Second Level Support
<< Back to Contents 9 SECOND LEVEL SUPPORT 9.1 Introduction 9.2 Fault Finding Flow Chart Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 42 of 63...
Page 44: Clearing A Jam
To remove the cash box, slide the red clip forward on the rear of the cash box and hold it in the upwards position. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 43 of 63...
Page 46 2. Check Cash Box Area Flip the unit over and check the cash box area and note path rollers for any jams or debris then reassemble the unit. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 45 of 63...
Page 47: Checking Power Connections
12V DC required. 2. Check your connections Check the cables from the power source to the BV. Make sure all connections are tight and secure. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 46 of 63...
Page 48: Checking Communication Connections
Make sure all cables are secured and connected. If there are other devices inline, make sure the cable going into and out of those devices are secure. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 47 of 63...
Page 49: Cleaning The Bv50
9.6 Cleaning the BV50 1. Remove power from the unit Remove power from the BV and remove from the machine if needed to access cleaning points. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 48 of 63...
Page 51: Re-Initialisation Of The Sensors
Caution! Do not use solvent based cleaners such as alcohol, petrol, methylated spirits, white spirit or PCB cleaner. This will result in permanent damage to the BV50, only use a mild detergent. Caution! Dirt, dust or other residue causes bad note acceptance rates and other performance degradation.
Page 52 4. Warning Message A warning message will display and click the OK button. At this time a screen will display saying “Gathering Device Information”. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 51 of 63...
Page 53 If you have failed sensors make sure there is no foreign debris and clean the sensors and re-calibrate the unit again. If you are still getting error the unit may need to be returned to an authorised service facility for repairs. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 54: Compliances And Approvals
<< Back to Contents 10 COMPLIANCES AND APPROVALS 10.1 EC Declaration of Conformity CE Marking The BV50 unit described in this manual set has been designed to comply with the relevant sections of the following Harmonised European Standards: ▪ EN60950-1:2001 ▪ EN60335-1:2002 ▪...
Page 55 Electronic Equipment throughout the EU, and to reduce the level of non-recycled waste. The directive was implemented into law by many EU member states during 2005 and 2006. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 56: Appendix
NOTE: If required, IGES 3D models are available on request from ITL technical support. All parts can be purchased as part of the ITL development kit, details of which can be found on our website. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
Page 58: Connector Specifications
SSP is being loaded. Once this process has finished the BV50 will reset. The BV50 will now be in Programming Mode (SSP) and allow connection to a PC via a CN392 cable, DA2 adapter or connection to a DA3.
Page 59 << Back to Contents 2. Open the head of the BV50 and swing open. 3. Reconnect the cable to the BV50 and hold down the button for over 3 seconds. When the button is released the bezel LED will flash at a constant rate.
Page 60: Escrow Control
11.5 Escrow Control The BV50 has a single note escrow facility. This allows the BV50 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. If no confirmation of the Vend is received, then the note will be returned to the user after 30 seconds.
Page 61: Escrow Timing Diagram
Note Forcibly Credit Removed By Customer Hold Pin 10 Low Caution! Only book the credit on the second Vend pulse! 11.5.1 Escrow Timing Diagram Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0 Page 60 of 63...
Page 62: Low Power Mode Timing Diagram
Validator can be selected, this is especially relevant due to the recent move to the ST processor. Below is an explanation of the file naming convention as well as information on the file names which relate to the BV50 family. Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual Version: 1.0...
