Summary of Contents for Innovative Technology BV100

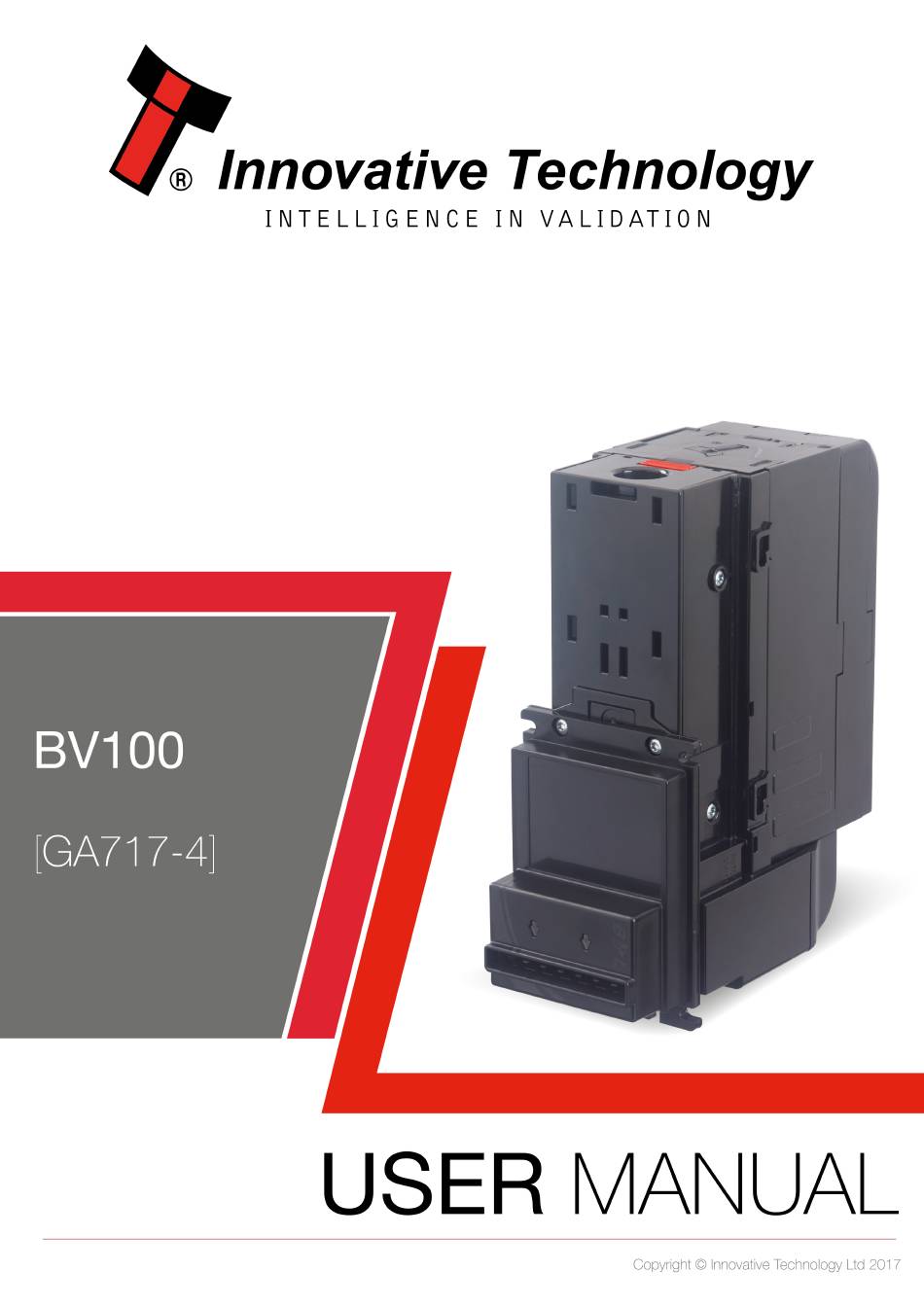

Page 1 Doc: GA717- 4 Version: 1...
Page 2: Table Of Contents
Lock Specifications .......................... 18 3.4.4. Lock Cam ............................18 ............................ 19 ACHINE OUNTING 3.5.1. BV100 Position ..........................19 3.5.2. Earth Bonding ..........................20 3.5.3. Screw Specifications........................20 Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 1 of 70...
Page 3 5.7.3 Inhibit Control ..........................44 5.7.4 Escrow Control ..........................44 5.7.5 Busy Control ............................ 44 5.7.6 Low Power Mode ..........................44 5.7.7 IF9 Interface ............................ 44 Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 2 of 70...
Page 4 ....................66 NCRYPTION RUSTED 11.5 ........................... 67 SCROW ONTROL 11.5.1 Escrow Timing Diagram ......................68 11.6 ......................69 OWER IMING DIAGRAM 11.7 ………………………………………………………………………………………………………………… 70 AMING ONVENTION Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 3 of 70...
Page 5: Document Introduction
Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found in every section of this manual set. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product.
Page 6: Product Safety Information
GA717-4 BV100 User Manual << Back to Contents Innovative Technology Ltd is not responsible for any loss, harm, or damage caused by the installation and use of this product. This does not affect your local statutory rights. If in doubt please contact Innovative Technology for details of any changes.
Page 7 Электропитание терминалов и/или коннекторов: Не исследовано в клиентских условиях • Исследуемая степень загрязнения: 2 • Ограждайте устройство при установке в конечном продукте от следующих видов повреждений: Механическое воздействие, Огонь Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 6 of 70...
Page 8: Product Introduction
2 PRODUCT INTRODUCTION 2.1 General Description The BV100 is a versatile bill acceptor with modular cashbox options, suitable for most applications. Designed for easy installation the BV100 supports all standard protocols and has a high acceptance rate for multi-currencies. Future-proof, the unit can be updated quickly and easily via USB, PC or handheld programmer.
Page 9: Bezel Options
Details http://innovative- technology.com/shop/bv100- PM00761 BV100 Side Plate Left 72mm spares/bv100-side-plate-left-72mm- detail http://innovative- technology.com/shop/bv100- PM00762 BV100 Side Plate Right 72 mm spares/bv100-side-plate-right-72mm- detail 2.5 Cashbox Options Four cashbox types are available: ITL Part Number Description Details BV100 300 Bill Cashbox http://innovative- technology.com/shop/bv100-...
Page 10: Component Overview
<< Back to Contents 2.6 Component Overview 2.7 Interfaces MDB Expansion 16-pin Configuration USB Slot Slot Interface Slot Button Refer to section for Configuration Button functions list. Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 9 of 70...
Page 11: Mechanical Installation
3.1 Compatibility 3.1.1 Hardware Compatibility 3.1.1.1 Machine Mounting Assuming the suitable bezel type has been ordered the BV100 can be used as fitting replacement for the following products: • NV4 (NV4 to NV10 Converter Kit may be required) • NV7 •...
Page 12: Power Supply
<< Back to Contents 3.1.1.3 Power Supply It is vital that the BV100 is connected to a power supply being able to provide the required power environment. A weak power supply causes malfunctioning of the BV100 such like note rejects or missing credits. If the BV100 is used as a fitting replacement for an older model or product we recommend checking the power supply specifications of the machine.
Page 13: Entrance Width Settings
66-mm width setting 1. Mount Left Right 66mm side plates (see section 2.4 for details): 2. Use Standard BV100 bezel: Use 66mm dataset file File can be downloaded from ITL website/downloading section Copyright © Innovative Technology Ltd 2017 Doc: GA717-4...
Page 14: 72-Mm Width Setting
72-mm width setting 1. Mount Left Right 72mm side plates (see section 2.4 for details): 2. Use Standard BV100 bezel: Use 72mm dataset file File can be downloaded from ITL website/downloading section Copyright © Innovative Technology Ltd 2017 Doc: GA717-4...
Page 15: Cashbox/Baseplate Mounting
GA717-4 BV100 User Manual << Back to Contents 3.3. Cashbox/Baseplate Mounting 3.3.1. Cashbox/Baseplate Fitting 1. Attach Cashbox Inserting Sleeves into the Grooves 2. Close the cover Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 14 of 70...
Page 16: Cashbox Removal
GA717-4 BV100 User Manual << Back to Contents 3.3.2. Cashbox Removal 1. Pull Red Plastic Clip 2. Take Off Cashbox Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 15 of 70...
Page 17: Lock Mounting
Lock Fitting 1. Unpick stacker from the clips and take off the stacker 2. Pull off security cover 3. Insert Lock locking cam instead of removed part Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 16 of 70...
Page 18: Lock Removing
GA717-4 BV100 User Manual << Back to Contents 3.4.2. Lock Removing 1. Unpick stacker from the clips and take off the stacker 1. Take off Lock locking Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 17 of 70...
Page 19: Lock Specifications
However, there are various lock manufacturers and distributors. Refer to Appendix 12.3 for lock specification. 3.4.4. Lock Cam The following Lock Cam needs to be ordered from Innovative Technology Ltd. additionally to the lock for full locking capability. ITL Part Number: MC00299 Webshop Link: http://innovative-technology.com/shop/bv100-spares/locking-cam-detail Copyright ©...
Page 21: Earth Bonding
<< Back to Contents 3.5.2. Earth Bonding It is very important that the BV100 is properly bonded to earth as described in 3.5.1. Lack of proper bonding can cause communication issues and other failures. Caution! Lack of proper earth bonding causes failures! 3.5.3.
Page 22: Software Installation And Configuration
SOFTWARE INSTALLATION AND CONFIGURATION Introduction The BV100 leaves the factory pre-programmed with the latest dataset and firmware files. However, it is important to ensure your device is kept up to date with the latest dataset and firmware. This section will give you a brief overview of the various update possibilities with the BV100.
Page 23: Dataset/Firmware Programming
Trojan, this is a false positive and if this happens you will need to add a rule to your antivirus to allow the file to run. 4.4.1.3. Hardware Setup There are 2 types of connection BV100 to host machine: 1. Connect the USB cable DA2/IF17 and your computer or laptop.
Page 24: Switching To Programming Mode (Ssp)
Cable drawing can be found in Section 12.1 4.4.1.4. Switching to Programming Mode (SSP) Before programming via the Validator Manager, the BV100 needs to be switched to its programming mode (SSP interface). Please refer to Section for the procedure for doing this.
Page 25: Programming The Device
Once you have switched the unit into SSP, open Validator Manager and click detect devices. This will scan all active com ports for a unit, if your BV100 fails to connect please ensure the correct drivers are installed and the unit is in SSP.
Page 26: Da3
• 50mb hard disk free • ITL Drivers • Connected DA3 with active com port • Device Programming System software (can be downloaded from ITL website) Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 25 of 70...
Page 27: Re-Programming Via Da3
Re-programming via DA3 1. Open Device Programming System program and add the files you will use. Set “Match” update mode if you want to update current BV100 dataset after comparing datasets or “override” update mode, which will reprogram unit with chosen file and interface not depending on what is downloaded at the moment: 2.
Page 28 4. Using small button choose Match download or Override download depending on requirements, then press big button and downloading process will begin. After, the BV100 will restart and DA3 button become green color meaning successful reprogramming. The table below shows an explanation of the error codes displayed on the Mode Indicator LED’s if the center RUN button changes color to red.
Page 29: Remote Update
GA717-4 BV100 User Manual << Back to Contents 4.4.3. Remote Update The BV100 validator supports remote updating. For SSP protocol, the procedure of updating is described in Section 10 of SSP Implementation Guide (GA973). Files remote updating in ccTalk please, contact support@innovative-technology.co.uk...
Page 30: Protocols And Interfacing
GA717-4 BV100 User Manual << Back to Contents PROTOCOLS AND INTERFACING Introduction The BV100 supports standard industry protocols. Interfaces that are not listed may be available upon request. For any queries regarding interfaces that are not listed please contact support@innovative-technology.com. Caution!
Page 31: Ssp And Essp
Secure Protocol (SSP) and Encrypted Smiley ® Secure Protocol (eSSP) are field proven secure interfaces specifically designed by Innovative Technology Ltd. to address the problems by cash handling systems in gaming machines. Problems such as acceptor swapping, re-programming acceptors and line tapping are all addressed.
Page 32: Setup Examples
GA717-4 BV100 User Manual << Back to Contents 5.2.3 Setup Examples The drawing below shows, how to connect the BV100 to an SSP or eSSP host machine using available cables and interfaces from Innovative Technology Ltd. For cable drawings please refer to 10.1 Section.
Page 33: Cctalk
BV100. To reset the Encryption key to its default value sees Configuration Button Option.
Page 34: Cctalk ® Des Encryption
When using ccTalk ® DES encryption, the BV100 and host machine must exchange a secret key which forms the basis of the communication encryption. This exchange is performed in a Trusted Mode maintaining security. The Trusted Mode can only be entered by a physical access to the BV100.
Page 35: Sio And Si2
Caution! SIO and SI2 are outmoded and not recommended for new developments! The BV100 does not support the simple serial data out only mode. It only supports the serial data input/output mode. The host machine does not echo messages back to the validator.
Page 36 GA717-4 BV100 User Manual << Back to Contents BV100 receive/transmit the following Event codes – Example transactions – Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 35 of 70...
Page 37: Pinout
<< Back to Contents 5.4.2 Pinout Name Type Description Tx, transmit (ttl levels) Output Serial Data Output + Vin Power +12VDC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 36 of 70...
Page 38: Mdb
Validators have a unique address – 00110XXX binary (30H). The VMC polls the bus to detect presence of the BV100 Validator or get information on the current status of the validator. The validators will respond when asked for activity with an acknowledgment, a negative acknowledgment or a specific reply, depending on its current status.
Page 39: If5 Interface
– 5.5.4 MDB PSU Caution! An IF5 cannot be used with an MDBPSUBV100 BV100 can be used with PSU, which allows to use validator directly with MDB applications: For MDB PSU mounting: Copyright © Innovative Technology Ltd 2017...
Page 40 GA717-4 BV100 User Manual << Back to Contents 1. take off back cover, secured with 2 screws: 2. Place MDB PSU into BV100 Board MDB slot Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 39 of 70...
Page 41 GA717-4 BV100 User Manual << Back to Contents 3. Spread the wires and close the cover using 2 screws: BV100 MDB PSU now installed. Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 40 of 70...
Page 42: Parallel
1, 2, 3 and 4. The Inhibits are internally held high and must be set to low (GND) to enable banknote acceptance. If no Inhibit is set to low (GND) the Master Inhibit is set and the BV100 is disabled. Copyright © Innovative Technology Ltd 2017...
Page 43: Escrow Control
5.6.4 Escrow Control The BV100 has a single note escrow facility. This allows the BV100 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. Hold pin 10 Low to enable the single note escrow function.
Page 44: Binary
If the BV100 is set to Binary it will issue the vend signals as a binary pattern on the parallel outputs for 100 ± 3 ms. In this way a maximum of 15 different notes can be accepted and 4 notes individually inhibited.
Page 45: Inhibit Control
5.7.4 Escrow Control The BV100 has a single note escrow facility. This allows the BV100 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. Hold pin 10 Low to enable the single note escrow function.
Page 46: Pulse
1, 2, 3 and 4. The Inhibits are internally held high and must be set to low (GND) to enable banknote acceptance. If no Inhibit is set to low (GND) the Master Inhibit is set and the BV100 is disabled. Copyright © Innovative Technology Ltd 2017...
Page 47: Escrow Control
4.17 firmware. The BV100 has a single note escrow facility. This allows the BV100 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. Please refer to 12.4...
Page 48: Credit Hold Function
5.8.7 Credit Hold Function If this function is enabled the BV100 will take the notes as normal but then wait until the escrow line is toggled low/high before it will then give out the pulses per denomination as set. After the pulses have been given, the BV100 will wait for another low/high toggle until the full value of credit pulses are given.
Page 49: Routine Maintenance
The BV100 has been designed to minimise any performance variation over time. Much of this is achieved by careful hardware and software design. However, depending upon the environment the BV100 may at some time require cleaning, belt changing or note path clearing.
Page 50: First Level Support
Press Twice Powered ON Current Setting Indicator (within half a second) Press and hold as power is Resets ccTalk key to Powered OFF/ON applied Default setting Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 49 of 70...
Page 51: Checking Power And Communication Connections
1. Screened USB 2.0 A-B cable, less than 5-meter length, should be used in case of direct USB connection and when TTL-USB adapter is used. 2. Connecting BV100 via TTL-USB adapters, either IF-17 of DA2 ones should be used. ITL provides principal electrical scheme of IF-17 adapter, please contact support@innovative-technology.co.uk...
Page 52: Second Level Support
3. Inspect the visible parts of validator for any banknote remains, then attach cashbox. Validator should reinitialize sensors and be ready to work. Refer to if validator flashes after procedure with any flash count. Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 51 of 70...
Page 53: Cleaning The Bv100
Dirt, dust or other residue causes bad note acceptance rates and other performance degradation. The recommended cleaning interval is once a month! 1. Take off Cashbox, Bezel and Rear cover from BV100 using 3mm hex Allen key: Copyright © Innovative Technology Ltd 2017 Doc: GA717-4...
Page 55 GA717-4 BV100 User Manual << Back to Contents 3. Having access to all sensors, wipe them with a piece of cloth: Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 54 of 70...
Page 56: Clearing A Checksum Error
If error persists, use another Dataset file for downloading to localize problem reason. If error is not disappearing, use EEPROM downloader software. Please, contact support@innovative-technology.co.uk for details. Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 55 of 70...
Page 57: Re-Initialisation Of The Sensors
For this procedure, please use ITL Diagnostic Tools (v.2.0.2 and higher) and Green calibration paper LB00160. 1. Connect validator using IF-17/DA2 adapter only, open Diagnostic Tools program and choose active com-port: 2. Then press “Initialise” button: Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 56 of 70...
Page 58 GA717-4 BV100 User Manual << Back to Contents 3. Validator will start initialization procedure. Once the motor run continuously, insert green calibration paper Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 57 of 70...
Page 59 If some of statuses are red, try to repeat initialization procedure. Having same result, probably validator require repairing/some elements replacing. For initialization file receiving, please, contact support@innovative-technology.co.uk. Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 58 of 70...
Page 60: Technical Data
<< Back to Contents 9 TECHNICAL DATA 2D picture Weight • Empty BV100 Validator - 1.0 kg • Cashbox: With full 300 bills cashbox - 1.3 kg With full 550 bills cashbox - 1.6 kg With full 800 bills cashbox - 1.9 kg With full 1050 bills cashbox - 2.2 kg...
Page 61: Power Requirements
3.0 A 9.4.3 Power Supply Guidance The BV100 requires a stable 12V DC/1.0 A power supply. Please check the power requirements of your host machine and other peripherals to dimension a suitable power environment for your machine setup. TDK Lambda manufactures suitable power supplies.
Page 62: Compliances And Approvals
<< Back to Contents 10 COMPLIANCES AND APPROVALS 10.1 EC Declaration of Conformity • RoHS • EN Directives • UL • REACH • WEEE • Central Bank Approvals Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 61 of 70...
Page 63: Appendix
GA717-4 BV100 User Manual << Back to Contents 11 APPENDIX 11.1 Cable drawings CN00174 Ribbon Cable (validator to IF-17): 300 mm or longer Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 62 of 70...
Page 65: Connector Specifications
Vendor Part Number Pins Pitch Polarising Housing Leotronics 2652-2161 2.54mm With Key Crimp Leotronics 2653-2000 Female Housing Molex 90142-0016 2.54mm With Key Crimp Molex 90119-2121 Female Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 64 of 70...
Page 67: Cctalk Des Encryption - Trusted Mode
Use configuration button for rollback any previously set ccTalk key to original (see Configuration Button options, section 8.2).    Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 66 of 70...
Page 68: Escrow Control
11.5 Escrow Control The BV100 has a single note escrow facility. This allows the BV100 to hold onto the note once validated, and then only stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. If no confirmation of the Vend is received, then the note will be returned to the user after 30 seconds.
Page 70: Low Power Mode Timing Diagram
(Time A). When a note is inserted under the front sensor the BV100 wakes up and the busy line goes low to indicate that the validator is in use. The busy line remains low during the validating and stacking process and once the note has been successfully validated and stacked the vend line goes low to issue the credit.
Page 71: File Naming Convention
GA717-4 BV100 User Manual << Back to Contents 11.7 File Naming Convention EUR01514_BV01004162220000_IF_01.bv1 EUR01514 Dataset Code BV0100 416 2220000 Firmware Code * - Only available for specific Validators Copyright © Innovative Technology Ltd 2017 Doc: GA717-4 Version: 1 Page 70 of 70...
