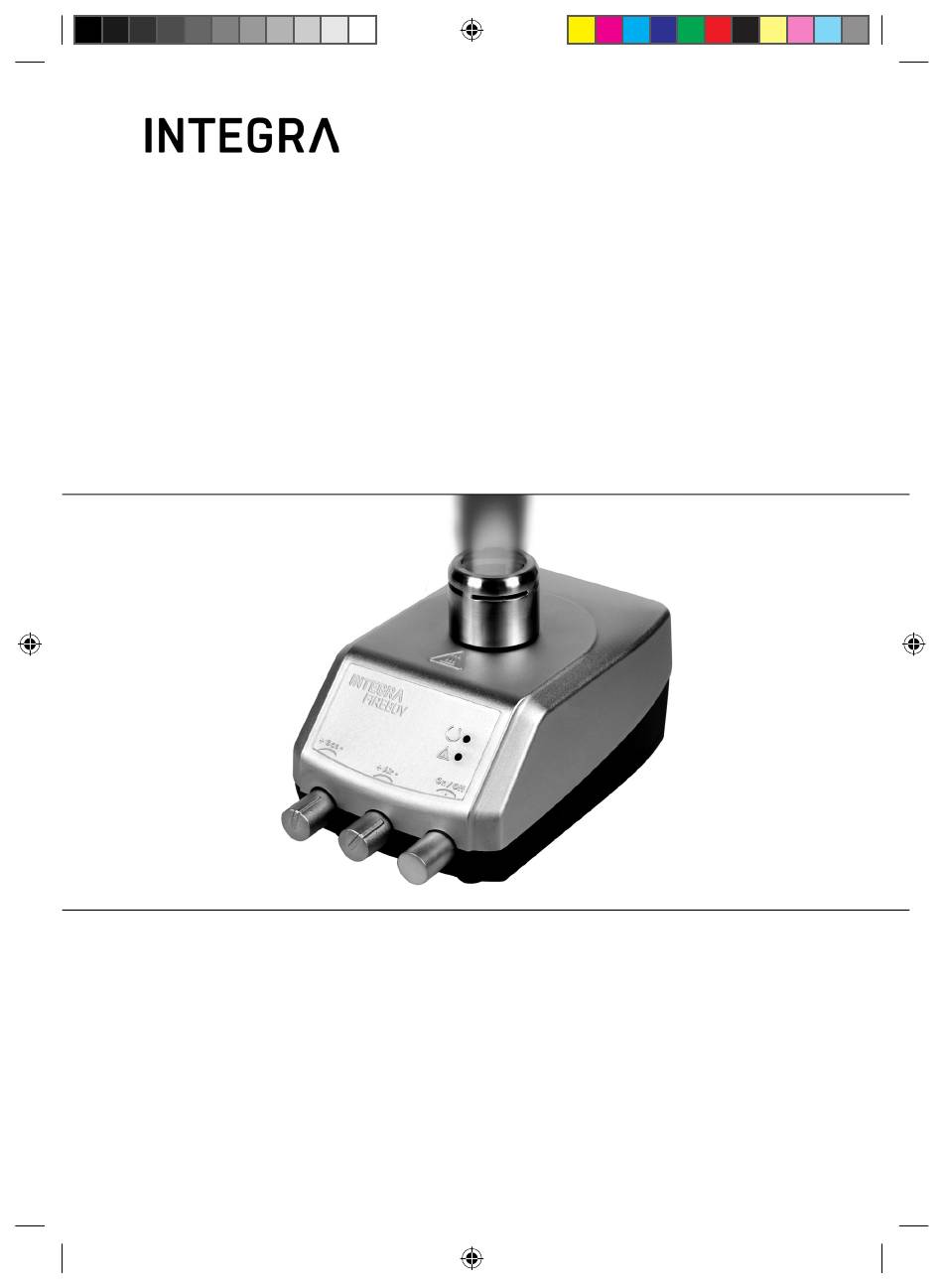

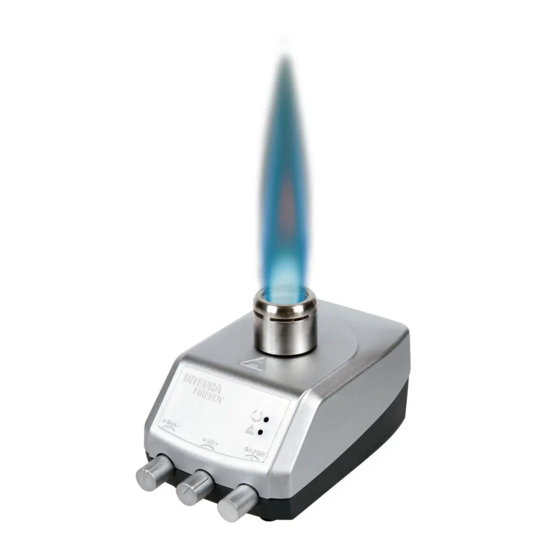

- Page 1 FIREBOY eco Operating instructions 144951_V09 144951_V09_OI_FIREBOY_eco_EN.pdf 1 03.11.2020 08:09:57...
- Page 2 Declaration of conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the devices Description Models FIREBOY plus 144000 FIREBOY eco 144010 comply with: EU Directives Low Voltage Equipment 2014/35/EU Electromagnetic Compatibility 2014/30/EU Restriction of Hazardous Substances...
-
Page 3: Table Of Contents
2.2 Overview FIREBOY eco ..............9 Chapter 3 Installation 3.1 Connecting FIREBOY eco to the electricity supply ......11 3.2 Connecting FIREBOY eco to the gas supply .........11 3.3 Connecting the foot or benchtop switch .........15 3.4 Removing and adding the burner head ..........15 3.5 Long burner head ................15... - Page 4 FIREBOY eco - Operating instructions V09 Imprint © 2020 INTEGRA Biosciences AG All rights relating to this documentation reserved. INTEGRA Biosciences AG especially reserves the rights of duplication, processing, translation and display format. Any reproduction of parts of or the entire documentation, or storage thereof on electronic media, or processing or dissemination thereof, require the prior written consent of INTEGRA Biosciences AG.
-
Page 5: Chapter 1 Introduction
FIREBOY eco - Operating instructions V09 Introduction Introduction Working with gas always involves a certain residual risk. Therefore, caution is the top priority. Important: Read these operating instructions carefully to familiarize yourself with the instrument before connecting it to the gas. Keep the operating instructions in a safe place so that you can read them again. -
Page 6: Appropriate Use
INTEGRA Biosciences, the protection provided by the FIREBOY eco may be impaired. FIREBOY eco may not be altered in design or in any of its safety aspects. If alterations are made, INTEGRA Biosciences is not liable for resulting damage. Safety features of the FIREBOY eco The FIREBOY eco is equipped with the following safety devices: •... -
Page 7: Safety Notes
INTEGRA Biosciences. • Use only original INTEGRA Biosciences mains adapter. • Do not use a FIREBOY eco or adapter which is leaking, damaged or which does not operate properly. • Use only in well ventilated location in accordance with national requirements for the supply of combustion air. - Page 8 • cleaning and repair work is being performed. 1.4.3 Restrictions for use The following uses of the FIREBOY eco are prohibited: • rotating it and using it upside down • using it as a cooker without the optionally available long burner head, see “7.1 Accessories”...
-
Page 9: Chapter 2 Description Of The Device
FIREBOY eco - Operating instructions V09 Description of the device Description of the device Scope of delivery • FIREBOY eco device • Mains adapter • Foot switch • Nozzle P60 propane/butane gas (fitted ex-factory) • Nozzle N80 natural gas • Adapter for gas hose, inner diameter 10 mm •... - Page 10 FIREBOY eco - Operating instructions V09 Description of the device Burner head 7 Ignition electrode 8 Burner chamber with flame opening 9 Electrode of the flame monitor Rear view 10 Switch connection (jack) 11 Mains plug socket (mains plug) 12 Gas adapter opening (for engaging)
-
Page 11: Chapter 3 Installation
30% in liquid phase. 3.2.1 Fitting the nozzle for the gas in use The P60 nozzle for butane/propane gas is fitted ex-factory for FIREBOY eco. If necessary, the nozzle must be fitted for the gas in use. Nominal = maximum... - Page 12 3.2.2 Installation and removal of the adapters for the gas connection The adapters for the central gas supply, the gas cylinder, or the gas cartridge are inserted in the gas adapter opening of the FIREBOY eco without the gas cartridge (see “Rear view” on page 10).
- Page 13 FIREBOY eco - Operating instructions V09 Installation 3.2.3 Connecting the gas cartridge The following gas cartridge types may be used: • CV 360 (about 30 min. flame duration) • CP 250 (about 200 min. flame duration) • CV 300 Plus (about 180 min. flame duration) •...
- Page 14 Connect the tubing from the central supply or from the gas cylinder to the previously installed adapter and fix it with a clip if necessary. FIREBOY eco is now connected to the gas supply. 3.2.6 Tightness test Before using the FIREBOY, firmly tighten all gas connections and verify gas tightness, e.g.
-
Page 15: Connecting The Foot Or Benchtop Switch
AUTION Never carry the device by the burner head. Long burner head If the FIREBOY eco is used for continuous operation, the optionally available long burner head must be used. For installation see previous section. AUTION The minimum distance between the tip of the burner head and the object to be heated, e. -
Page 16: Chapter 4 Operation
Risk of burns! Even after it is switched off, the device may still be hot. operating mode OOT SWITCH FIREBOY eco is ignited by activating the foot or benchtop switch. The flame burns as long as the switch is depressed. operating mode via the PUSH BUTTON... -
Page 17: Working With Liquids
Working with liquids In order to protect the burner chamber from contamination when working with liquids, the folding stand at the base of FIREBOY eco can be used to incline the device. The inclination direction can be modified by removing the folding stand after pressing it together and inserting it on the opposite side. - Page 18 FIREBOY eco - Operating instructions V09 Operation Error message Technical cause Possible cause and correction Red LED is The flame monitor No gas supply is connected. flashing does not detect Connect the gas supply (1x per sec), a flame.
-
Page 19: Chapter 5 Maintenance
Switch off the device and disconnect it from the gas supply. Allow the device to dry before operating it again. Cleaning and servicing FIREBOY eco body and burner head should be regularly cleaned in order to maintain a high availability. Maintenance intervals depend on operating conditions and degree of pollution. -
Page 20: Decontamination
Maintenance Decontamination If the housing of the FIREBOY eco have been in contact with biohazardous material, it must be decontaminated in accordance to good laboratory practice. Do not spray directly on the instrument but use a lint-free cloth, lightly soaked with a disinfectant and wipe dry directly after decontamination. -
Page 21: Chapter 6 Technical Data
FIREBOY eco - Operating instructions V09 Technical data Technical data Specifications Device Type Safety Bunsen burner Dimensions (W x D x H) 100 x 150 x 60 mm without burner head Weight 1.3 kg Electricity supply Mains adapter Input: 100–240 VAC, 50/60 Hz Device Input: 8–10 VDC, 5 W... -
Page 22: Chapter 7 Accessories
FIREBOY eco - Operating instructions V09 Accessories Accessories A variety of accessories are available, which adapt FIREBOY eco to the respective application requirements and work environments. Accessories Accessories Part No. Gas cartridge adapter with pressure regulator 144 055 for Campingaz CV 360. - Page 23 FIREBOY eco - Operating instructions V09 Accessories Accessories Part No. Borosilicate glass splash protector 143 210 Burner head 144 300 Long burner head, for continuous operation 144 306 Mains adapter Europe 230 VAC 156 631 Mains adapter UK 240 VAC...
