Summary of Contents for Integra FLAMEBOY

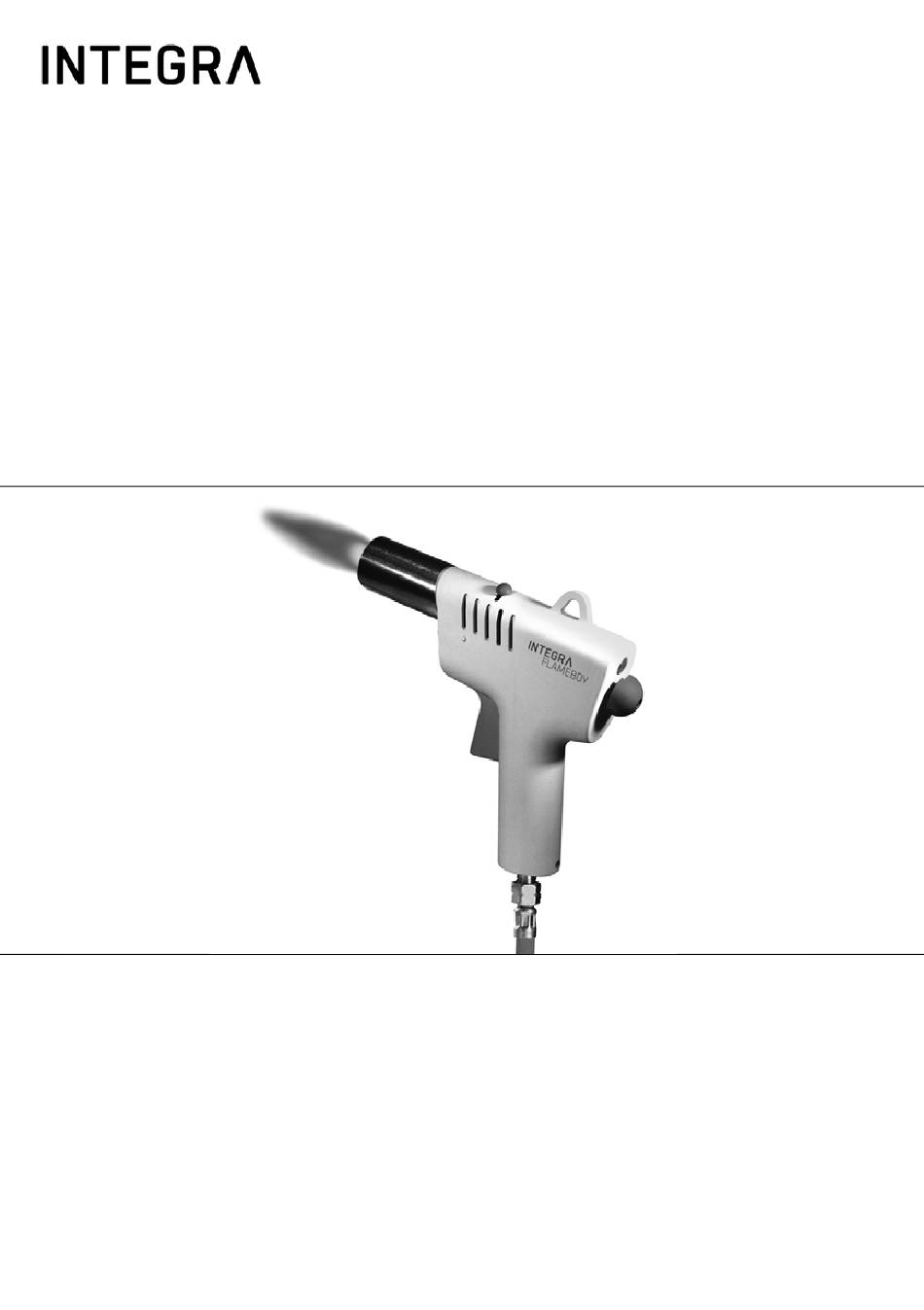

- Page 1 FLAMEBOY Operating instructions 465051_V03...
-
Page 2: Table Of Contents
Chapter 3 Installation 3.1 Operating environment .............6 3.2 Connecting the FLAMEBOY to the gas supply......6 3.2.1 Fitting the nozzle for the gas in use ........6 3.2.2 Connecting to central gas supply or a gas cylinder ....7 3.2.3 Connecting to gas cartridges ..........7 3.2.4 Replacing the gas cartridges ..........8... -
Page 3: Chapter 1 Introduction
These operating instructions contain all information required for the commissioning, operation and maintenance of the flame-sterilizer FLAMEBOY. This chapter informs about the symbols used in these operation instructions, the intended use of the FLAMEBOY and the general safety instructions. Symbols used... -
Page 4: Safety Notes
GMP, FDA, must be observed. 1.3.2 General safety notes FLAMEBOY may not be altered in design or in any of its safety aspects. If alterations are made, INTEGRA Biosciences will be relieved from all liability for any resulting damage. • Do not carry out any conversions and alterations on the device. -
Page 5: Description Of The Device
FLAMEBOY – Operating instructions V03 Description of the device Description of the device Scope of delivery Part No. 145 000: • FLAMEBOY device • Adapter for standard gas hose with inner diameter 10 mm • Threaded adapter for ¼” gas hose, left hand thread •... -
Page 6: Chapter 3 Installation
Installation Installation Operating environment The FLAMEBOY has been designed for use in a laboratory. It shall be operated in a dry and dust-free location with a temperature of 5-40 °C and a maximal (non-condensing) relative humidity of 80 %. Connecting the FLAMEBOY to the gas supply The FLAMEBOY is appropriate for use with natural gas (gas mixture, >85% methane,... -
Page 7: Connecting To Central Gas Supply Or A Gas Cylinder
3.2.2 Connecting to central gas supply or a gas cylinder Connecting to gas tubing with 1/4” threaded connector Insert the threaded adapter (b) into the gas adapter opening of the FLAMEBOY (a). Making sure it audibly clicks into position. Screw the threaded connector (left-hand thread) of the gas tubing (c) onto the adapter and tighten it with a 17 mm fork wrench. -
Page 8: Replacing The Gas Cartridges
Installation Connecting gas cartridge Express 444: Insert the gas cartridge adapter (b) to the gas adapter opening of the FLAMEBOY (a). Make sure it audibly clicks into position. Hold the knurled wheel (b) and connect the gas cartridge by screwing it clockwise to the gas cartridge adapter. -
Page 9: Chapter 4 Operation
When using the FLAMEBOY, always point away from yourself and do not point in the direction of other persons or inflammable products. Risk of burns! Even after the FLAMEBOY is switched off, the burner tube (9) may still be hot. -
Page 10: Chapter 5 Maintenance
Disconnect the device from the gas supply. Allow the device to dry before operating it again. Use a cloth moistened with soapy water or a 70% ethanol solution to clean the FLAMEBOY. The burner tube (9) can be cleaned with commercially available disinfecting or cleaning agents. Disposal FLAMEBOY is labelled with the “crossed-out wheeled bin”... -
Page 11: Chapter 6 Technical Data
50 mbar Natural gas 20 mbar Town gas 8 mbar Accessories A variety of accessories are available, which adapt FLAMEBOY to the respective application requirements and work environments. Accessories Part No. Gas cartridge adapter for Campingaz CV 360 145 010... - Page 12 Any reproduction of parts or the entire documentation, or storage thereof on electronic media, or processing or dissemination thereof, require the prior written consent of INTEGRA Biosciences AG. These operating instructions have the part number 465051; the version is V03.
