Integra FIREBOY Series Quick Start Manual

Quick Start Guide
This quick start guide is intended to provide a quick overview of your FIREBOY's (FB)
key features and to offer basic instructions for getting started. For detailed
information, please refer to the operating instructions (OI) that can be found at
www.integra-biosciences.com

Intended use

This is a general-purpose laboratory instrument. Any use of this instrument in a medical or IVD
setting is the sole responsibility of the user. FIREBOY plus/eco is an automatic safety Bunsen burner
for heating or flame-sterilizing suitable laboratory materials. For continuous operation the optionally
available long burner head must be used.

Safety information

Regardless of the listed safety notes, all locally applicable regulations must be observed.
1) FIREBOY may only be used by properly trained personnel under constant supervision in a
manner specified by INTEGRA Biosciences.
2) Observe the hazard warnings on the device. There is the risk of burns from the flame and the
still hot device.
3) Do not use the FIREBOY near flammable material or in explosive areas. Work only in well
ventilated areas.
4) Use only approved and tested safety gas tubing with threaded or hose connectors.
5) Firmly tighten all gas connections and verify gas tightness, e. g. with soap water.
6) Use only original INTEGRA Biosciences power supply pack or rechargeable batteries (FB plus
only).
7) Be sure to close off the gas supply before: Transport of the device, changing the nozzle, the
adapter, the gas cartridge or the battery, longer breaks, cleaning work.
8) Servicing work and repairs may only be performed by INTEGRA Biosciences or an authorized
after-sales service member.

Getting started

Set up the instrument on a planar surface according to the IQ/OQ document (PN 144953).
Supply voltage: 100
d
e
f

Settings and language selection (FIREBOY plus only)

Rotate the MENU KNOB to switch between the operating modes and select them by pressing down.
Adjustable parameters are displayed on a black background. These can be changed by rotating the
MENU KNOB and confirmed by pressing.
144952_V01_QSG_FIREBOY_EN.docx

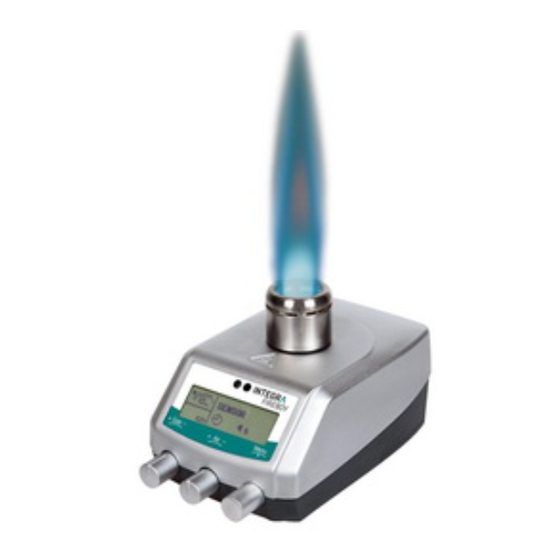

FIREBOY plus/eco Safety Bunsen Burner
in different languages.
– 2 4 0 V A , C 5 0 – 6 0 H . z

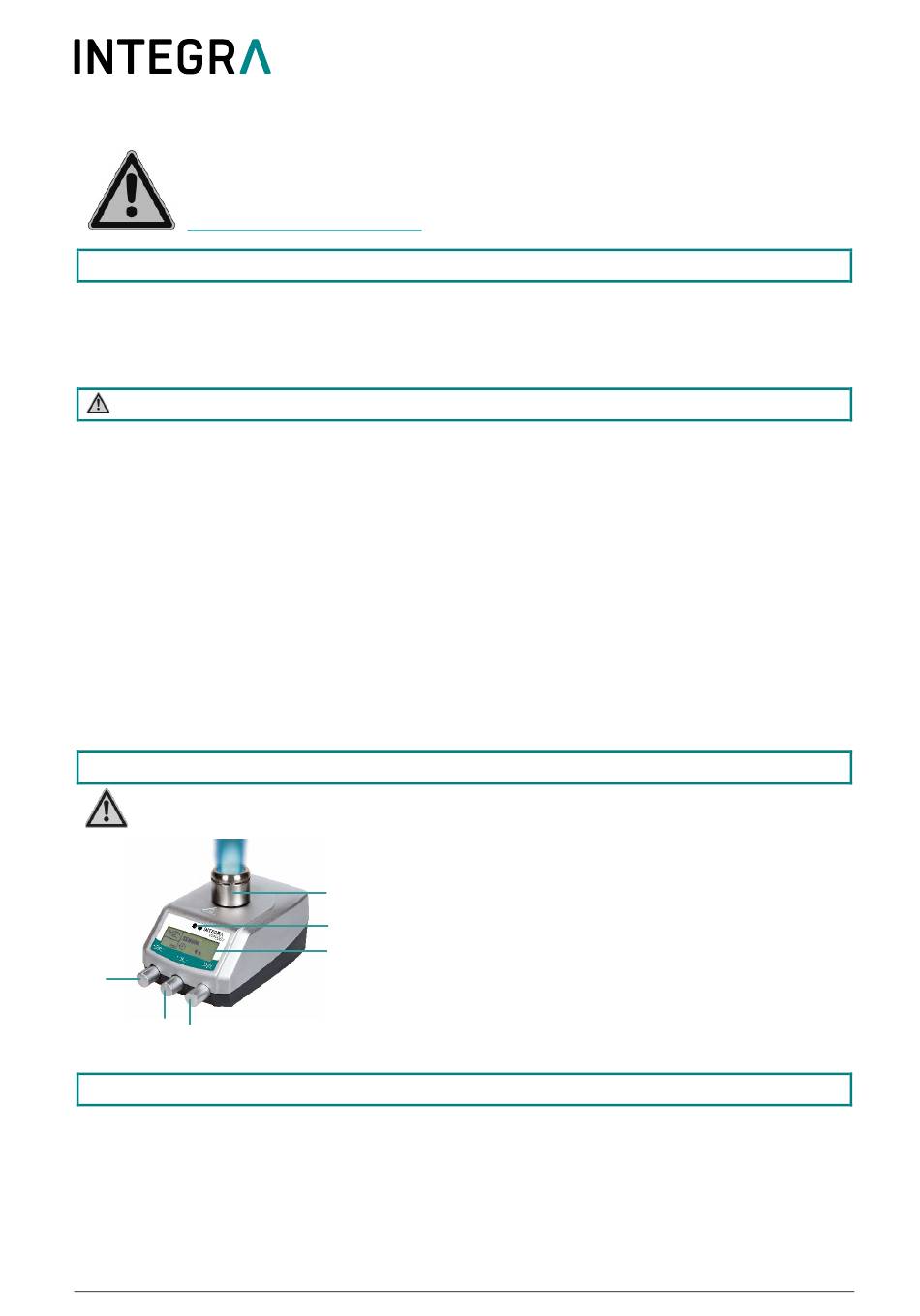

a. Burner head
b. Motion sensor (FB plus only)
c. LCD display (FB plus only)
a
d. GAS KNOB, to adjust the flame size
b
e. AIR KNOB, to adjust the flame temperature
c
f. MENU KNOB (FB plus) / PUSH BUTTON (FB eco), to
switch on/off, for flame ignition or extinguishing and for
menu navigation
Switch on/off:
ON: Press (f) briefly, OFF: Press (f) for 2 sec
1/4
