STEP 3.

Attach Gripper to Carriage

Insert the stud on the large knob through the
gripper and into the threaded hole in the T-
support.
You can screw the knob into the hole a few turns
and then slide it onto the end of the carriage.

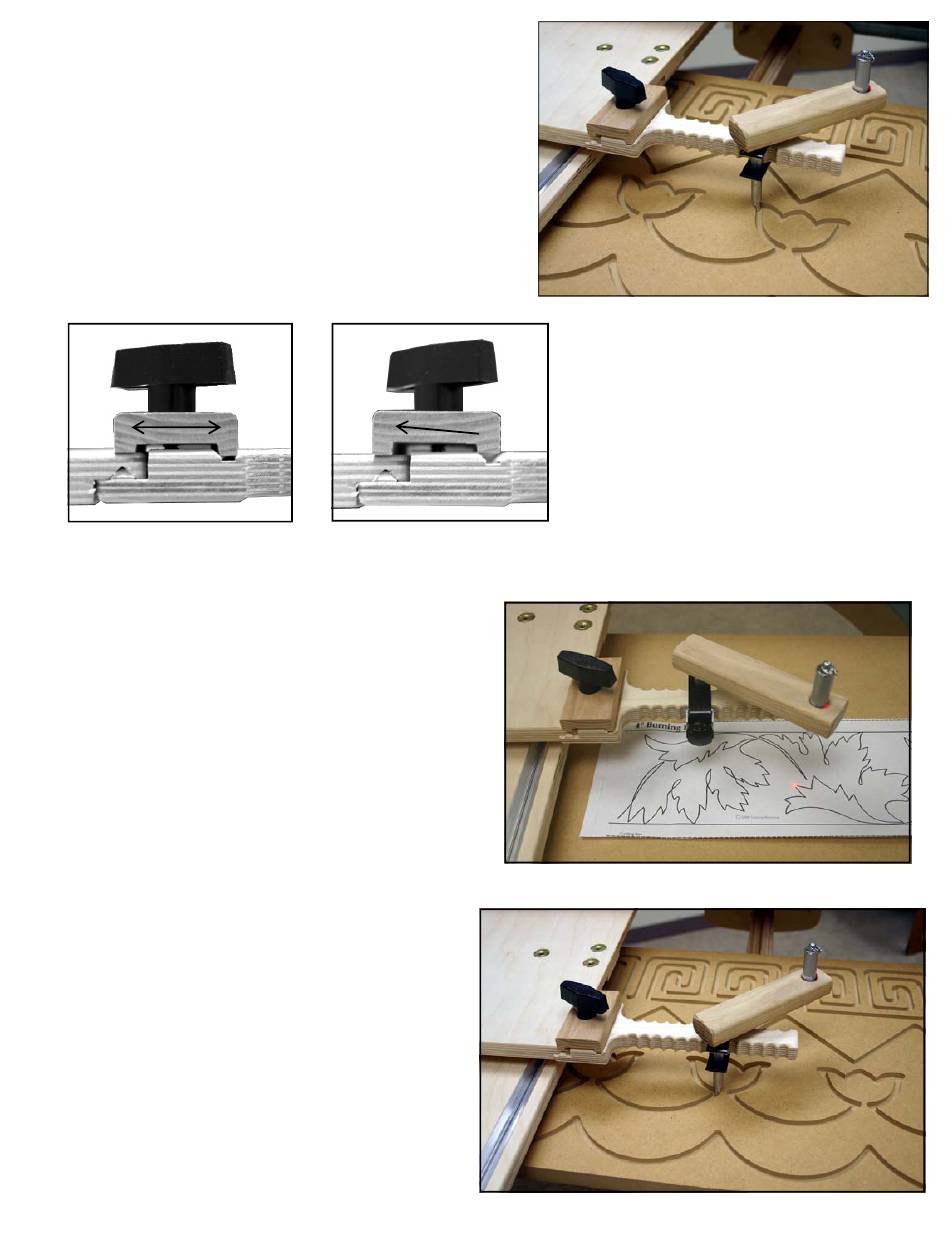

See Fig 4
One side of the gripper is larger than the other,
make sure that you have the gripper oriented the
correct way (See Figs 5 & 6). If incorrectly as-
sembled it will tilt slightly up on one side.
FIG. 4
FIG. 5 FIG. 6
RIGHT WRONG
STEP 4.

Attach Laser Pointer

Set the laser pointer in the large hole in the
end of the stylus holder. You may want to
cut off the key ring with a wire cutter. To turn
on the laser pointer, push it down so that the
button is depressed. When you are done us-
ing the laser pointer, raise it back out of the
hole so that it turns off again. See Fig. 7
FIG. 7
STEP 5.

Template Stylus

The end of the stylus has been turned down
to fit inside a 1/4" template groove.
Loosen the small black knob and lower the
stylus down into the groove. When not using
the template stylus, you can secure it above
the height of the template board so that it
doesn't interfere with your laser pointer.
You can order template boards with pre-cut
patterns from our website, or you can create
them yourself with a hand-router.
FIG. 8
