Locate bag of hardware labeled "Carriage Handle Hardware"
STEP 1.

Begin Handle Assembly

Use machine screws to attach L-shaped
handle part to bottom of upper slide. See
Fig. 1.
The slide has threaded inserts in the bottom.
Insert the first screw part way, carefully en-
gaging the threaded insert. Similarly, insert
the second and third screw part way before
going back and tightening all three.
STEP 2.

Assembling T-Bracket

Slide T-bracket over top of L-shape handle
part. Screw knob with a short stud partway
into T-shaped bracket. The knob should an-
gle towards the back of the slide. Tighten at
desired height. You can re-adjust it later
when you mount the sewing machine on the
carriage. See Fig. 2.
STEP 3.

Assembling Metal Handle

Slide I-horizontal handle support bar into the
top of the T-bracket. Tighten in place with
knob with short stud.
The holes drilled thru the bar should be lo-
cated on the sides of the bar.
See Fig. 3.
STEP 4.
Attaching U-Handle
Insert knob with long stud through I-
horizontal support, and into U-handle. See
Fig 4. If you have trouble tightening this
knob down all the way, insert the plastic
washer in between the knob and the horizon-
tal support.
A tip for positioning the U-Handle:
Tighten the U-handle knob until it is snug
Hold knob and turn the handle itself in a
tightening direction, while tightening the
knob. After a few tries alternately tightening
the knob and moving the U-handle, you will
end up with the handle in the position you
want and it will be tight.

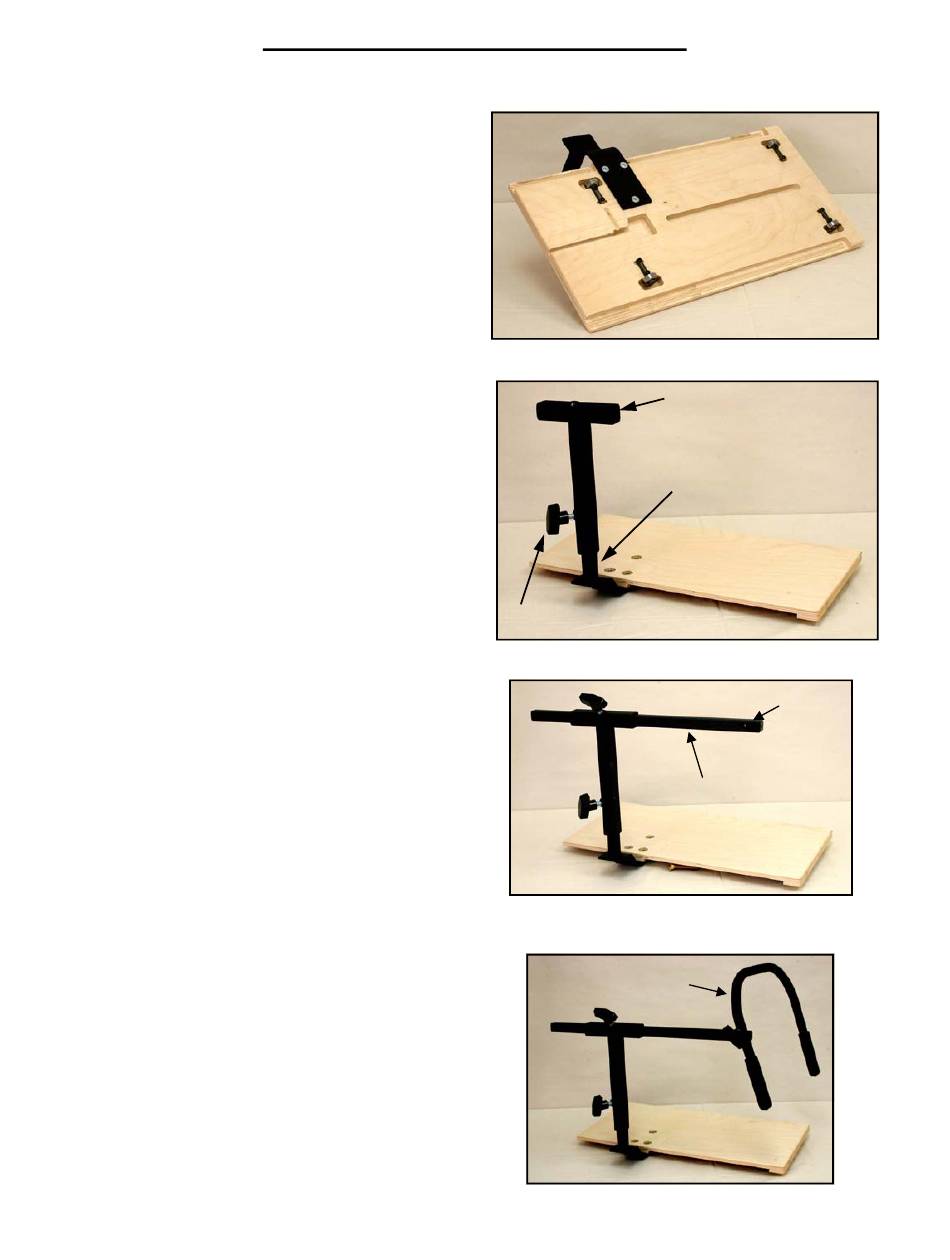

CARRIAGE HANDLE INSTRUCTIONS

BACK
Knob
U-Handle
18
FRONT
FIG. 1
T-Bracket
L-Shaped
Handle
FIG. 2
Holes
I-Horizontal
Handle
FIG. 3
FIG. 4
