Basic Setup

6 Pin connection
(JST-SH-1mm 6-pin)
This can be connected via straight 6 pin adapter to any FETtec FC / KISS FC serial port
OSD only works with connected camera!

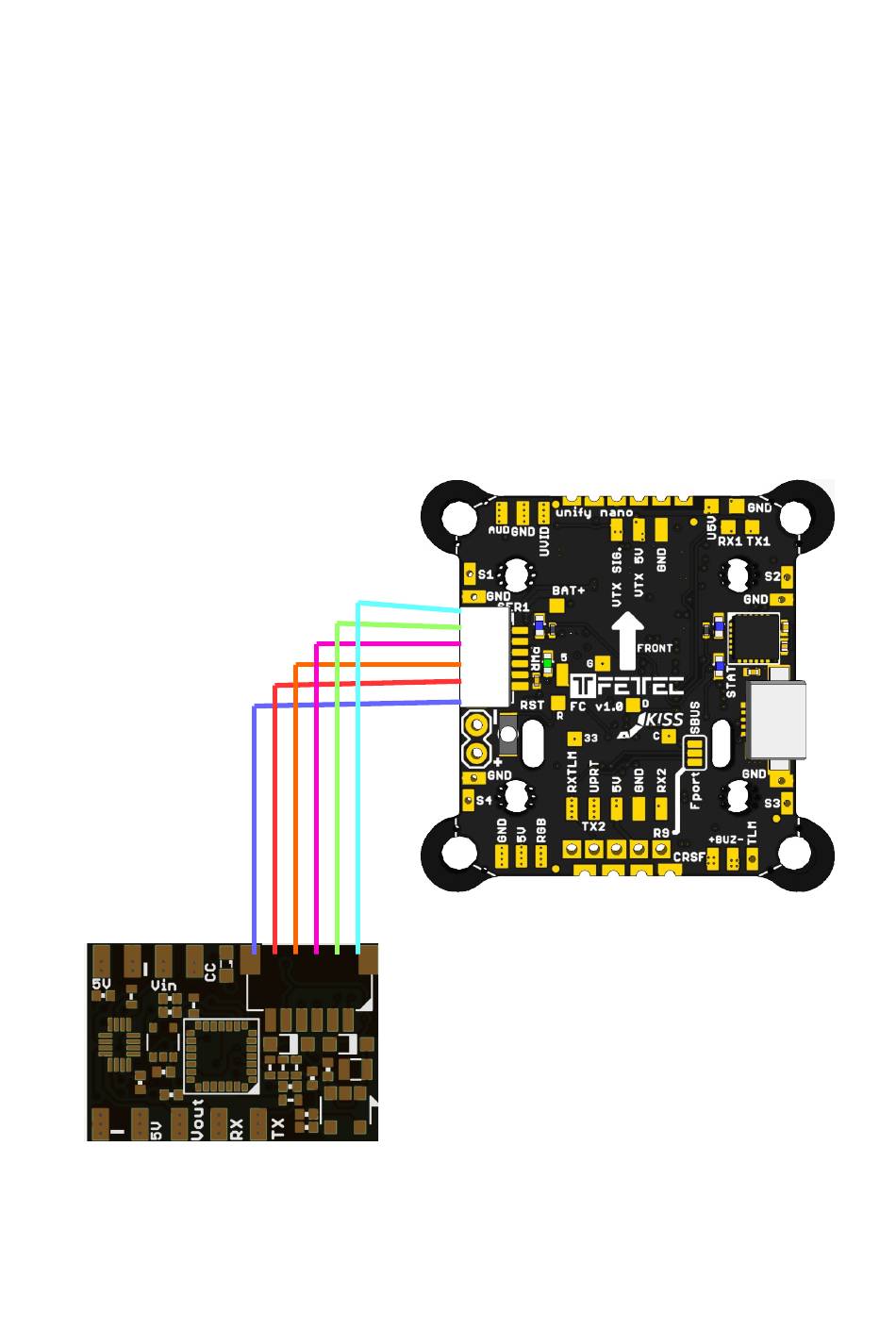

FETtec OSD Board to FETtec KISS FC
RX 1
TX 1
RGB LED
BAT+
VTX 5V
GND
Page 5
(cable included)
