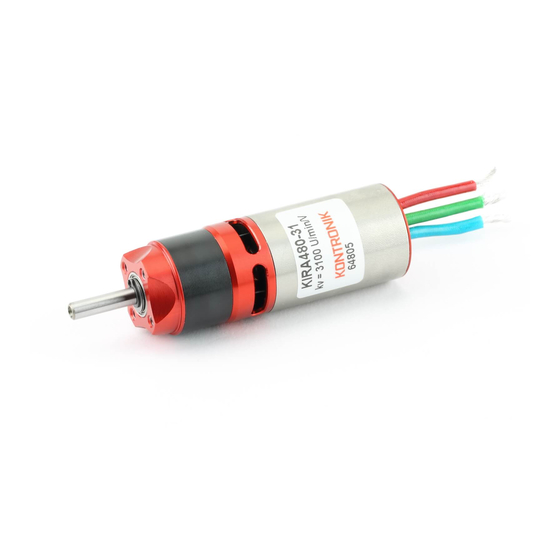

KONTRONIK KIRA 400/480-Serie Motoren Bedienungsanleitung KONTRONIK KIRA 400/480-Series Motor Operation Manual www.modellmarkt24.ch www.modellmarkt24.ch...
Page 2
Deutsche Bedienungsanleitung 1. Allgemeine Hinweise KONTRONIK KIRA - Motoren sind bürstenlose Motoren. D.h. sie arbeiten ohne Kollektor und Kohlebürsten und benötigen daher eine Kommutierung durch den Drehzahlsteller. Dafür sind folgende Drehzahlsteller von KONTRONIK empfohlen: Motortyp Drehzahlsteller KIRA Serie Pix- / Jazz / Jive - Serie Eine Benutzung des Motors mit Drehzahlstellern für Büstenmotoren oder ein Direktan-...
Page 3
Einwirkung, Feuchtigkeit, usw.) keinesfalls weiter verwenden. Es kann zu einem späte- ren Zeitpunkt zum plötzlichen Versagen des Motors kommen. • Ein Elektromotor wird durch zu hohe Wärmeentwicklung zerstört. KONTRONIK KIRA - Motoren sind bis 150° C Wicklungstemperatur hitzefest. Es ist gegebenenfalls für eine wir- kungsvolle Kühlung zu sorgen.
Page 4
Hotline : 0800 / BRUSHLESS (0800/278745377) (aus Deutschland kostenlos) 9. EG-Konformitätserklärung Für alle Produkte der KONTRONIK Elektromotoren Familien wird hiermit bestätigt, dass sie den EMV - Richtlinien 89/336/EWG, 91/263/EWG und 92/31/EWG entsprechen. Folgende Fachgrundnormen wurden herangezogen: EN 61000-6-1 KONTRONIK GmbH Rottenburg, den 07.02.2008...
Page 5
• This motor (especially with propeller) can cause considerable injuries. Considerable injuries can also be caused through flying off parts. • Too much heat will destroy the motor. KONTRONIK motors are heat resistant up to 150° C in the winding. An appropriate cooling is necessary.
Page 6
• Do not open the motor. Sensible parts inside the motor may be damaged. 6. Warranty KONTRONIK guarantees this product to be free from factory defects in material and workman- ship for a period of 24 months from date of purchase. This warranty does not cover: suitability for specific application, components worn by use, application of reverse or improper voltage, tampering, misuse or shipping.
Page 7
Hotline: 0800/ BRUSHLESS (0049-800/278745377) 9. EG conformity declaration For all products of the KONTRONIK Motor family we confirm that the electromagnetic compati- bility directives 89/336/EWG, 91/263/EWG and 92/31/EWG are met. The following fundamental standards were used: EN 61000-6-1 KONTRONIK GmbH Rottenburg, 07.02.2008...
Page 8
10. Technische Daten / technical data KIRA 400-27 400-34 400-39 480-26 480-31 2700 3400 3900 2600 3100 U/min/V / RPM/V Drehzahlabhängig – siehe Kapitel 13 Dauerstrom / related to rotation speed as shown in chapter 13 Current cont. 39mOhm 23mOhm 17mOhm 20mOhm 14mOhm...
Page 9
11. Abmessungen / Dimensions Kira 400/480-xx (front view) Kira 400/480-with gearbox (front view) www.modellmarkt24.ch www.modellmarkt24.ch...
Page 11
12. Drehzahl / Leistungsdiagramm – rotation speed / powerinput Die Dauerleistung ist die zulässige Leistung in Abhängigkeit der Drehzahl des Motors bei 25° C Raumtemperatur. Bei höheren Temperaturen nimmt die Belastbarkeit ab. Eine Überlastung des Motors führt zur Zerstörung der Wicklung und der Magnete. The maximum power input is defined as cont.
