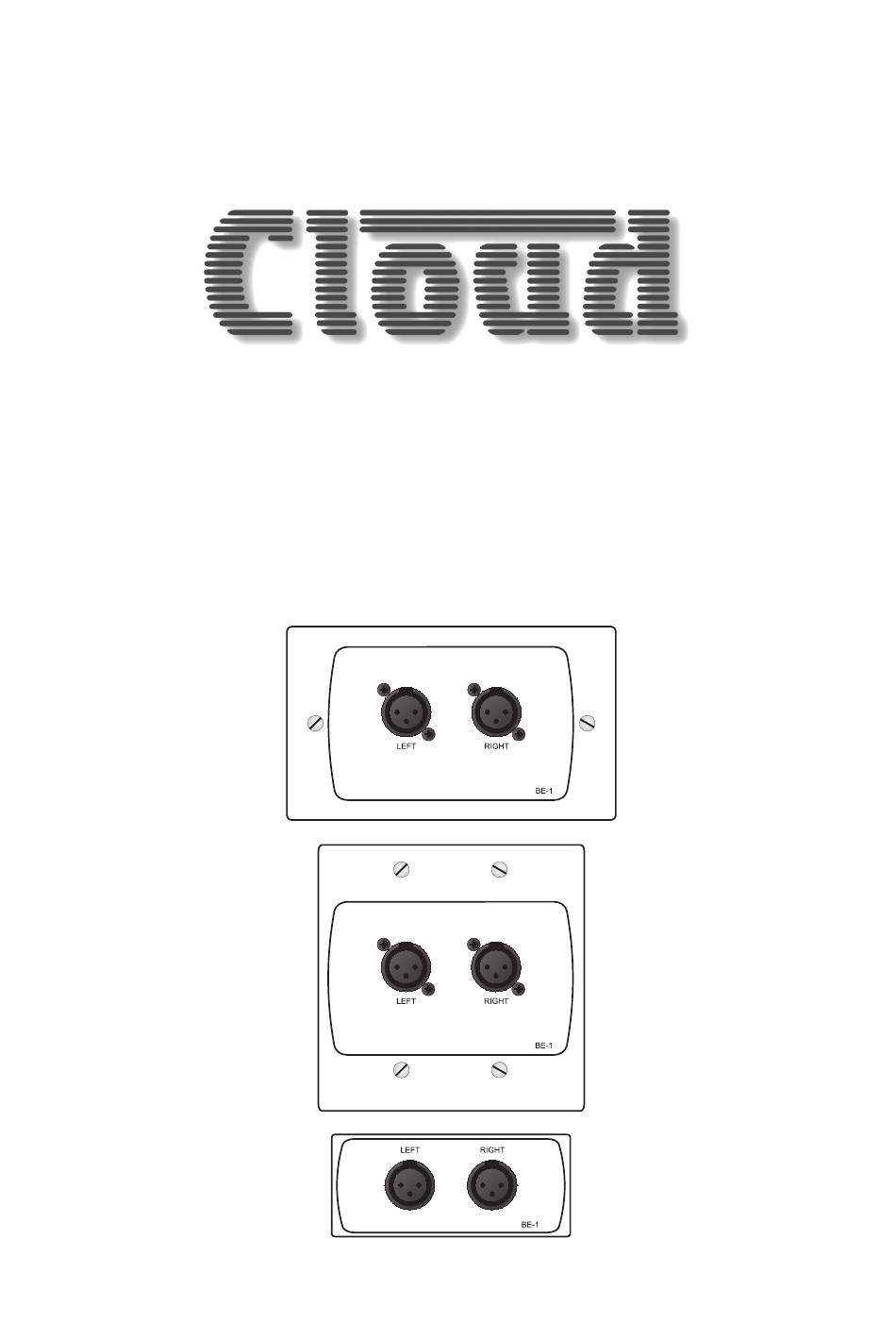

- Page 1 BE-1Series Balanced Line Input Modules Installation Guide...

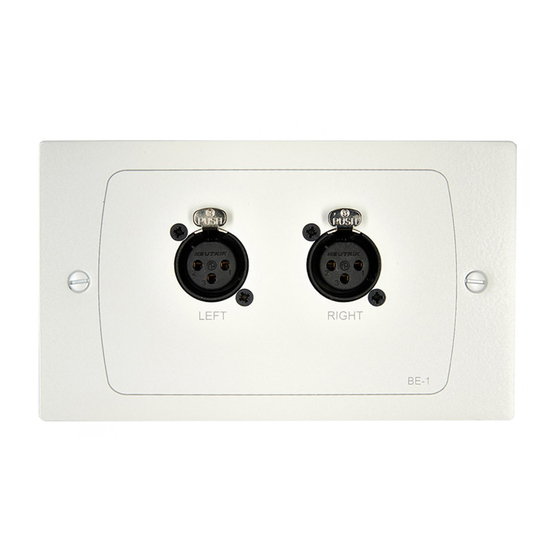

- Page 2 Introduction The BE-1 is a remote line input module for use with the Cloud DCM1 range of Digitally Controlled Mixers. It cannot be used with any other Cloud product. NOTE 1: All references to “DCM1” in this Installation Guide can be taken to apply to all models in the DCM1 range.
- Page 3 Cat 5 cable using the pinout shown below. CAT-5 CORE Left (cold) White + Orange Left (hot) Orange Sense White + Green DC +ve Blue White + Blue DC -ve Green Right (hot) White + Brown Right (cold) Brown Screen Connector Shell BE-1 Series Installation Guide v2.0...
- Page 4 Interconnecting BE-1 and LE-1 remote input modules The Cloud LE-1 is an alternative range of optional remote line input modules, providing an unbalanced stereo line input on both phono sockets and a 3.5 mm jack socket. BE-1 modules may be intermixed with LE-1s in a daisy-chain wiring arrangement in the manner described for BE-1s alone, using the LE-1’s OUTPUT and LINK connectors.
