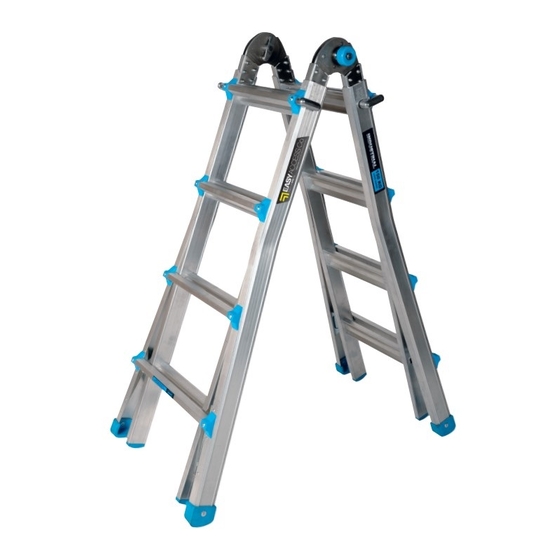

TELESCOPIC MULTI-PURPOSE LADDER
WARNING
1. Read these instructions completely before
using the ladder. If you don't understand call
+64-9-431-1055 for assistance.
2. Failure to comply with all instructions may
result in serious injury.
3. This Manual should be read in conjunction with
instructions on the ladder itself.
FREEPHONE 0800 394 222
sales@easyaccess.co.nz www.easyaccess.co.nz
OX
TRADE TELESCOPIC
®
MULTI-PURPOSE LADDER
OPERATING PROCEDURE AND
SAFETY INSTRUCTIONS
2
3
4
4
5
6
7
8
