Pyle PLVW92U User Manual

PLVW92U - PLVW125U - PLVW154U - PLVW194U
Video Monitor Panel Display Screen, Full HD 1080p Support, HDMI/RCA/VGA Connectors
The Pyle 'PLVW' LCD Monitor Display Screens are universal and can be used in a wide variety of applications. Mount the versatile video
display in your vehicle, at home or in the o ce. They are perfect for custom installations and can be used for convenient safety
surveillance monitoring, vehicle media entertainment, as an optional second monitor expansion and more. The slim-styled panel design
allows for simple HD high-resolution video display ability wherever needed. Connect your system using the inputs: (2) RCA video, (1)
HDMI and (1) VGA connector; it also features RCA audio (LIR) connector jacks for connection to an external sound system.
Enjoy the convenience of widescreen HD video display with the Pyle 'PLVW' Universal Monitor Systems.

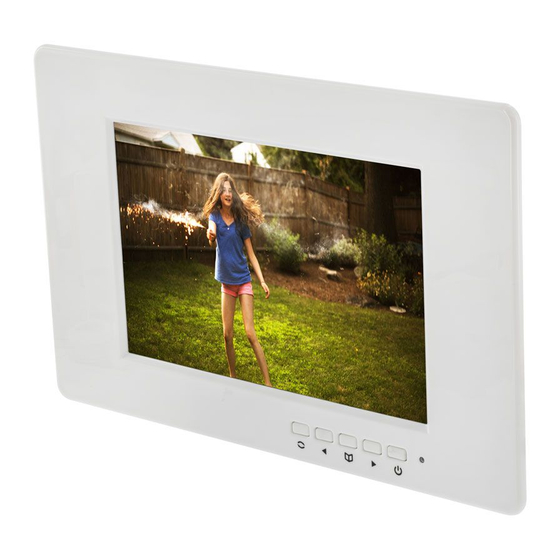

FRONT PANEL
1. MODE: Switch between the video
inputs. (HDMI,RCA1,RCA2,VGA)
2. Analog Decrease: Forward select
setting the items or analog
decrease menu.
3. MENU: Open the menu to
adjust the units display settings.
4. Analog Increase:
Backward select setting the items
or analog increase menu.
5. POWER: Turn the unit on and o .
6.1R: Remote control receiver.
WIRING
Power supply do not meet the polarity, otherwise It will damage lnsurance tube.
(Fuse Speci cations : 3A or 5A)
VGA Supported Video Modes: Maximum matching resolution
MENU OPERATION
Use the unit to achieve the desired settings.
1. Press the MENU button on the unit to bring up the on-screen picture control menu.
2. Select the desired menu by pressing the Remote left/right button on the unit to choose BRIGHTNESS-CONTRAST-HUE-
SATURATION-LANGUAGE SOURCE-RESET-EXIT. Press the Remote MENU button to enter into the control menu.
3. Adjust the current settings with the left/right button on the unit, then press the MENU button on unit to achieve the desired
settings and return to the upper level of the menus.
Notice: In di erent mode menu is slightly di erent.
Please read this manual thoroughly
before using this product and keep
for future reference.
HDMI Supported Video Modes:
1080P/1080I/720P/480P/576P
Important Note:
Video Inputs: RCA/VGA are used only for
video signal input transmission
-- do not support audio
REMOTE
REMOTE CONTROL BATTERY
1. Always use new batteries when relacing
the old set.
2. Do not attempt to charge, short-circuit,
disassemble, heat or burn used batteries.
3. Battery replacement is necessary when
remote control acts sporadically or stops
operating this device.
4. Do not place objects between the remote
receiver.
5. lf the monitor does not operate even when
operating the remote control from a close
range, it is time to replace the batteries.
