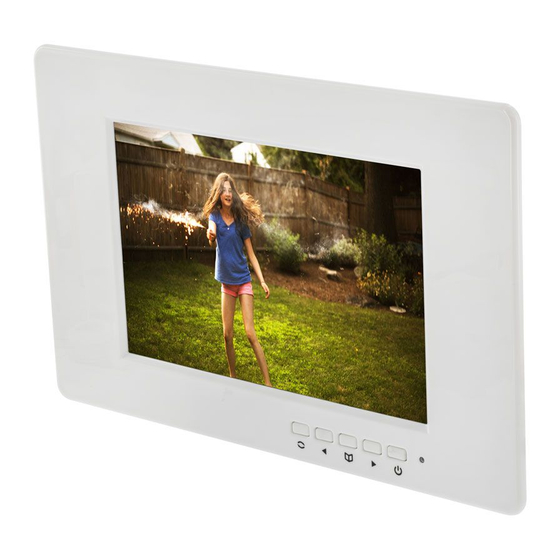

Pyle PLVW125U Manual

The Pyle 'PLVW' LCD Monitor Display Screens are universal and can be used in a wide variety of applications. Mount the versatile video
display in your vehicle, at home or in the office. They are perfect for custom installations and can be used for convenient safety
surveillance monitoring, vehicle media entertainment, as an optional second monitor expansion and more. The slim-styled panel
design allows for simple HD high-resolution video display ability wherever needed. Connect your system using the inputs: (2)
RCA video, (1) HDMI and (1) VGA connector; it also features RCA audio (L/R) connector jacks for connection to an external sound system.
Enjoy the convenience of widescreen HD video display with the Pyle 'PLVW' Universal Monitor Systems.

FRONT PANEL

1.MODE
Switch between the video inputs.
(HDMI, RCA1,RCA2, VGA)
2.Analog decrease
Forward select setting the items or
analog decrease menu.
3.MENU
Open the menu to adjust the units
display settings.
4.Analog increase
Backward select setting the items or
analog increase menu.
5.POWER
Turn the unit on and off.
6.IR
Remote control receiver.

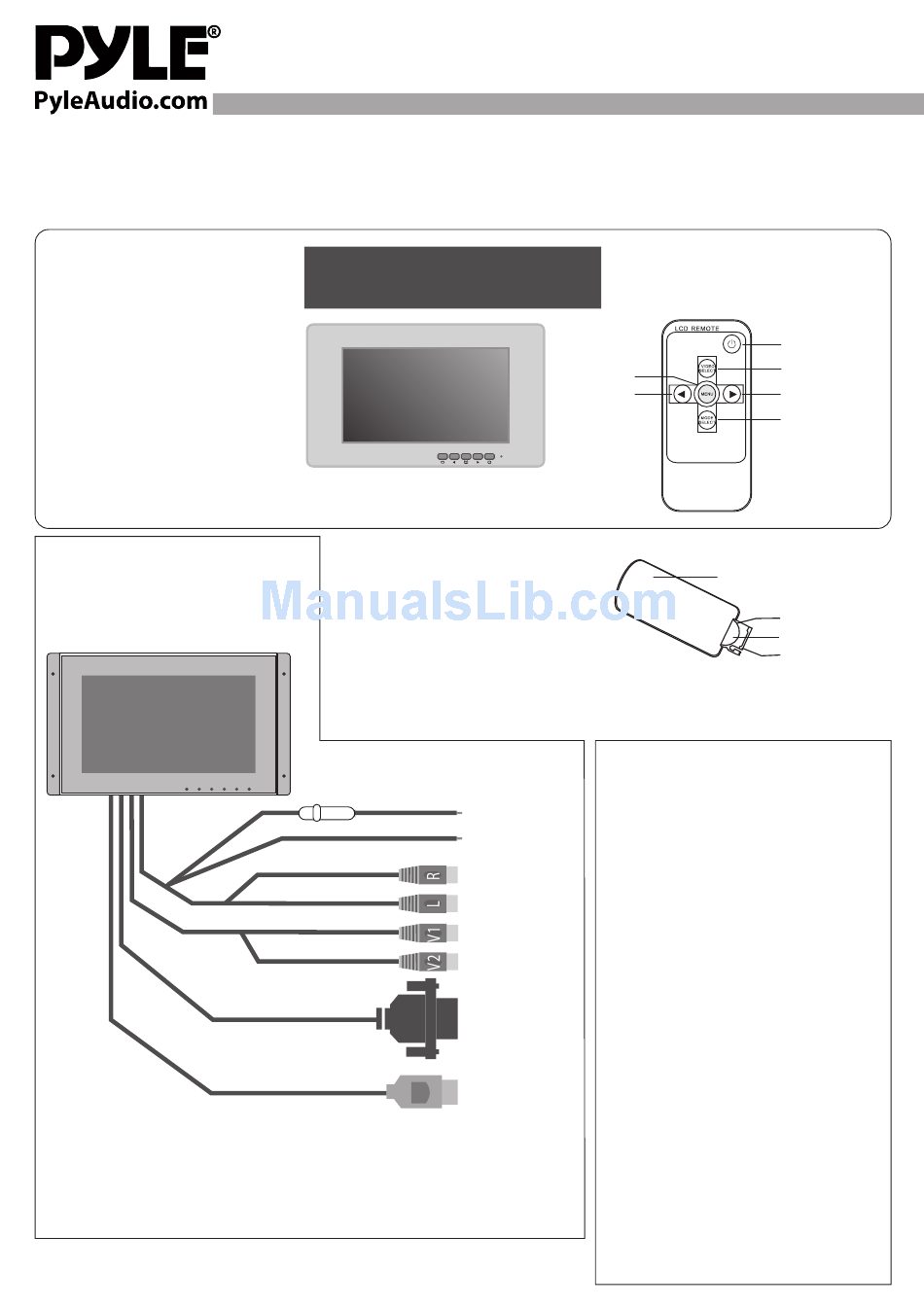

WIRING
Power supply do not meet the polarity, otherwise it will damage insurance tube.
(Fuse specifications: 3A or 5A)
VGA supported video modes: Maximum matching resolution 1366 x 768pixel
HDMI supported video modes: 1080P/1080I/720P/480P/576P
visit www.PyleAudio.com
Please read this manual thoroughly.
Before using this product and keep
it well for future reference.
1 2 3 4 5 6
REMOTE CONTROL BATTERY
1. Always use new batteries when
relacing the old set.
2. Do not attempt to charge, short-circuit,
disassemble, heat or burn used batteries.
3. Battery replacement is necessary when remote
control acts sporadically or stops operating this device.
4. Do not place objects between the remote receiver.
5. If the monitor does not operate even when operating the
remote control from a close rangre, it is time to replace the
batteries product number:(CR2025)
red line
Fuse Box
black line
for more information
Menu
Analog decrease
IR

MENU OPERATION

Use the unit to achieve the desired
settings.
DC 12V 1.Press the MENU button on the unit to
bring up the on-screen picture control
Ground
menu.
2.Select the desired menu by pressing
Audio (L/R) the Remote left/right button on the unit
Outputs
to choose BRIGHTNESS-CONTRAST-
HUE-SATURATION-LANGUAGE-
SOURCE-RESET-EXIT. Press the
Video 1 Input
Remote MENU button to enter into the
control menu.
Video 2 Input
3.Adjust the current settings with the
left/right button on the unit, then press
the MENU button on unit to achieve
the desired settings and return to the
VGA
upper level of the menus.
Notice: in different mode menu is slightly
different, the actual shall prevail.

SPECIFICATIONS

HDMI
Type :TFT LCD
PiXS:1366x(R.G.B)x768
Display format: 16:9
System :PAL/NTSC
Dual Video Inputs
HDMI Input
VGA Input
Power Supply : DC 12V
Power consumption : ≤ 6 W
Operation temperature : 5℃～55℃
Storage temperature : -10℃～75℃
Model:
PLVW125U
REMOTE
Power switch
HDMI/RCA/VGA switch
Analog increase
MODE
Back of the remote
Battery tank
Battery
Transparent Slice
