SERVICE and PARTS MANUAL

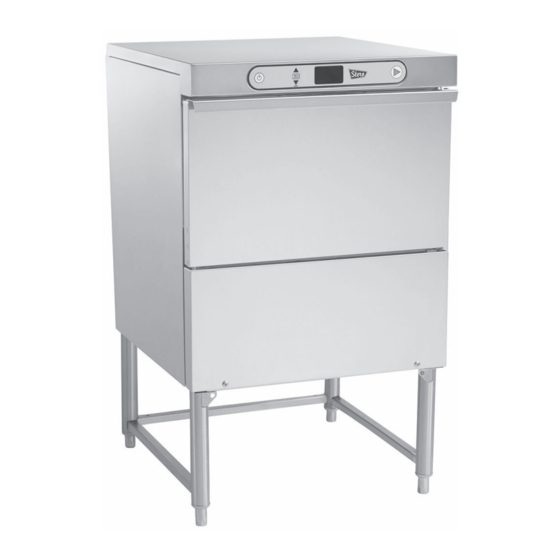

SG, SU-L, SU-H DISHWASHERS
SG
SU-L
SU-H
F45577 (1215)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG and is the answer not in the manual?

Questions and answers

Gnanaprakash
May 30, 2025

Electrical input

User image 6839e32d40203
0
1 comments:
Mr. Anderson
May 30, 2025

The electrical input specification for the STERO SG dishwasher includes:

- 120 VAC to terminal 1T
- 24 VAC to the Power Supply Board for power-up diagnostics

Additionally, the SUMP and BOOSTER HEATER TEST SPECIFICATIONS list the following:

- 120 V: 10.1–11.8 Amps, 9.6–11.2 Ω
- 208 V: 5.9–6.8 Amps, 28.9–33.5 Ω
- 240 V: 6.8–7.9 Amps

These values should match the machine data plate when calling for heat.

This answer is automatically generated

0
